Retainer, Engine Rear Oil Seal
PNC 11381G
Tool / Engine / Fuel

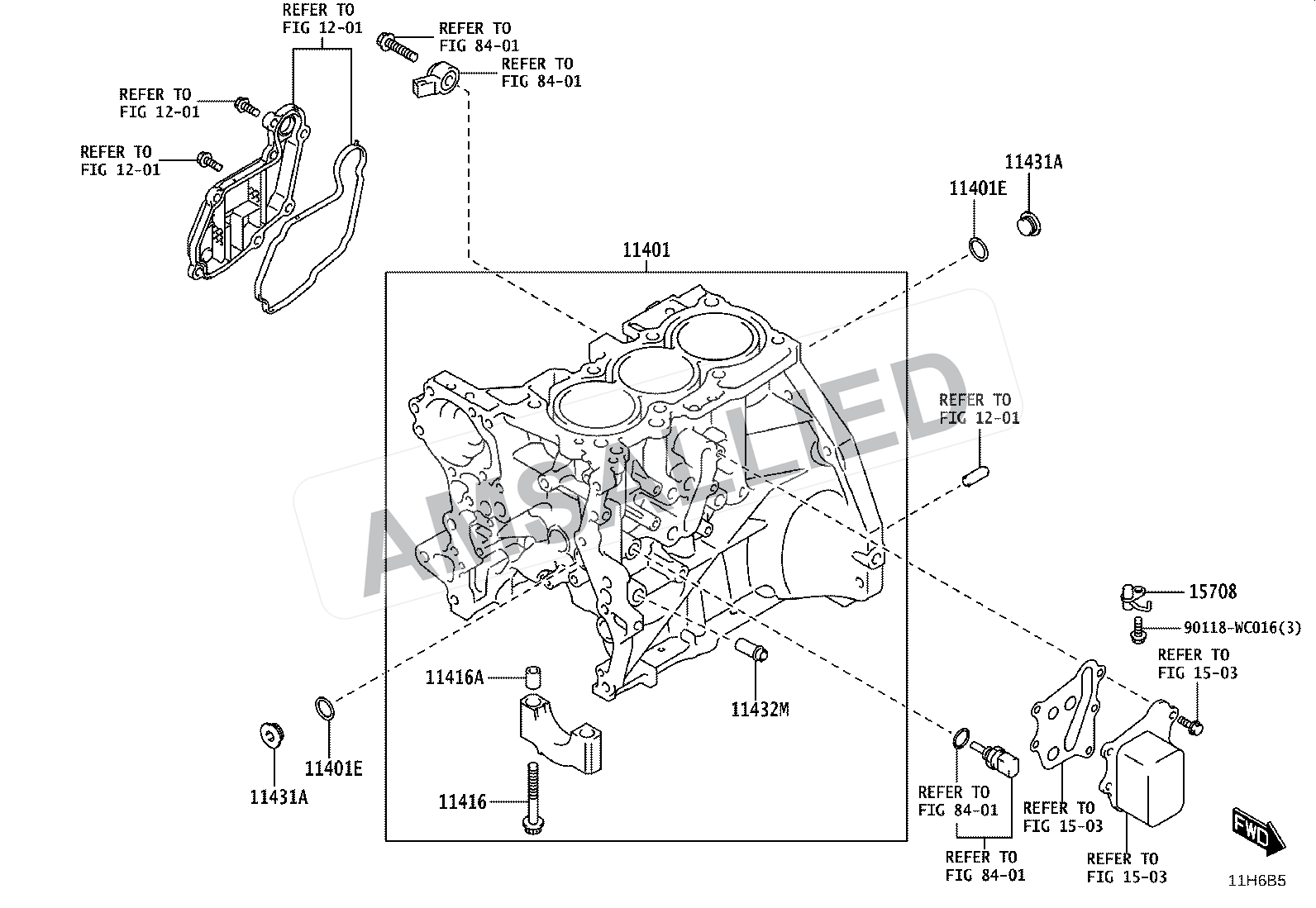

Figure 1105 · Cylinder Block
25 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
25 partsBlock Sub-assy, Cylinder
PNC 11401
Block Sub-assy, Cylinder
PNC 11401
Pan Sub-assy, Oil
PNC 12101
Pan Sub-assy, Oil
PNC 12101
Plate, Oil Pan Baffle, No.1
PNC 12121
Plate, Oil Pan Baffle, No.1
PNC 12121
Nozzle Sub-assy, Oil, No.1
PNC 15708
Pin, Ring(for Crankshaft Bearing Cap Set)
PNC 11416A
Gasket(for Oil Pan Drain Plug)
PNC 12101B
Plug, Tight, No.1(for Cylinder Block)
PNC 11431A
Seal, Engine Rear Oil
PNC 11401L
Pin, Straight(for Oil Pan)
PNC 11434Y
Sensor, Crank Position
PNC 11401G
Gasket(for Cylinder Block Plug)
PNC 11401E
Bolt(for Crankshaft Bearing Cap Set)
PNC 11416
Plug(for Oil Pan Drain)
PNC 12101A
Pin, Straight(for Oil Pan)
PNC 11434Y
Union(for Cylinder Block)
PNC 11432M
Diagram Hardware / Fastener
PNC 90118WC016
Diagram Hardware / Fastener
PNC 90118WC018
Diagram Hardware / Fastener
PNC 90118WC015
Diagram Hardware / Fastener
PNC 90118WC332
Diagram Hardware / Fastener
PNC 90118WC302
Diagram Hardware / Fastener
PNC 90118WC071
