Head Sub-assy, Cylinder
PNC 11101
Tool / Engine / Fuel

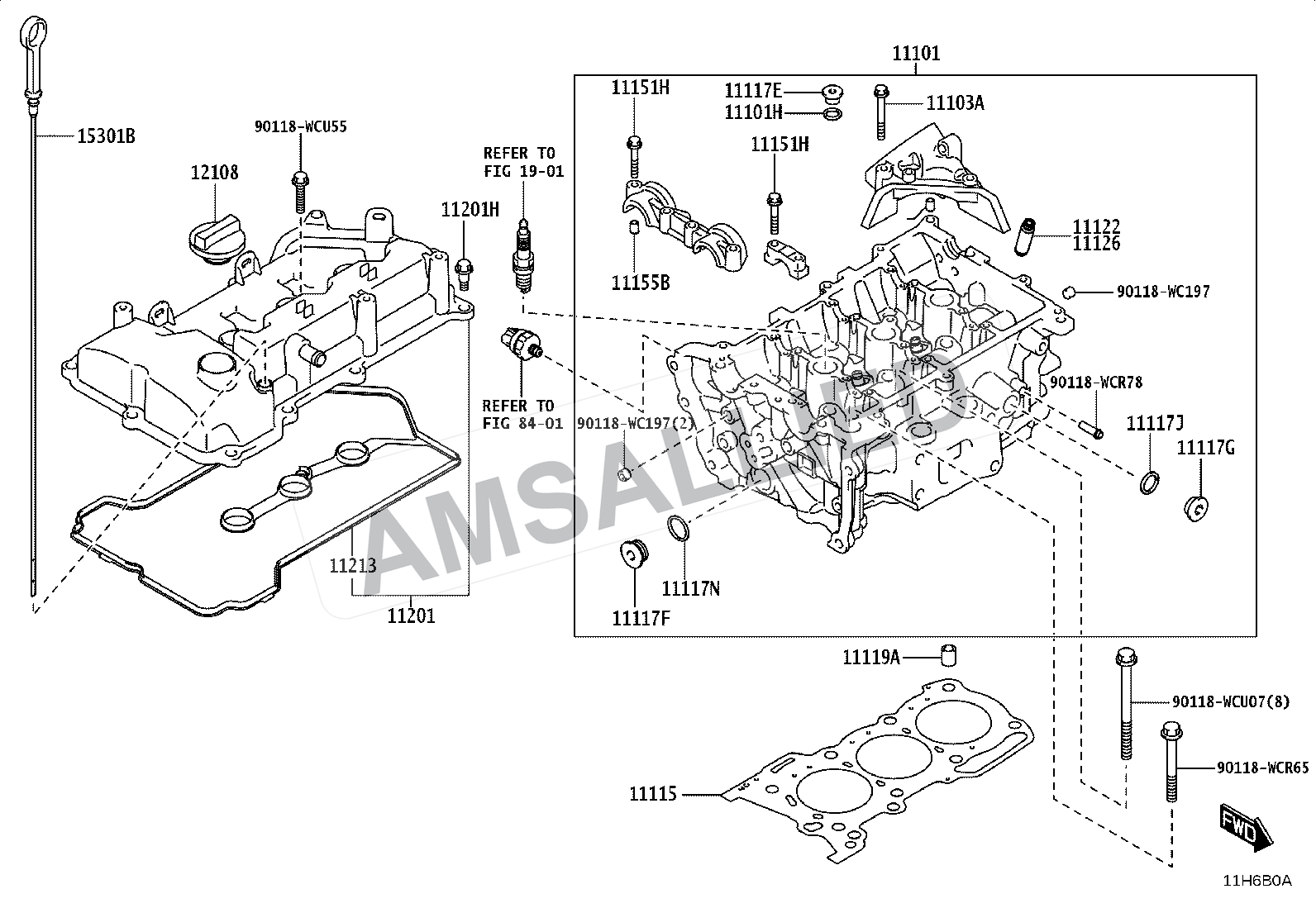

Figure 1104 · Cylinder Head
35 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
35 partsHead Sub-assy, Cylinder
PNC 11101
Head Sub-assy, Cylinder
PNC 11101
Gasket, Cylinder Head
PNC 11115
Gasket, Cylinder Head
PNC 11115
Bush, Intake Valve Guide
PNC 11122, 11126
Cover Sub-assy, Cylinder Head
PNC 11201
Cover Sub-assy, Cylinder Head
PNC 11201
Gasket, Cylinder Head Cover
PNC 11213
Gasket, Cylinder Head Cover
PNC 11213
Cap Sub-assy, Oil Filler
PNC 12108
Cover, Engine, No.1
PNC 12611
Gage Sub-assy, Oil Level
PNC 15301B
Gage Sub-assy, Oil Level
PNC 15301B
Pin, Straight, No.1
PNC 11119A
Pin, Straight, No.1
PNC 11119A
Pin, Ring
PNC 11155B, 11155C
Plug, W/head Straight Screw, No.1
PNC 11117E
Plug, W/head Straight Screw, No.3
PNC 11117G
Bolt(for Camshaft Housing Set)
PNC 11103A
Bolt(for Cylinder Head Cover)
PNC 11201H
Gasket(for Cylinder Head Screw Plug)
PNC 11101H, 11117J
Sensor, Camshaft Position
PNC 11102A
Gasket(for Cylinder Head Screw Plug)
PNC 11117J
Bolt(for Cylinder Head Set)
PNC 11101A
Bolt(for Camshaft Bearing Cap To Housing)
PNC 11151H
Plug, W/head Straight Screw, No.2
PNC 11117F
Gasket(for Cylinder Head Screw Plug No.2)
PNC 11117N
Bolt(for Camshaft Housing Set)
PNC 11103A
Diagram Hardware / Fastener
PNC 90118WCU07
Diagram Hardware / Fastener
PNC 90118WC197
Diagram Hardware / Fastener
PNC 90118WCU55
Diagram Hardware / Fastener
PNC 90118WCR78
Diagram Hardware / Fastener
PNC 90118WCR65
Diagram Hardware / Fastener
PNC 90118WC198
