Figure 8718 · Heating & Air Conditioning - Cooler Piping

32 genuine catalog part numbers · Production from 2023-08

Open interactive figure

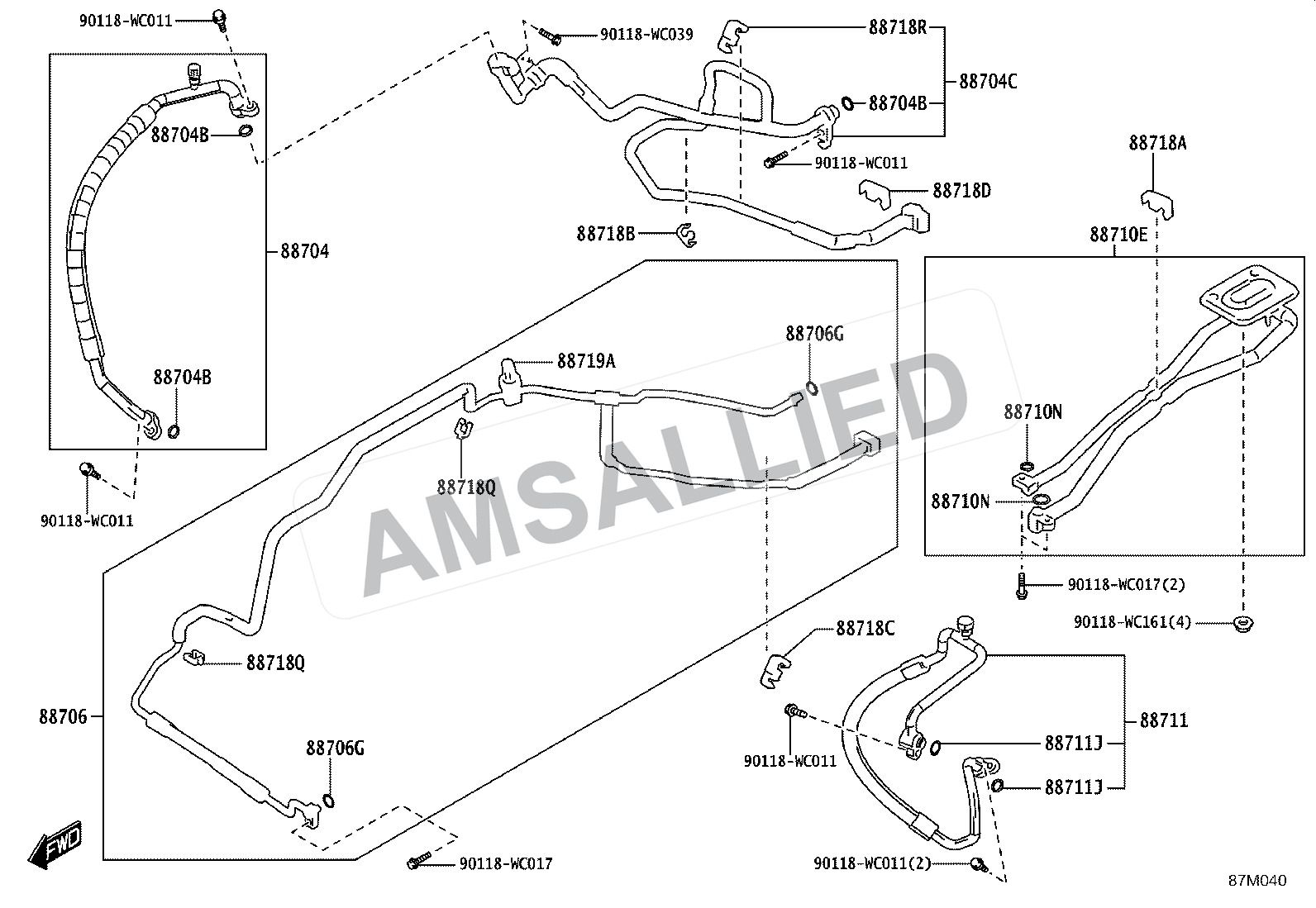

Toyota Rumion Heating & Air Conditioning - Cooler Piping exploded parts diagram, figure 8718
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

32 parts
88704-WC011

Tube & Accessory Assy, Air Conditioner

PNC 88710E

88704-WC012

Tube & Accessory Assy, Air Conditioner, No.2

PNC 88710G

88706-WC007

Pipe, Cooler Refrigerant Liquid, A

PNC 88716A

88711-WC011

Hose, Cooler Refrigerant Discharge, No.1

PNC 88711

88718-WC001

Clamp, No.5(for Cooler Refrigerant Pipe)

PNC 88718E, 88718Q

88718-WC004

Clamp, No.1(for Cooler Refrigerant Pipe)

PNC 88718A, 88718C, 88718R

88718-WC005

Clamp, No.2(for Cooler Refrigerant Pipe)

PNC 88718B

90118-WC633

Ring, O(for Liquid Tube)

PNC 88706G, 88710N, 88710P, 88G16A

90118-WC635

Ring, O(for Suction Hose)

PNC 88704B, 88710N, 88710P

90118-WCE64

Clamp, No.4(for Cooler Refrigerant Pipe)

PNC 88718D
