Register Assy, Air Outlet, No.1
PNC 63610
Electrical

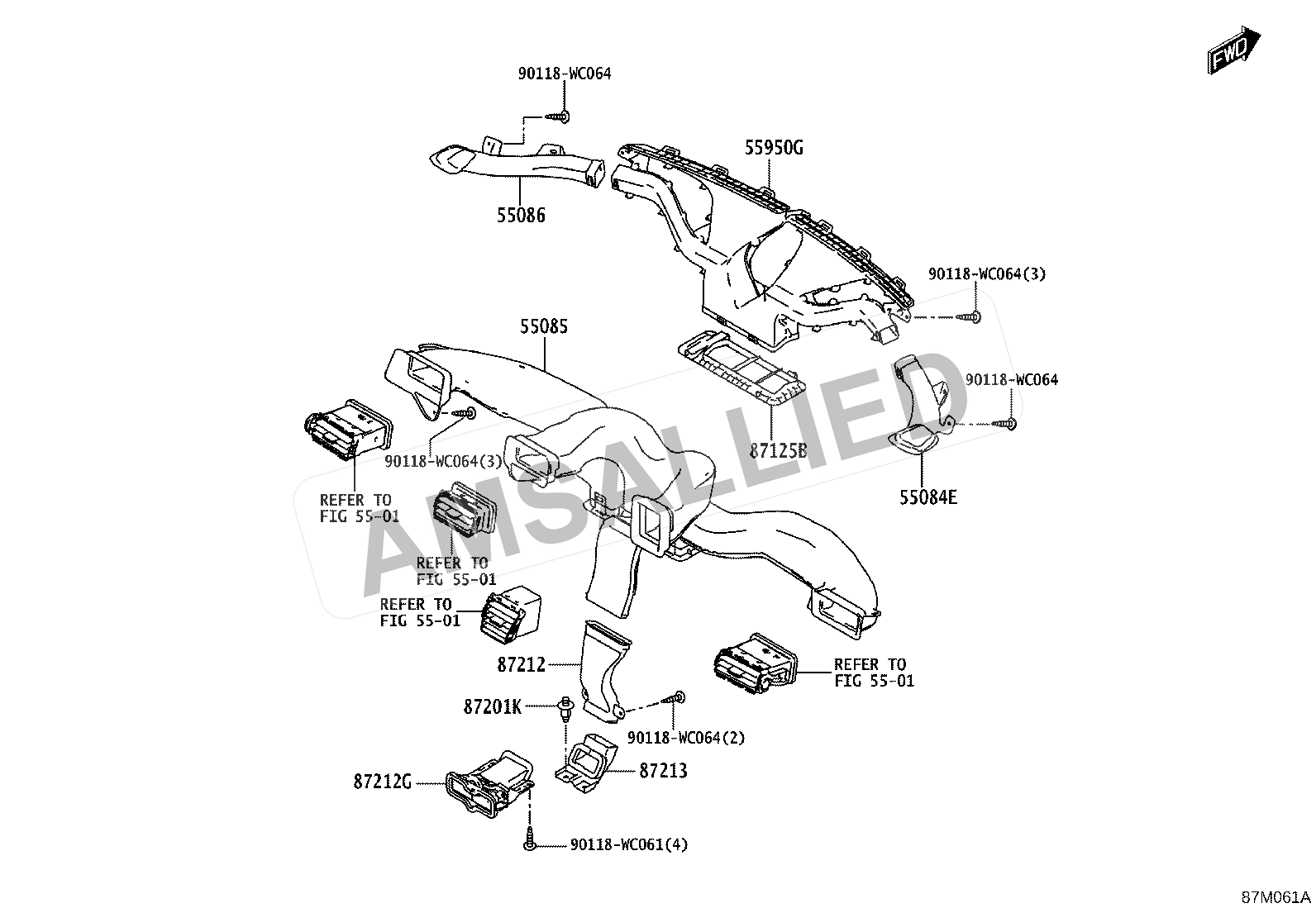

Figure 8715 · Heating & Air Conditioning - Control & Air Duct
32 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
32 partsDuct Sub-assy, Heater To Register, No.2
PNC 55085
Knob, Heater Control, No.3
PNC 55905C
Control Assy, Air Conditioner(manual)
PNC 55900J
Control Assy, Air Conditioner
PNC 55900
Knob, Heater Control
PNC 87123A
Knob, Heater Control
PNC 55905A
Knob, Heater Control, No.2
PNC 55905B
Cable Sub-assy, Defroster Damper Control
PNC 55906A
Cable Sub-assy, Air Inlet Damper Control
PNC 55908A
Cable Sub-assy, Airmix Damper Control
PNC 55909A
Nozzle Assy, Defroster
PNC 55950G
Duct Sub-assy, Heater To Register, No.1
PNC 55084E
Duct Sub-assy, Heater To Register, No.3
PNC 55086
Duct, Air, Rear No.1
PNC 87212
Duct, Air, Rear No.2
PNC 87213
Bezel, Rear Heater Register, No.1
PNC 87289A
Bezel, Rear Heater Register, No.2
PNC 87289B
Duct, Air, Rear No.3
PNC 87212G
Grille, Heater Air Outlet
PNC 87125B
Duct, Air, No.1
PNC 87211
Duct, Air, No.2
PNC 87211A
Switch Assy, Blower Control
PNC 88470G
Thermistor, Cooler (room Temp. Sensor)
PNC 88625Q
Thermistor Assy
PNC 88790B
Clip (for Air Duct)
PNC 87201K
Stay, Heater Control Panel
PNC 87446A
Bulb, Heater Control
PNC 55910B
Diagram Hardware / Fastener
PNC 90118WC061
Diagram Hardware / Fastener
PNC 90118WC064
Diagram Hardware / Fastener
PNC 90118WCE70
Diagram Hardware / Fastener
PNC 90118WCE71
