Figure 8714 · Heating & Air Conditioning - Cooler Unit

91 genuine catalog part numbers · Production from 2023-08

Open interactive figure

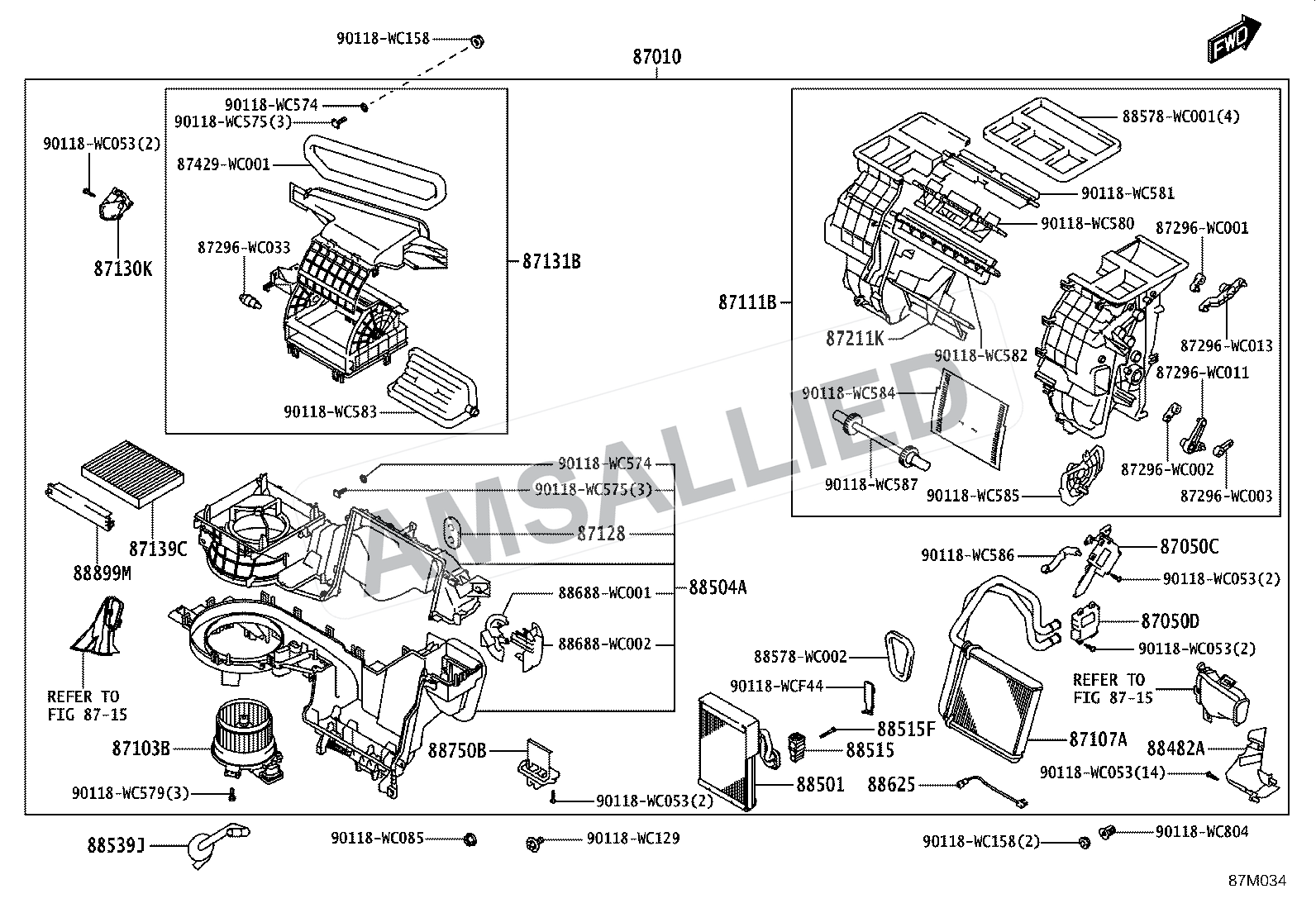

Toyota Rumion Heating & Air Conditioning - Cooler Unit exploded parts diagram, figure 8714
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

91 parts
87106-WC001

Damper Servo Sub-assy, Air Conditioner Radiator, No.1

PNC 87050C

87106-WC002

Damper Servo Sub-assy, Air Conditioner Radiator, No.2

PNC 87050D

87106-WC003

Damper Servo Sub-assy, Blower, No.1

PNC 87130K

88515-WC007

Valve, Rear Cooling Unit Expansion

PNC 88515B

88605-WC001

Harness Sub-assy, Cooler Wiring, No.1

PNC 88605

88706-WC015

Pipe, Cooler Refrigerant Liquid, F

PNC 88716F

88892-WC002

Pipe, Cooler Refrigerant Suction, F

PNC 88717F
