Electrical

Figure 8604 · Antenna

4 genuine catalog part numbers · Production from 2023-08

Open interactive figure

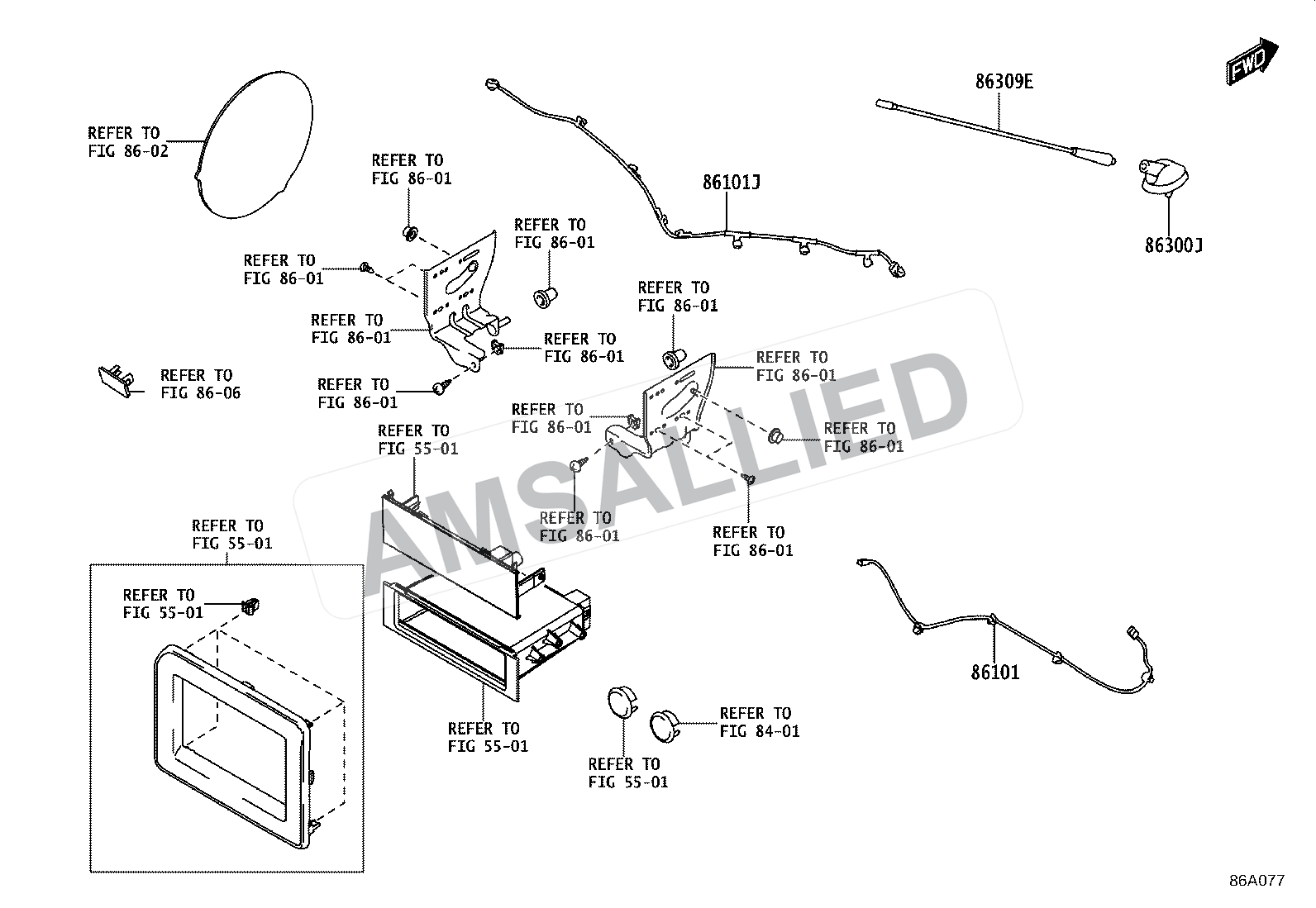

Toyota Rumion Antenna exploded parts diagram, figure 8604 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

4 parts

Cord Sub-assy, Antenna

PNC 86101

Cord Sub-assy, Antenna, No.2

PNC 86101J

Antenna Assy, Roof

PNC 86300J

Pole Sub-assy, Roof Antenna

PNC 86309E
