Figure 8601 · Radio Receiver & Amplifier & Condenser

19 genuine catalog part numbers · Production from 2023-08

Open interactive figure

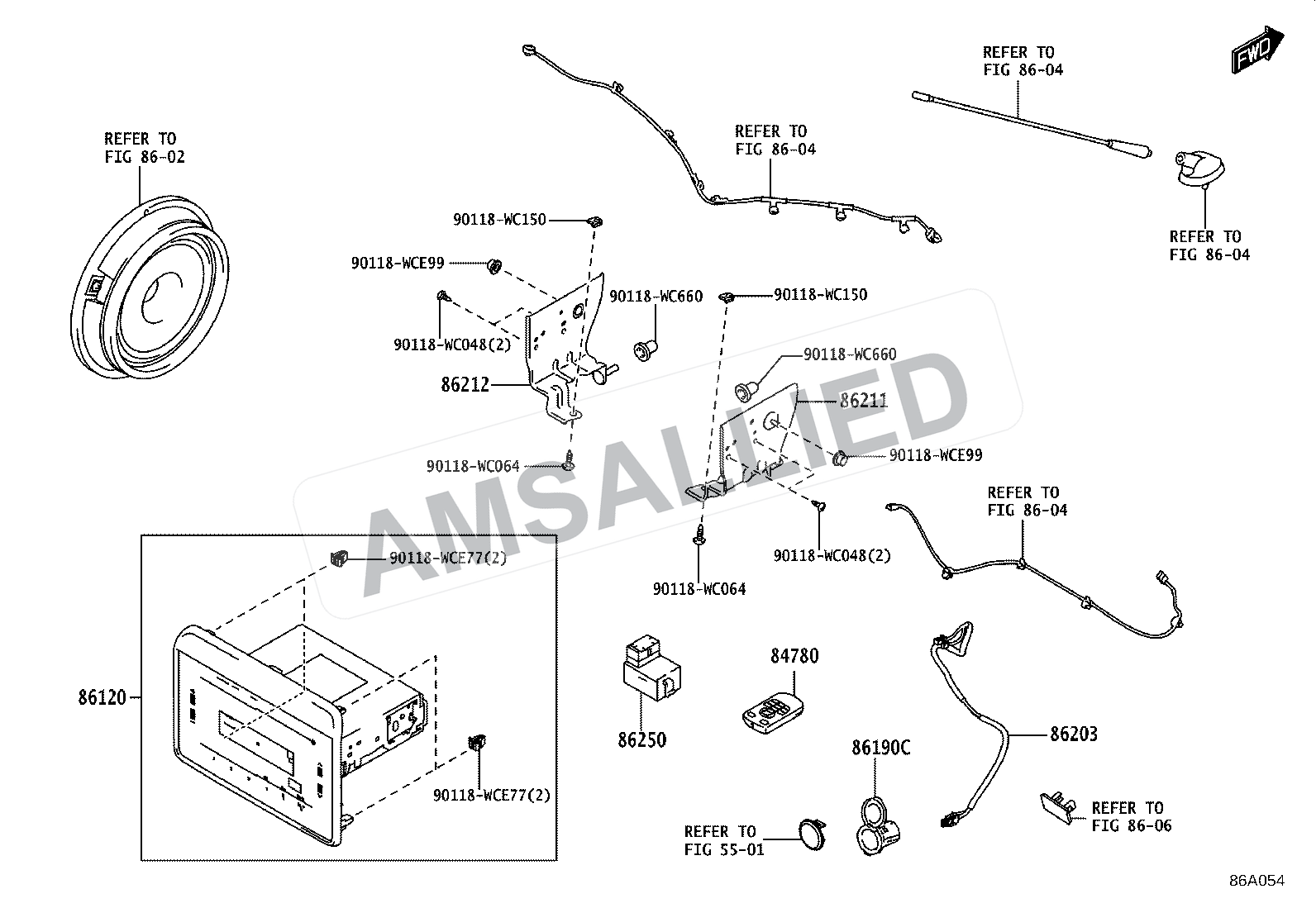

Toyota Rumion Radio Receiver & Amplifier & Condenser exploded parts diagram, figure 8601 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

19 parts

84780-WC002

Switch Assy, Radio Remote Tuning

PNC 84780

86120-WC034

Receiver Assy, Radio

PNC 86120

86190-WC001

Adapter Assy, Stereo Jack, No.1

PNC 86190C

86190-WC004

Adapter Assy, Stereo Jack, No.1

PNC 86190C

86203-WC005

Wire, Radio

PNC 86203

86211-WC006

Bracket, Radio, No.1

PNC 86211

86211-WC007

Bracket, Radio, No.1

PNC 86211

86211-WC008

Bracket, Radio, No.1

PNC 86211

86212-WC006

Bracket, Radio, No.2

PNC 86212

86212-WC007

Bracket, Radio, No.2

PNC 86212

86212-WC008

Bracket, Radio, No.2

PNC 86212

86250-WC003

Microphone Assy, Amplifier

PNC 86250

90118-WCE77

Diagram Hardware / Fastener

PNC 90118WCE77

90118-WC048

Diagram Hardware / Fastener

PNC 90118WC048

90118-WC064

Diagram Hardware / Fastener

PNC 90118WC064

90118-WC150

Diagram Hardware / Fastener

PNC 90118WC150

90118-WC660

Diagram Hardware / Fastener

PNC 90118WC660

90118-WCE99

Diagram Hardware / Fastener

PNC 90118WCE99

90118-WC056

Diagram Hardware / Fastener

PNC 90118WC056
