Figure 8504 · Rear Washer

7 genuine catalog part numbers · Production from 2023-08

Open interactive figure

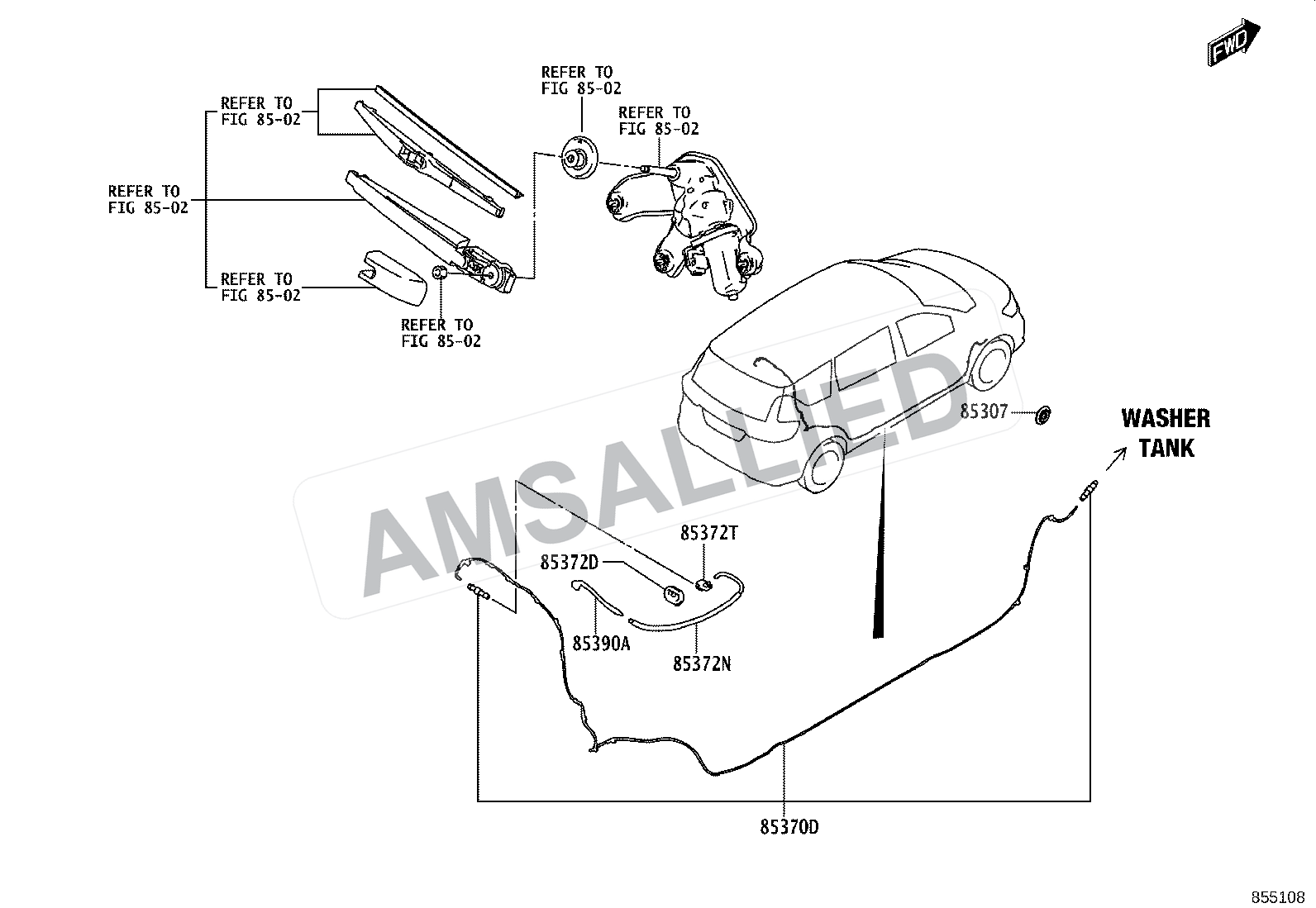

Toyota Rumion Rear Washer exploded parts diagram, figure 8504 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

7 parts

Motor Assy, Rear Washer

PNC 85310R

Grommet Sub-assy, Washer

PNC 85307

Grommet, Rear Washer Hose

PNC 85372D

Grommet, Washer

PNC 85372T

Nozzle & Hose Assy, Rr Washer

PNC 85390A

Hose, Rear Washer (from Joint To Joint), No.1

PNC 85372N

Hose Assy, Rear Washer, No.1

PNC 85370D
