Electrical

Figure 8503 · Windshield Washer

15 genuine catalog part numbers · Production from 2023-08

Open interactive figure

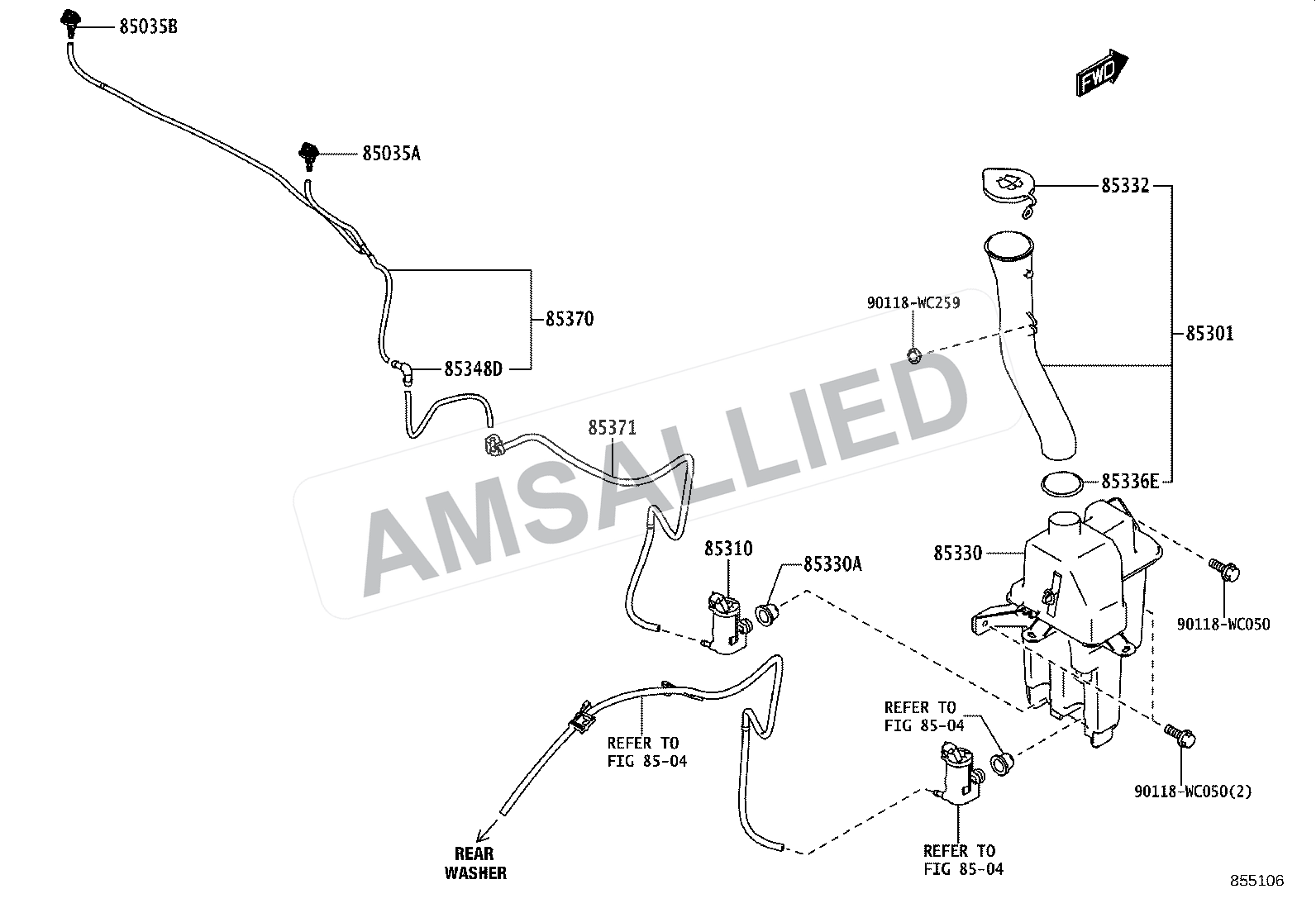

Toyota Rumion Windshield Washer exploded parts diagram, figure 8503
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

15 parts
85330-WC010

Motor And Pump Assy, Windshield Washer

PNC 85310

85336-WC005

Packing, Windshield Washer Inlet Hose

PNC 85336E

85355-WC006

Joint, Windshield Washer Elbow, No.1

PNC 85348D

90118-WCF07

Hose, Windshield Washer (from Motor To Joint)

PNC 85371
