Electrical

Figure 8502 · Rear Wiper

6 genuine catalog part numbers · Production from 2023-08

Open interactive figure

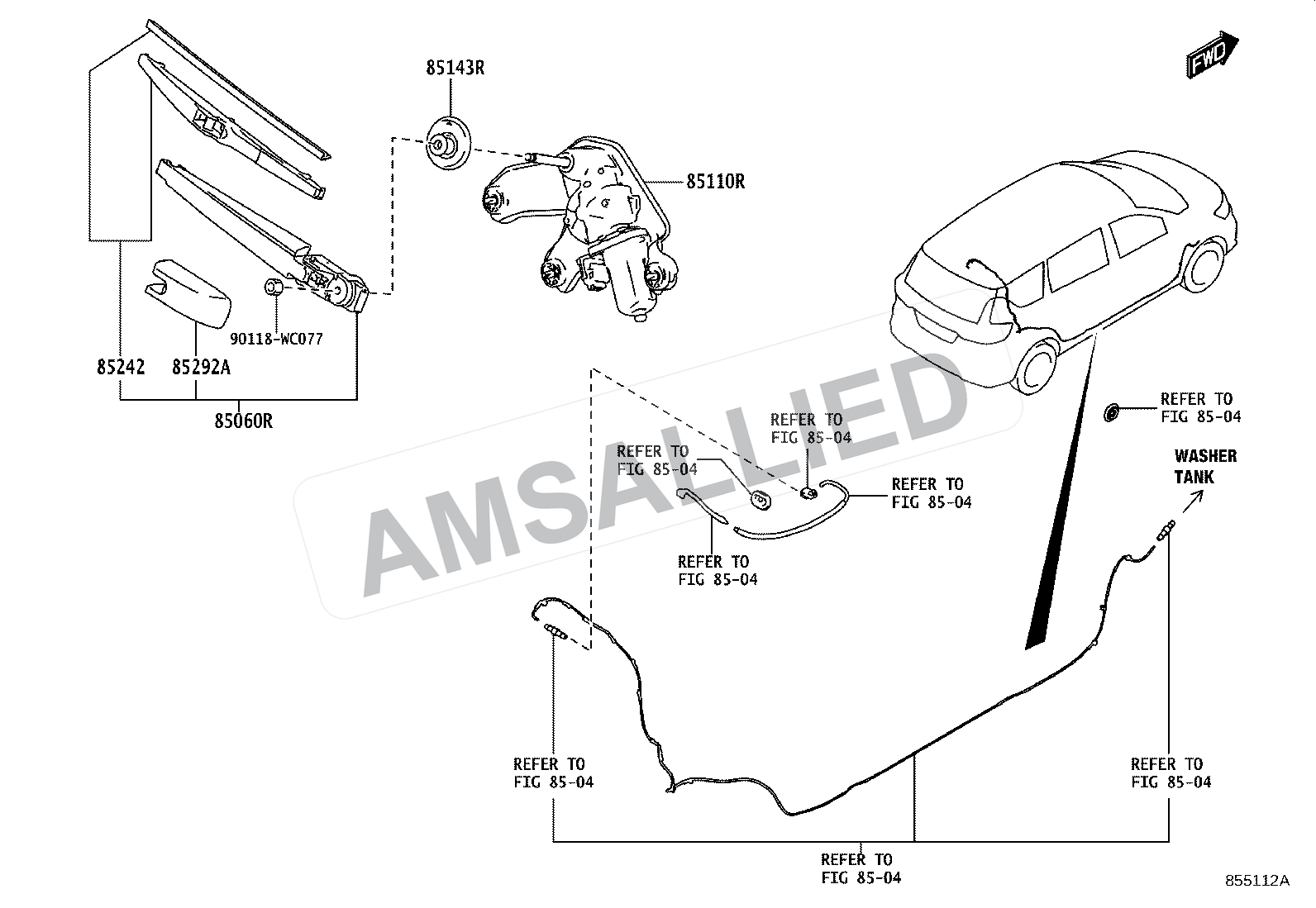

Toyota Rumion Rear Wiper exploded parts diagram, figure 8502 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

6 parts

Motor Assy, Rear Wiper

PNC 85110R

Grommet, Rear Wiper Motor

PNC 85143R

Blade, Rr Wiper

PNC 85242

Arm And Blade Assy, Rear Wiper

PNC 85060R

Cap, Rear Wiper Arm Head

PNC 85292A

Diagram Hardware / Fastener

PNC 90118WC077
