Figure 8501 · Windshield Wiper

9 genuine catalog part numbers · Production from 2023-08

Open interactive figure

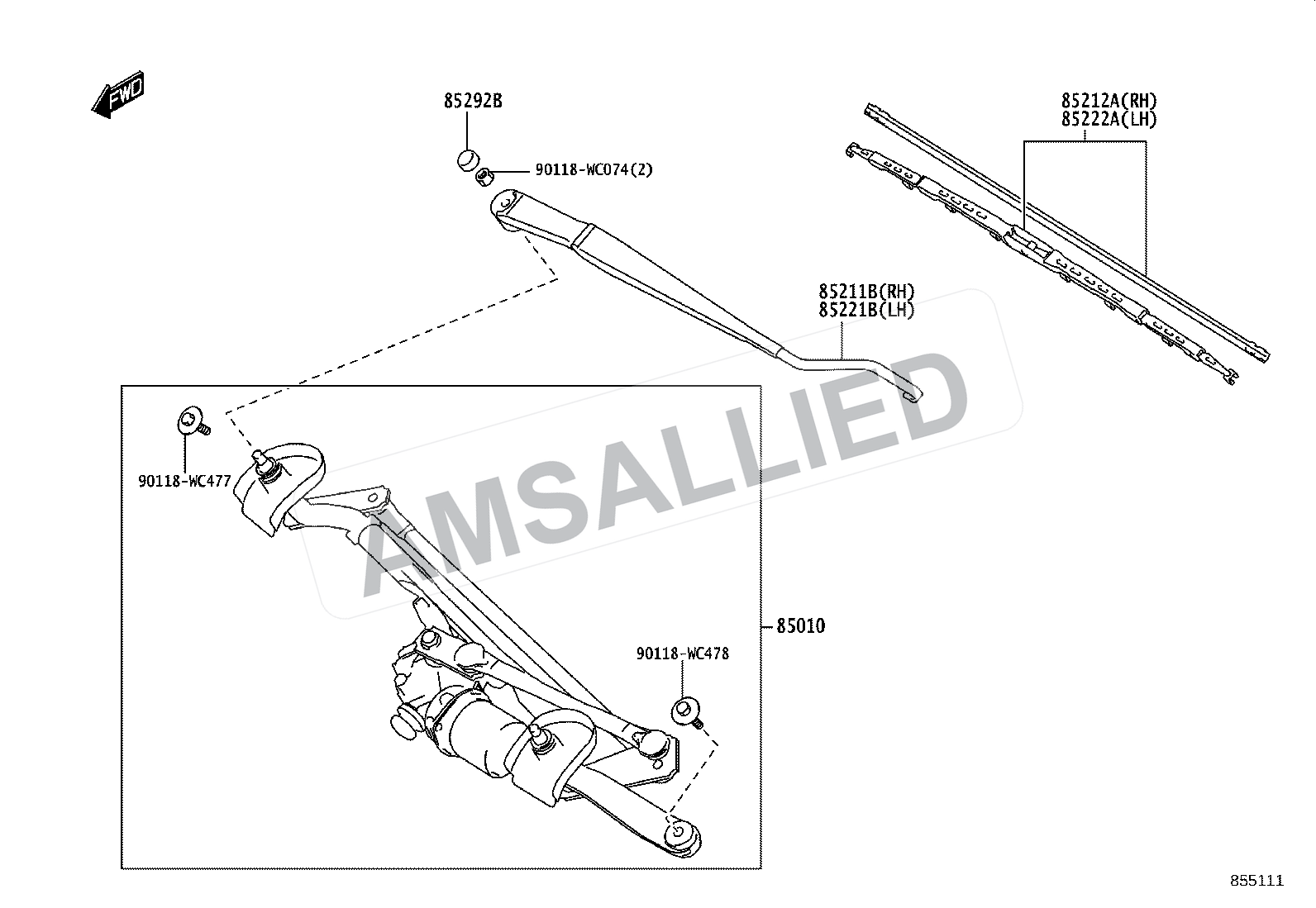

Toyota Rumion Windshield Wiper exploded parts diagram, figure 8501 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

9 parts

Motor & Link Assy, Fr Wiper

PNC 85010

Arm, Front Wiper, Rh

PNC 85211B

Blade, Fr Wiper, Rh

PNC 85212A

Blade, Fr Wiper, Lh

PNC 85222A

Arm, Front Wiper, Lh

PNC 85221B

Cap, Front Wiper Arm Head

PNC 85292B

Diagram Hardware / Fastener

PNC 90118WC074

Diagram Hardware / Fastener

PNC 90118WC478

Diagram Hardware / Fastener

PNC 90118WC477
