Figure 8404 · Electronic Fuel Injection System

10 genuine catalog part numbers · Production from 2023-08

Open interactive figure

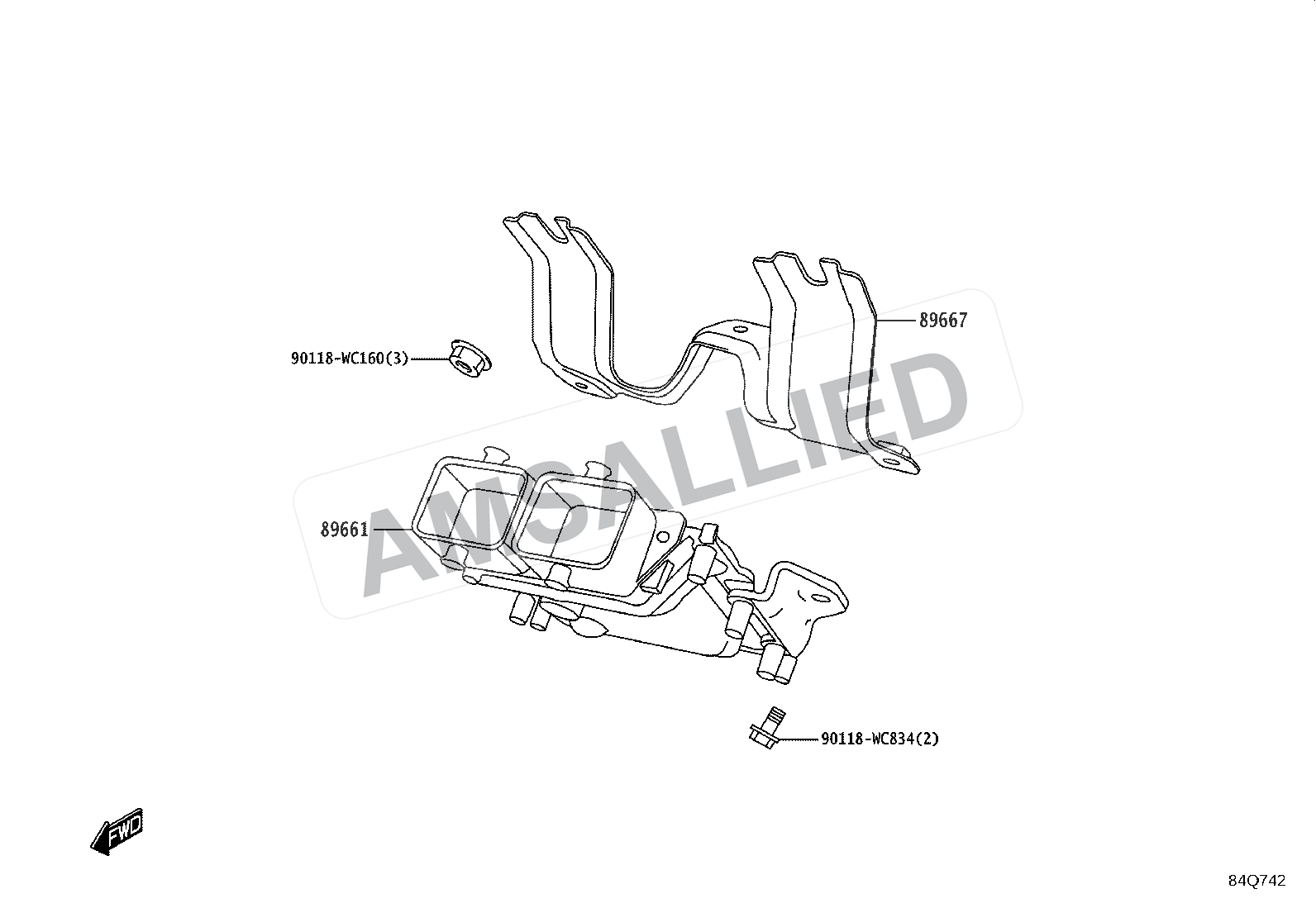

Toyota Rumion Electronic Fuel Injection System exploded parts diagram, figure 8404 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

10 parts

Computer, Engine Control

PNC 89661

Computer, Engine Control

PNC 89661

Computer, Engine Control

PNC 89661

Computer Assy, Engine Control

PNC 89660

Bracket, Engine Control Computer, No.1

PNC 89667E

Bracket, Engine Control Computer

PNC 89667

Bracket, Engine Control Computer

PNC 89667

Diagram Hardware / Fastener

PNC 90118WC834

Diagram Hardware / Fastener

PNC 90118WC160

Diagram Hardware / Fastener

PNC 90118WC050
