Electrical

Figure 8202 · Wiring & Clamp

90 genuine catalog part numbers · Production from 2023-08

Open interactive figure

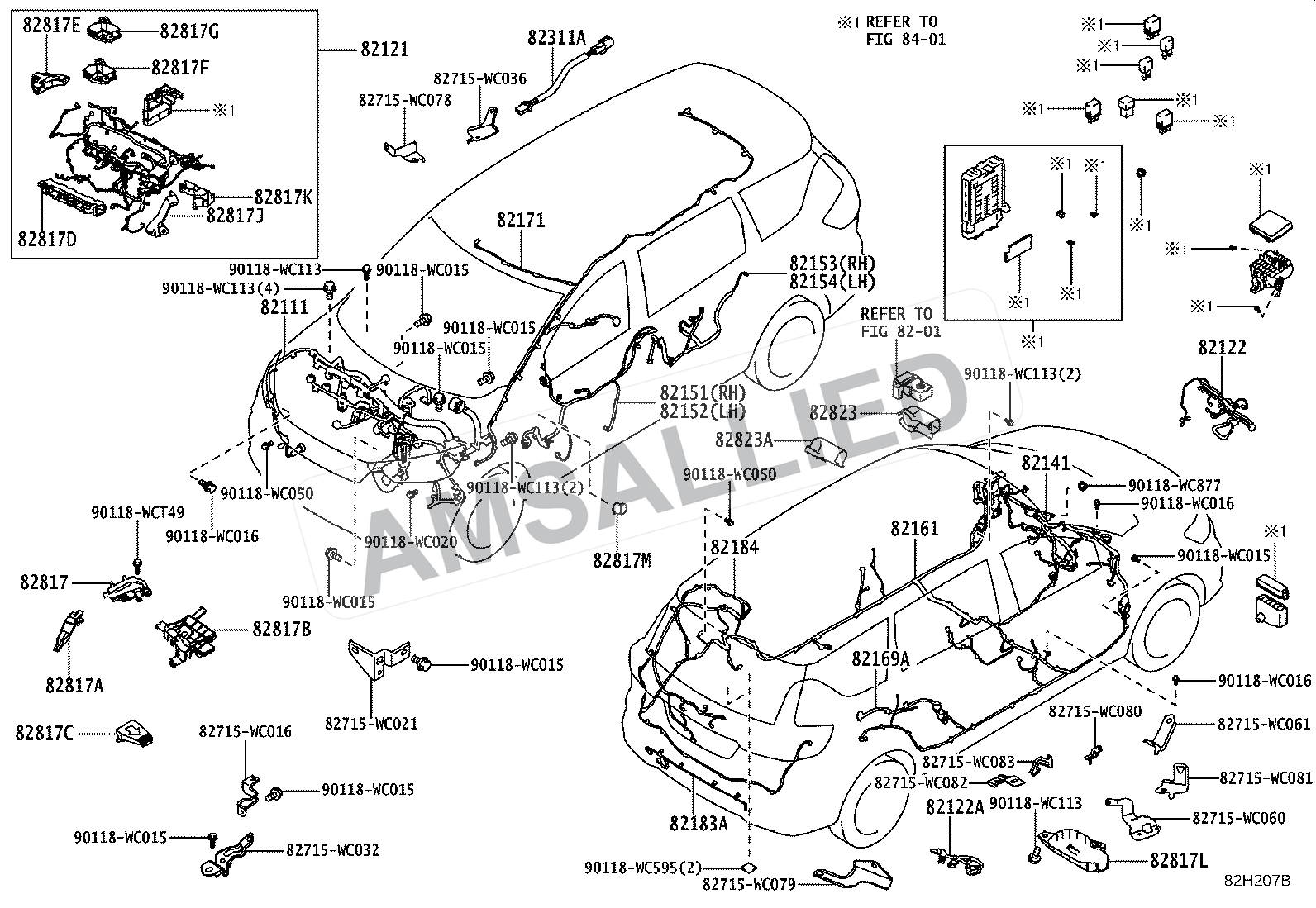

Toyota Rumion Wiring & Clamp exploded parts diagram, figure 8202 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

90 parts

67923-WC001

Protector, Wiring Harness, No.12

PNC 82817M

82111-WC112

Wire, Engine Room Main

PNC 82111

82111-WC113

Wire, Engine Room Main

PNC 82111

82111-WC114

Wire, Engine Room Main

PNC 82111

82111-WC115

Wire, Engine Room Main

PNC 82111

82111-WC116

Wire, Engine Room Main

PNC 82111

82111-WC117

Wire, Engine Room Main

PNC 82111

82111-WC118

Wire, Engine Room Main

PNC 82111

82111-WC119

Wire, Engine Room Main

PNC 82111

82121-WC006

Wire, Engine, No.2

PNC 82122

82121-WC012

Wire, Engine

PNC 82121

82121-WC013

Wire, Engine

PNC 82121

82121-WC014

Wire, Engine

PNC 82121

82123-WC030

Wire, Engine, No.2

PNC 82122A

82123-WC050

Wire Assy, Battery To Cowl Top Side

PNC 82280A

82123-WC051

Wire, Engine, No.3

PNC 82123A

82123-WC052

Wire Assy, Battery To Cowl Top Side

PNC 82280A

82123-WC053

Wire, Engine, No.3

PNC 82123

82123-WC054

Wire, Engine, No.3

PNC 82123

82141-WC098

Wire, Instrument Panel

PNC 82141

82141-WC099

Wire, Instrument Panel

PNC 82141

82141-WC100

Wire, Instrument Panel

PNC 82141

82141-WC101

Wire, Instrument Panel

PNC 82141

82141-WC102

Wire, Instrument Panel

PNC 82141

82141-WC103

Wire, Instrument Panel

PNC 82141

82141-WC104

Wire, Instrument Panel

PNC 82141

82151-WC048

Wire, Front Door, Rh

PNC 82151

82151-WC049

Wire, Front Door, Rh

PNC 82151

82151-WC050

Wire, Front Door, Rh

PNC 82151

82151-WC051

Wire, Front Door, Rh

PNC 82151

82152-WC047

Wire, Front Door, Lh

PNC 82152

82152-WC048

Wire, Front Door, Lh

PNC 82152

82152-WC049

Wire, Front Door, Lh

PNC 82152

82153-WC020

Wire, Rear Door, No.1

PNC 82153

82153-WC021

Wire, Rear Door, No.1

PNC 82153

82153-WC022

Wire, Rear Door, No.1

PNC 82153

82153-WC023

Wire, Rear Door, No.2

PNC 82154

82153-WC024

Wire, Rear Door, No.2

PNC 82154

82153-WC025

Wire, Rear Door, No.2

PNC 82154

82161-WC143

Wire, Floor

PNC 82161

82161-WC144

Wire, Floor

PNC 82161

82161-WC145

Wire, Floor

PNC 82161

82161-WC146

Wire, Floor

PNC 82161

82161-WC147

Wire, Floor

PNC 82161

82169-WC004

Wire, Floor, No.6

PNC 82169A

82171-WC012

Wire, Roof, No.1

PNC 82171

82171-WC013

Wire, Roof, No.1

PNC 82171

82183-WC006

Wire, Rear Bumper

PNC 82183A

82184-WC036

Wire, Back Door, No.1

PNC 82184

82184-WC038

Wire, Back Door, No.1

PNC 82184

82184-WC039

Wire, Back Door, No.1

PNC 82184

82817-WC010

Protector, Wiring Harness, No.1

PNC 82817

82817-WC012

Protector, Wiring Harness, No.7

PNC 82817F

82817-WC013

Protector, Wiring Harness, No.4

PNC 82817C

82817-WC015

Protector, Wiring Harness, No.3

PNC 82817B

82817-WC019

Protector, Wiring Harness, No.5

PNC 82817D

82817-WC024

Protector, Wiring Harness, No.6

PNC 82817E

82817-WC025

Protector, Wiring Harness, No.10

PNC 82817K

82817-WC039

Protector, Wiring Harness, No.2

PNC 82817A

82817-WC049

Protector, Wiring Harness, No.11

PNC 82817L

82817-WC050

Protector, Wiring Harness, No.9

PNC 82817J

82817-WC051

Protector, Wiring Harness, No.8

PNC 82817G

82823-WC001

Cap, Terminal, No.1

PNC 82823

82823-WC002

Cap, Terminal, No.2

PNC 82823A

90118-WCF00

Wire, Air Conditioner

PNC 82311A

90118-WC015

Diagram Hardware / Fastener

PNC 90118WC015

82715-WC032

Diagram Hardware / Fastener

PNC 82715WC032

82715-WC016

Diagram Hardware / Fastener

PNC 82715WC016

82715-WC021

Diagram Hardware / Fastener

PNC 82715WC021

90118-WC113

Diagram Hardware / Fastener

PNC 90118WC113

82715-WC036

Diagram Hardware / Fastener

PNC 82715WC036

82715-WC078

Diagram Hardware / Fastener

PNC 82715WC078

90118-WC016

Diagram Hardware / Fastener

PNC 90118WC016

90118-WC050

Diagram Hardware / Fastener

PNC 90118WC050

90118-WC020

Diagram Hardware / Fastener

PNC 90118WC020

90118-WCT49

Diagram Hardware / Fastener

PNC 90118WCT49

90118-WC595

Diagram Hardware / Fastener

PNC 90118WC595

82715-WC061

Diagram Hardware / Fastener

PNC 82715WC061

82715-WC060

Diagram Hardware / Fastener

PNC 82715WC060

90118-WC877

Diagram Hardware / Fastener

PNC 90118WC877

82715-WC080

Diagram Hardware / Fastener

PNC 82715WC080

82715-WC081

Diagram Hardware / Fastener

PNC 82715WC081

82715-WC082

Diagram Hardware / Fastener

PNC 82715WC082

82715-WC083

Diagram Hardware / Fastener

PNC 82715WC083

82715-WC079

Diagram Hardware / Fastener

PNC 82715WC079

90118-WC077

Diagram Hardware / Fastener

PNC 90118WC077

82715-WC020

Diagram Hardware / Fastener

PNC 82715WC020

82715-WC077

Diagram Hardware / Fastener

PNC 82715WC077

90118-WC021

Diagram Hardware / Fastener

PNC 90118WC021

90118-WC112

Diagram Hardware / Fastener

PNC 90118WC112
