Electrical

Figure 8201 · Battery & Battery Cable

11 genuine catalog part numbers · Production from 2023-08

Open interactive figure

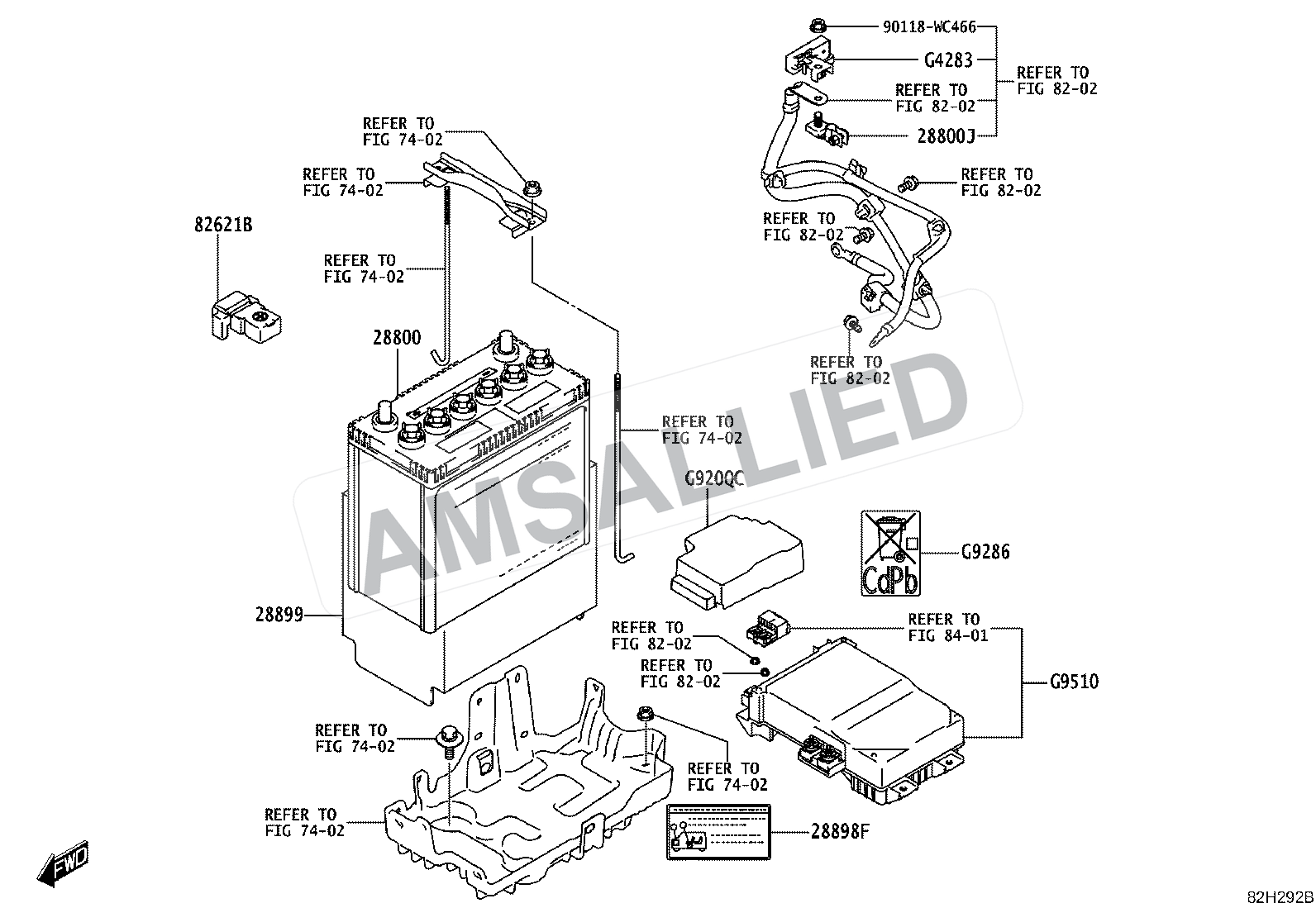

Toyota Rumion Battery & Battery Cable exploded parts diagram, figure 8201 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

11 parts

Battery

PNC 28800

Label, Battery Information

PNC 28898F

Insulator, Battery

PNC 28899

Cover, Fusible Link

PNC 82621B

Cover, Fusible Link

PNC 82621B

Terminal, Battery Negative

PNC 28800J

Sensor, Battery Current

PNC G4283

Cover, Battery Pack

PNC G920QC

Label, Hybrid Battery Caution, No.2

PNC G9286

Battery Assy, Hv Supply

PNC G9510

Diagram Hardware / Fastener

PNC 90118WC466
