Figure 8111 · Rear Combination Lamp

13 genuine catalog part numbers · Production from 2023-08

Open interactive figure

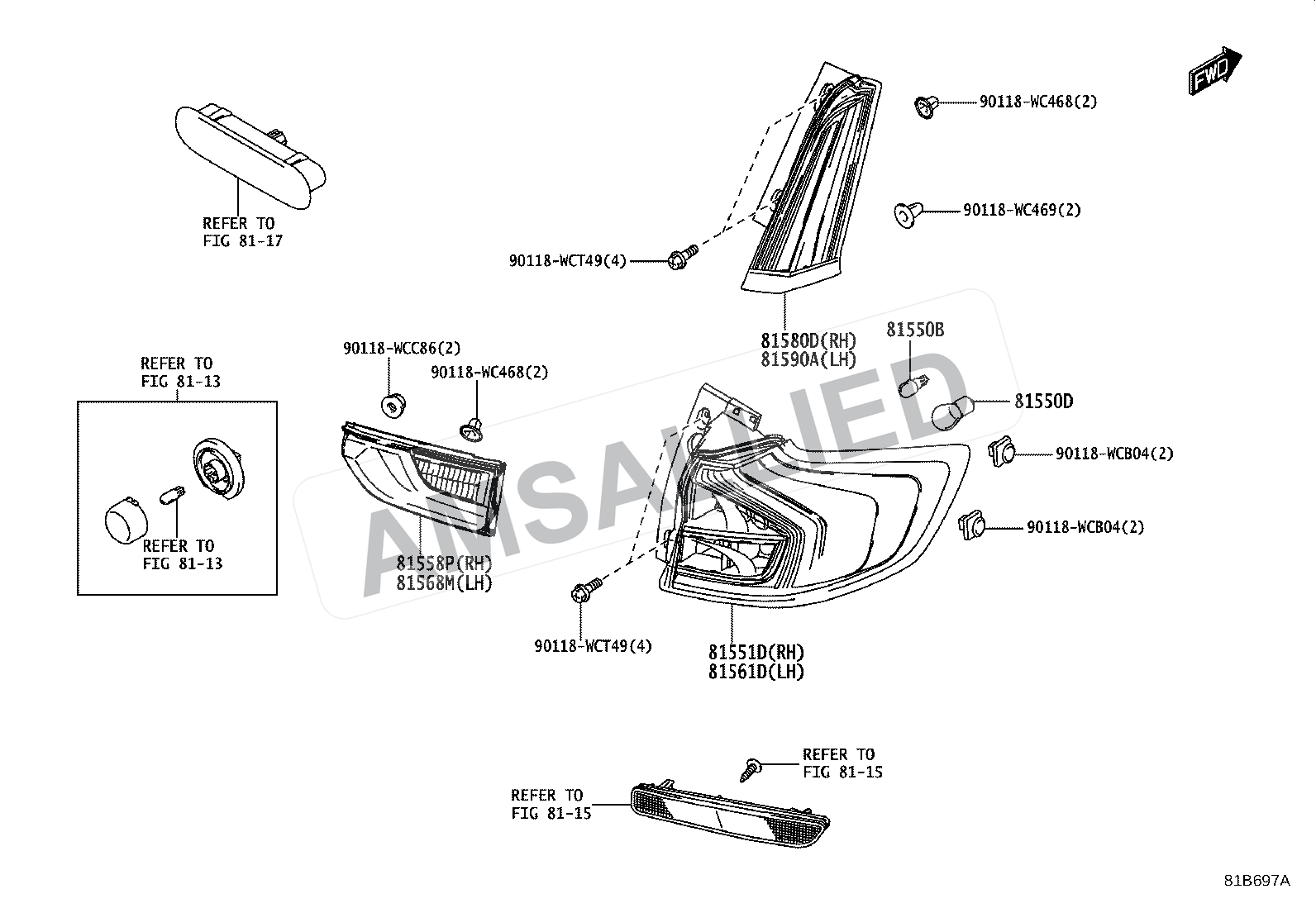

Toyota Rumion Rear Combination Lamp exploded parts diagram, figure 8111 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

13 parts

Garnish No.1, Rear Combination Lamp, Rh

PNC 81558P

Garnish No.1, Rear Combination Lamp, Lh

PNC 81568M

Lens & Body, Rear Combination Lamp, Rh

PNC 81551D

Lens & Body, Rear Combination Lamp, Lh

PNC 81561D

Lamp Assy, Rear, Rh

PNC 81580D

Lamp Assy, Rear, Lh

PNC 81590A

Bulb(for Rear Combination Lamp)

PNC 81550B

Bulb(for Rear Combination Lamp)

PNC 81550D

Diagram Hardware / Fastener

PNC 90118WCC86

Diagram Hardware / Fastener

PNC 90118WC468

Diagram Hardware / Fastener

PNC 90118WCT49

Diagram Hardware / Fastener

PNC 90118WCB04

Diagram Hardware / Fastener

PNC 90118WC469
