Electrical

Figure 8101 · Headlamp

12 genuine catalog part numbers · Production from 2023-08

Open interactive figure

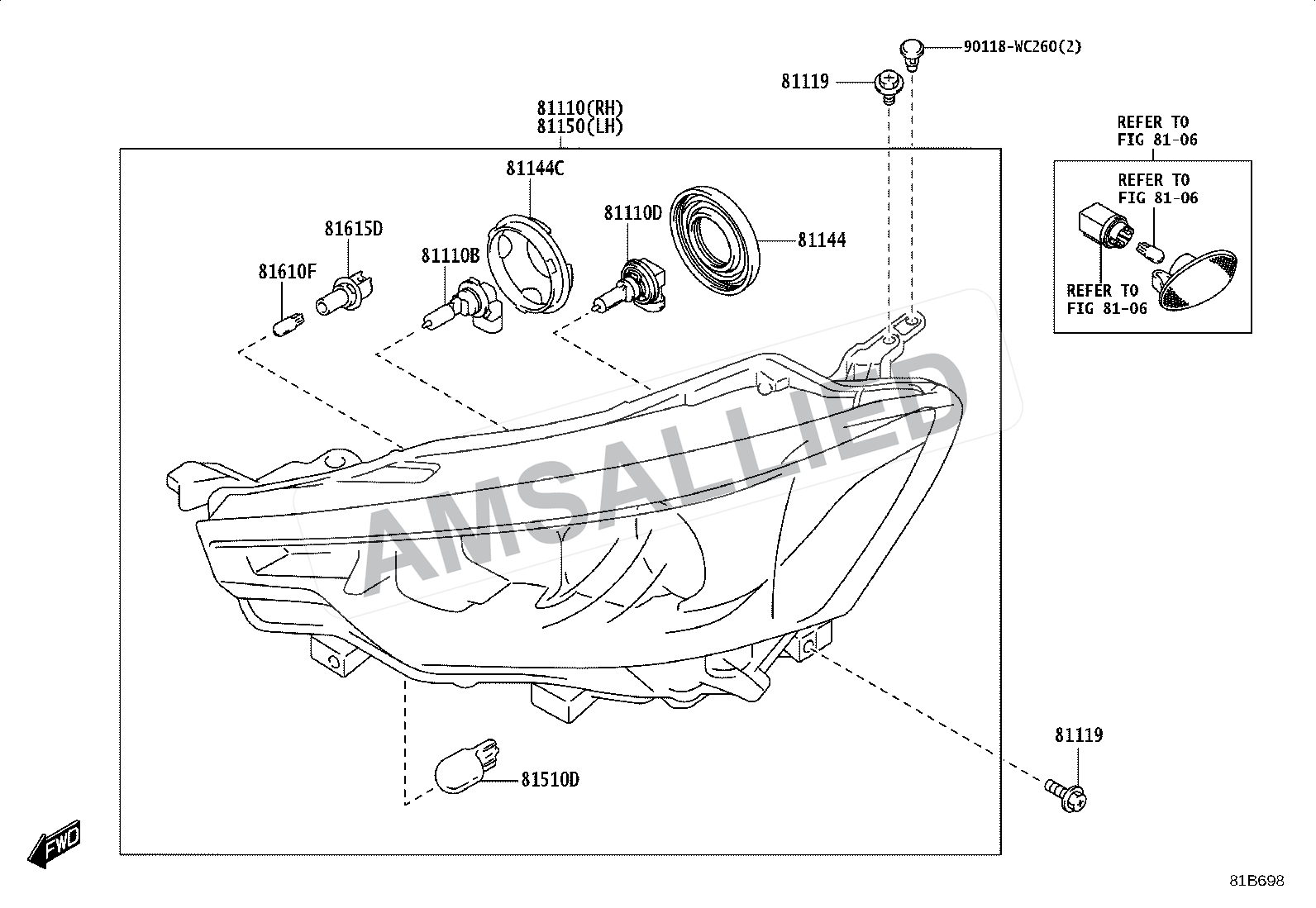

Toyota Rumion Headlamp exploded parts diagram, figure 8101 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

12 parts

Headlamp Assy, Rh

PNC 81110

Socket, Clearance Lamp

PNC 81615D

Cover, Headlamp Socket

PNC 81144C

Headlamp Assy, Lh

PNC 81150

Cover, Headlamp, No.1

PNC 81144

Bulb(for Clearance Lamp)

PNC 81610F

Bulb (for Front Turn Signal Lamp)

PNC 81510D

Bulb(for Headlamp, No.1)

PNC 81110B

Bulb(for Headlamp, No.2)

PNC 81110D

Screw, Headlamp

PNC 81119

Screw, Headlamp

PNC 81119

Diagram Hardware / Fastener

PNC 90118WC260
