Body

Figure 7601 · Mudguard & Spoiler

6 genuine catalog part numbers · Production from 2023-08

Open interactive figure

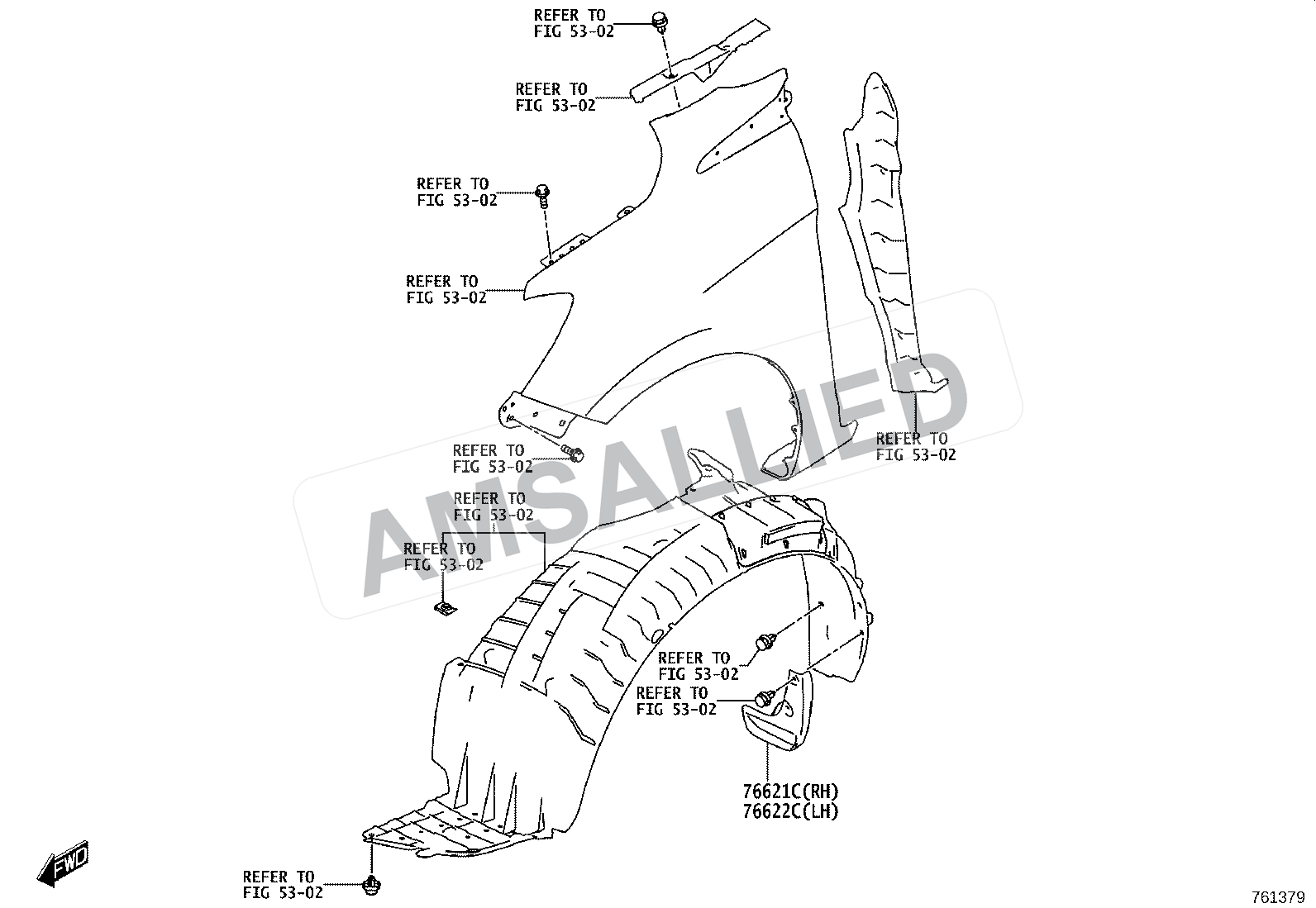

Toyota Rumion Mudguard & Spoiler exploded parts diagram, figure 7601 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

6 parts

Mudguad, Front Fender, Rh

PNC 76621C

Mudguard, Front Fender, Lh

PNC 76622C

Mudguard, Quarter Panel, Rear Rh

PNC 76625D

Mudguard, Quarter Panel, Rear Lh

PNC 76626D

Diagram Hardware / Fastener

PNC 90118WCC85

Diagram Hardware / Fastener

PNC 90118WC867
