Body

Figure 7503 · Side Moulding

13 genuine catalog part numbers · Production from 2023-08

Open interactive figure

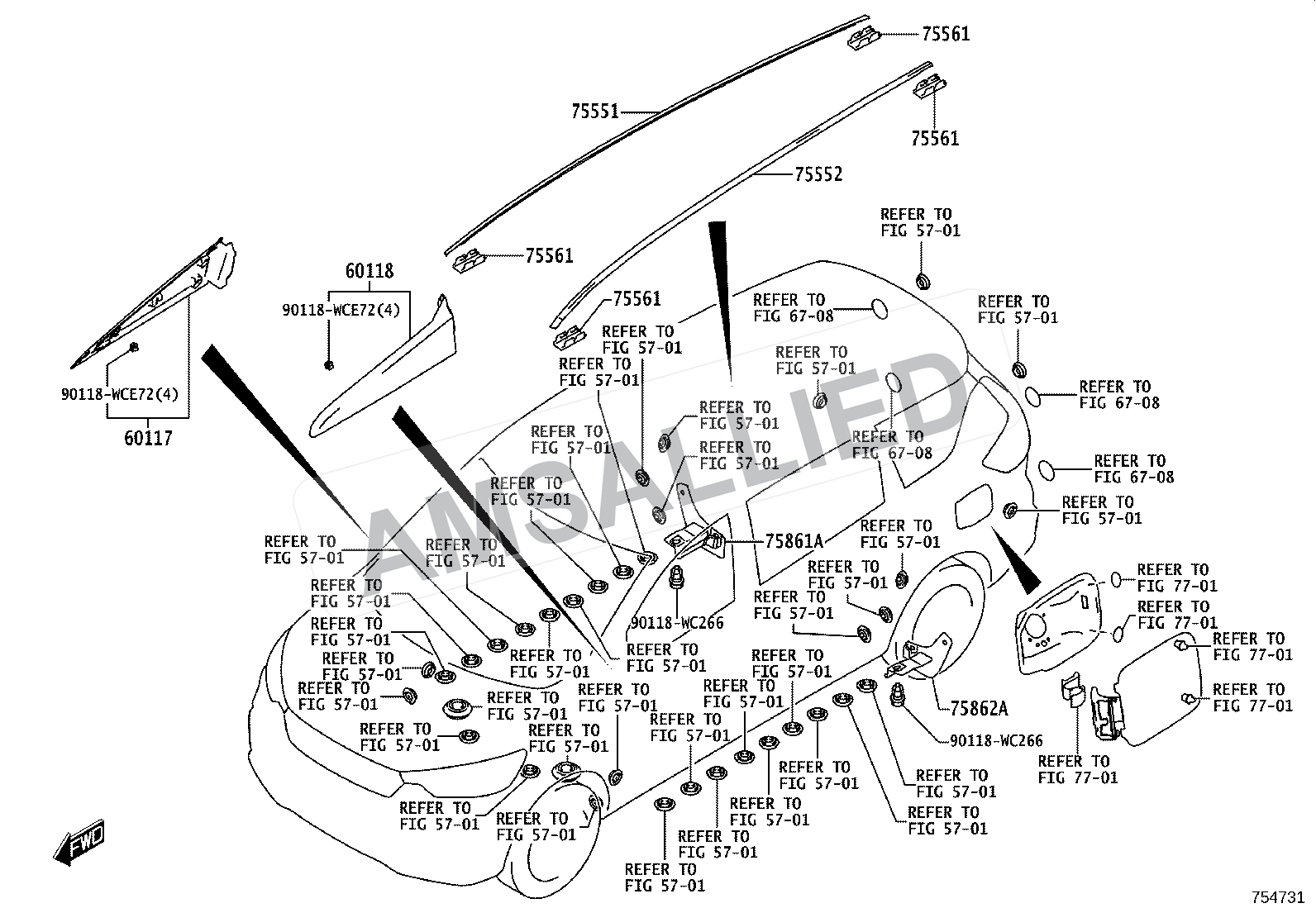

Toyota Rumion Side Moulding exploded parts diagram, figure 7503
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

13 parts
60117-WC004

Cover Sub-assy, Front Pillar, Upr Rh

PNC 60117

60118-WC003

Cover Sub-assy, Front Pillar, Upr Lh

PNC 60118

64621-WC003

Protector, Rocker Panel Moulding, No.1

PNC 75861A

64621-WC004

Protector, Rocker Panel Moulding, No.2

PNC 75862A

67675-WC002

Moulding, Rear Door Window Frame, Rh(rear Pillar Side)

PNC 75765B

67676-WC002

Moulding, Rear Door Window Frame, Lh(rear Pillar Side)

PNC 75766B

75555-WC002

Moulding, Roof Drip Side Finish, Rh

PNC 75551

75556-WC002

Moulding, Roof Drip Side Finish, Lh

PNC 75552

75561-WC003

Clip, Roof Drip Side Finish Moulding, No.1

PNC 75561
