Body

Figure 7104 · Seat Belt & Child Restraint Seat

15 genuine catalog part numbers · Production from 2023-08

Open interactive figure

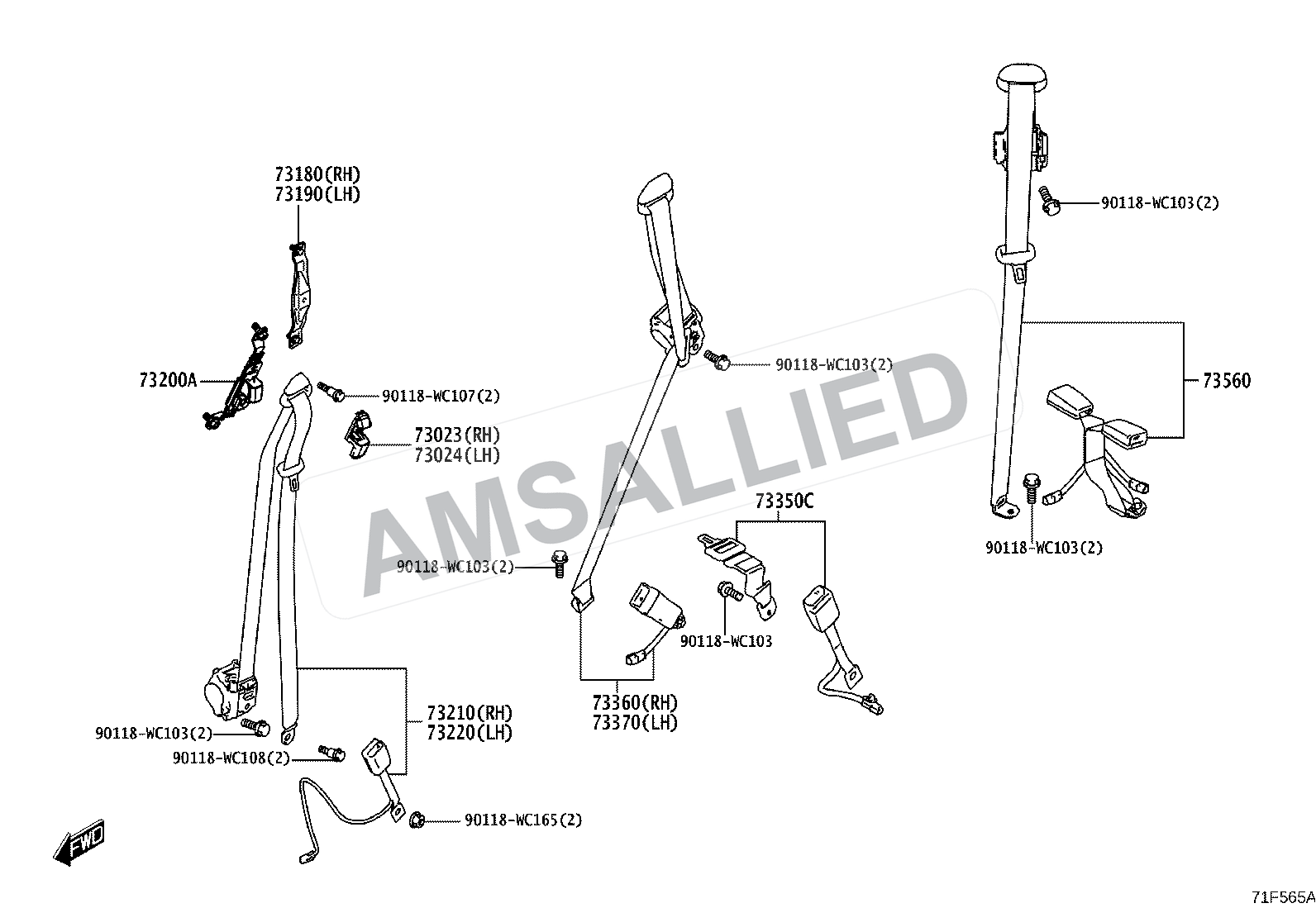

Toyota Rumion Seat Belt & Child Restraint Seat exploded parts diagram, figure 7104
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

15 parts
73023-WC002

Plate Sub-assy, Front Shoulder Belt Anchor, Rh

PNC 73023, 73024

73200-WC004

Bracket Assy, Seat Belt Inner Anchor, Rh

PNC 73180, 73190

73200-WC005

Adjuster Assy, Front Shoulder Belt Anchor

PNC 73200A

73360-WC026

Belt Assy, Rear Seat 3 Point Type, Outer Rh

PNC 73360

73370-WC014

Belt Assy, Rear Seat 3 Point Type, Outer Lh

PNC 73370

73380-WC015

Belt Assy, Rear Seat, Outer Center

PNC 73350C

73560-WC005

Belt Assy, Rear No.2 Seat, Outer Rh

PNC 73560
