Cushion Assy, Rear Seat, Lh (for Separate Type)
PNC 71470S
Body

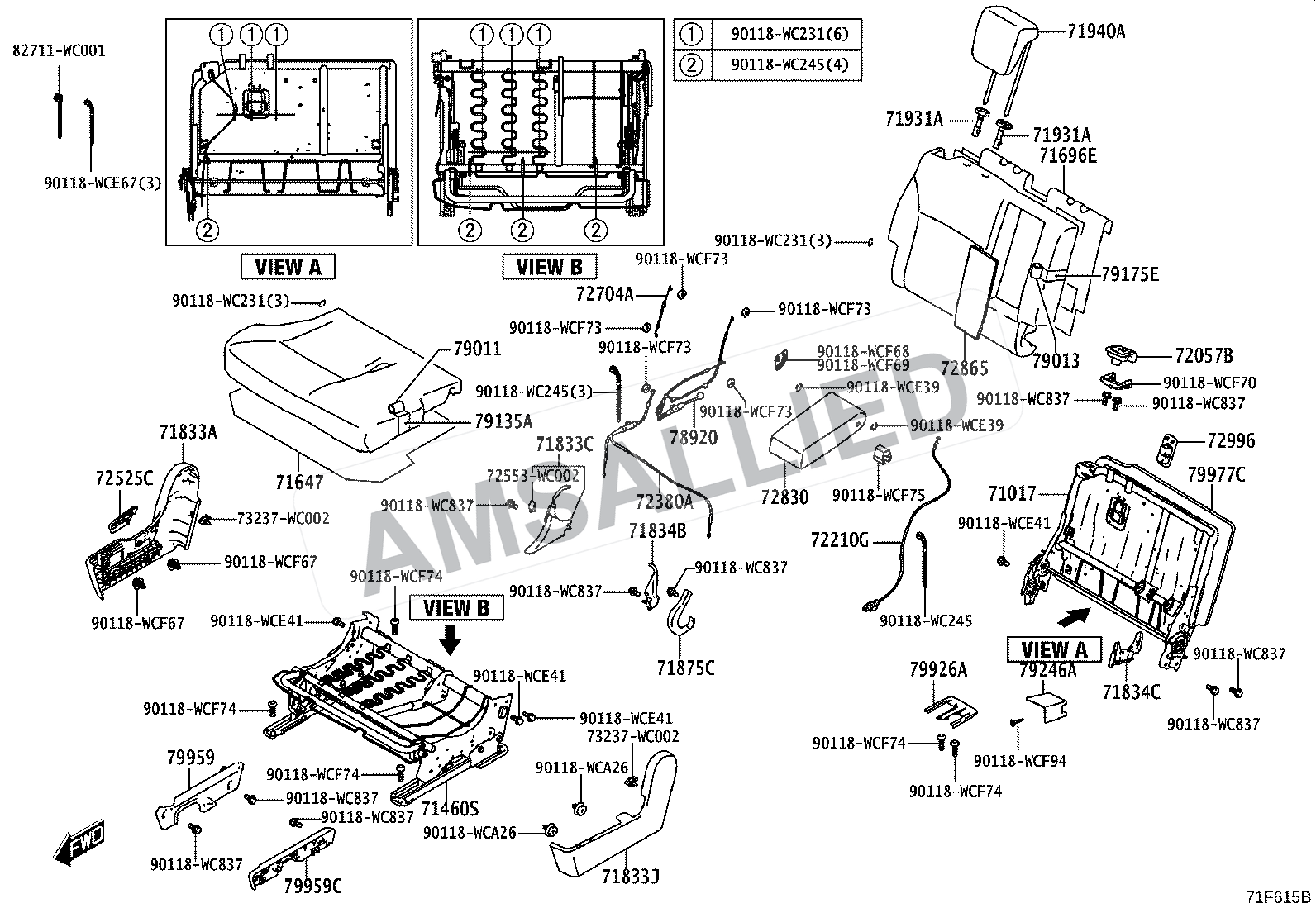

Figure 7102 · Rear Seat & Seat Track
133 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
133 partsFrame Sub-assy, Rear Seatback, Rh
PNC 71017
Frame Sub-assy, Rear Seatback, Rh
PNC 71017
Frame Sub-assy, Rear Seatback, Lh
PNC 71018
Cover Sub-assy, No.1 Seat Cushion, Rh
PNC 79011
Cover Sub-assy, No.1 Seat Cushion, Rh
PNC 79011
Cover Sub-assy, No.1 Seatback, Rh
PNC 79013
Cover Sub-assy, No.1 Seatback, Rh
PNC 79013
Cover Sub-assy, No.1 Seatback, Rh
PNC 79013
Cover Sub-assy, No.1 Seatback, Lh
PNC 79014
Cover Sub-assy, No.1 Seatback, Lh
PNC 79014
Pad, No.1 Seat Cushion, Rh
PNC 79135A
Protector, Rear Seat Cushion Edge
PNC 71647
Protector, Rear Seat Cushion Edge
PNC 71647G
Pad, No.1 Seatback, Rh
PNC 79175E
Pad, No.1 Seatback, Rh
PNC 79175E
Pad, No.1 Seatback, Lh
PNC 79185
Cover, Rear Seat Cushion Hinge, No.3
PNC 71692H
Cover, Rear Seat Cushion Hinge, No.2
PNC 71692E
Cover, Rear Seat Cushion Hinge, No.1
PNC 71691E, 71693A
Cover, Rear Seat Cushion Hinge, Outer Lh
PNC 71694D
Cover, Rear Seat Cushion Hinge, No.2
PNC 71691H, 71691K
Cover, Rear Seat Cushion Hinge, Outer Rh
PNC 71693C
Protector, Rear Seat, No.2 Rh
PNC 71696E
Protector, Rear Seatback Edge
PNC 71697
Protector, Rear Seatback
PNC 71697M
Moulding, Rear Seat Cushion, Lh
PNC 71826B
Moulding, Rear Seat Cushion, Rear Lh
PNC 71829B
Cover, Rear Seat Reclining, No.1 Rh
PNC 71833A
Cover, Rear Seat Reclining, No.3 Rh
PNC 71833E
Cover, Rear Seat Reclining, No.2 Lh
PNC 71834B
Cover, Rear Seat Reclining, No.3 Lh
PNC 71834C
Cover, Rear Seat Reclining, No.2 Rh
PNC 71833C
Cover, Reclining Adjuster Inside, Lh
PNC 71876B
Cover, Rear Seat Reclining, Lh
PNC 71834D
Cover, Rear Seat Reclining, No.1 Lh
PNC 71834A
Cover, Rear Seat Reclining, No.2 Lh
PNC 71844C
Cover, Rear Seat Reclining, No.1 Rh
PNC 71833J
Cover, Reclining Adjuster Inside, Rh
PNC 71875C
Cover, Rear Seat Reclining, Inner Rh
PNC 71878A
Cover, Rear Seat Reclining, No.2 Rh
PNC 71843D
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, No.2 Seat
PNC 71940E
Headrest Assy, No.2 Seat
PNC 71940E
Support, Rear Seat Headrest
PNC 71931A, 71931E
Support, Rear Seat Headrest
PNC 71931A, 71931E
Lever Sub-assy, Rear Seat Lock Control, Rh
PNC 72057, 72058A
Lever Sub-assy, Rear Seat Lock Control
PNC 72057B
Lever Sub-assy, Rear Seat Lock Control, Lh No.1
PNC 72057G
Cover, Rear Seat Track, No.2
PNC 72137Q
Cable Assy, Seat Adjuster Control, No.2
PNC 72380A
Cable Assy, Seat Adjust Drive, No.3
PNC 72430
Handle, Reclining Adjuster Release, No.1 Rh
PNC 72525C
Handle, Reclining Adjuster Release, No.1 Lh
PNC 72526B
Cable Assy, Rear Seat Lock, Rh
PNC 72620F, 72620G
Strap Assy, Rear Seat Lock Release
PNC 72690A
Armrest Assy, Rear Seat, Center
PNC 72830
Armrest Assy, Rear Seat, Center
PNC 72830
Board, Center Armrest, No.1
PNC 72865
Cover, Rr Seat Leg
PNC 79959
Cover, Rear Seatback, Rh
PNC 72996, 72996A
Cover, Rear Seatback, Rh
PNC 72996, 72996A
Cover, Rear Seatback, Rh
PNC 72996, 72996A
Cover, Rear Seatback, Rh
PNC 72996, 72996A
Cable Assy, Fold Seat Lock Control, No.2
PNC 78920
Cable Assy, Fold Seat Lock Control, No.1 Lh
PNC 78920B
Cover Sub-assy, No.1 Seat Cushion, Lh
PNC 79012
Cover Sub-assy, No.1 Seat Cushion, Lh
PNC 79012
Cover Sub-assy, No.2 Seat Cushion, Rh
PNC 79021
Cover Sub-assy, No.2 Seat Cushion, Rh
PNC 79021
Cover Sub-assy, No.2 Seatback, Rh
PNC 79023
Cover Sub-assy, No.2 Seatback, Rh
PNC 79023
Cover Sub-assy, No.2 Seatback, Rh
PNC 79023
Cover Sub-assy, No.2 Seatback, Lh
PNC 79024
Cover Sub-assy, No.2 Seatback, Lh
PNC 79024
Cover Sub-assy, No.2 Seatback, Lh
PNC 79024
Cover Sub-assy, No.2 Seat Cushion, Lh
PNC 79022
Cover Sub-assy, No.2 Seat Cushion, Lh
PNC 79022
Cover Sub-assy, No.1 Seat Leg, Lh
PNC 79076J
Cover, Rear Under
PNC 76971F
Pad, No.1 Seat Cushion, Lh
PNC 79136B
Cushion Assy, Rear Seat, Rh(for Separate Type)
PNC 71460S
Pad, No.2 Seat Cushion, Rh
PNC 79235D
Cover, No.2 Seat Leg, No.2
PNC 79246A
Cover, No.2 Seat Leg, No.2
PNC 79246A
Spring Assy, No.2 Seat Cushion
PNC 79260
Spring Assy, No.2 Seat Cushion, Lh
PNC 79270A
Pad, No.2 Seatback, Rh
PNC 79275C
Spring Assy, No.2 Seatback
PNC 79280
Pad, No.2 Seatback, Lh
PNC 79285
Spring Assy, No.2 Seatback, Lh
PNC 79290A
Pad, No.2 Seat Cushion, Lh
PNC 79245C
Plate Sub-assy, Seat Hinge, Rh
PNC 79907
Plate Sub-assy, Seat Hinge, Lh
PNC 79908
Cover, Rear Seat Leg Garnish
PNC 79926A
Cover Sub-assy, No.1 Seat Leg, Rh
PNC 79076H
Cover, Rear Seat Leg
PNC 79959C
Felt, Seat Cushion, Rh
PNC 79977C
Felt, Seat Cushion, Lh
PNC 79977D
Protector, Rear Seat, No.2
PNC 71696
Cable, Rear Seat Reclining Control
PNC 72704A, 72704B
Cable Assy, Rear No.1 Seat Track Control, Rh
PNC 72210G, 72210H
Diagram Hardware / Fastener
PNC 90118WC231
Diagram Hardware / Fastener
PNC 90118WC245
Diagram Hardware / Fastener
PNC 90118WCF67
Diagram Hardware / Fastener
PNC 90118WC837
Diagram Hardware / Fastener
PNC 72553WC002
Diagram Hardware / Fastener
PNC 90118WCF75
Diagram Hardware / Fastener
PNC 90118WCE39
Diagram Hardware / Fastener
PNC 90118WCE41
Diagram Hardware / Fastener
PNC 90118WCF74
Diagram Hardware / Fastener
PNC 90118WCF70
Diagram Hardware / Fastener
PNC 73237WC002
Diagram Hardware / Fastener
PNC 90118WCA26
Diagram Hardware / Fastener
PNC 90118WCF69
Diagram Hardware / Fastener
PNC 90118WCF68
Diagram Hardware / Fastener
PNC 90118WCF73
Diagram Hardware / Fastener
PNC 82711WC001
Diagram Hardware / Fastener
PNC 90118WCE67
Diagram Hardware / Fastener
PNC 90118WCF94
Diagram Hardware / Fastener
PNC 90118WCF77
Diagram Hardware / Fastener
PNC 72554WC002
Diagram Hardware / Fastener
PNC 90118WCF76
Diagram Hardware / Fastener
PNC 90118WCF80
Diagram Hardware / Fastener
PNC 90118WCF83
Diagram Hardware / Fastener
PNC 90118WC826
Diagram Hardware / Fastener
PNC 90118WCF81
Diagram Hardware / Fastener
PNC 90118WCF82
Diagram Hardware / Fastener
PNC 90118WC829
Diagram Hardware / Fastener
PNC 71324WC001
Diagram Hardware / Fastener
PNC 90118WC056
Diagram Hardware / Fastener
PNC 90118WCT09
