Figure 7101 · Front Seat & Seat Track

76 genuine catalog part numbers · Production from 2023-08

Open interactive figure

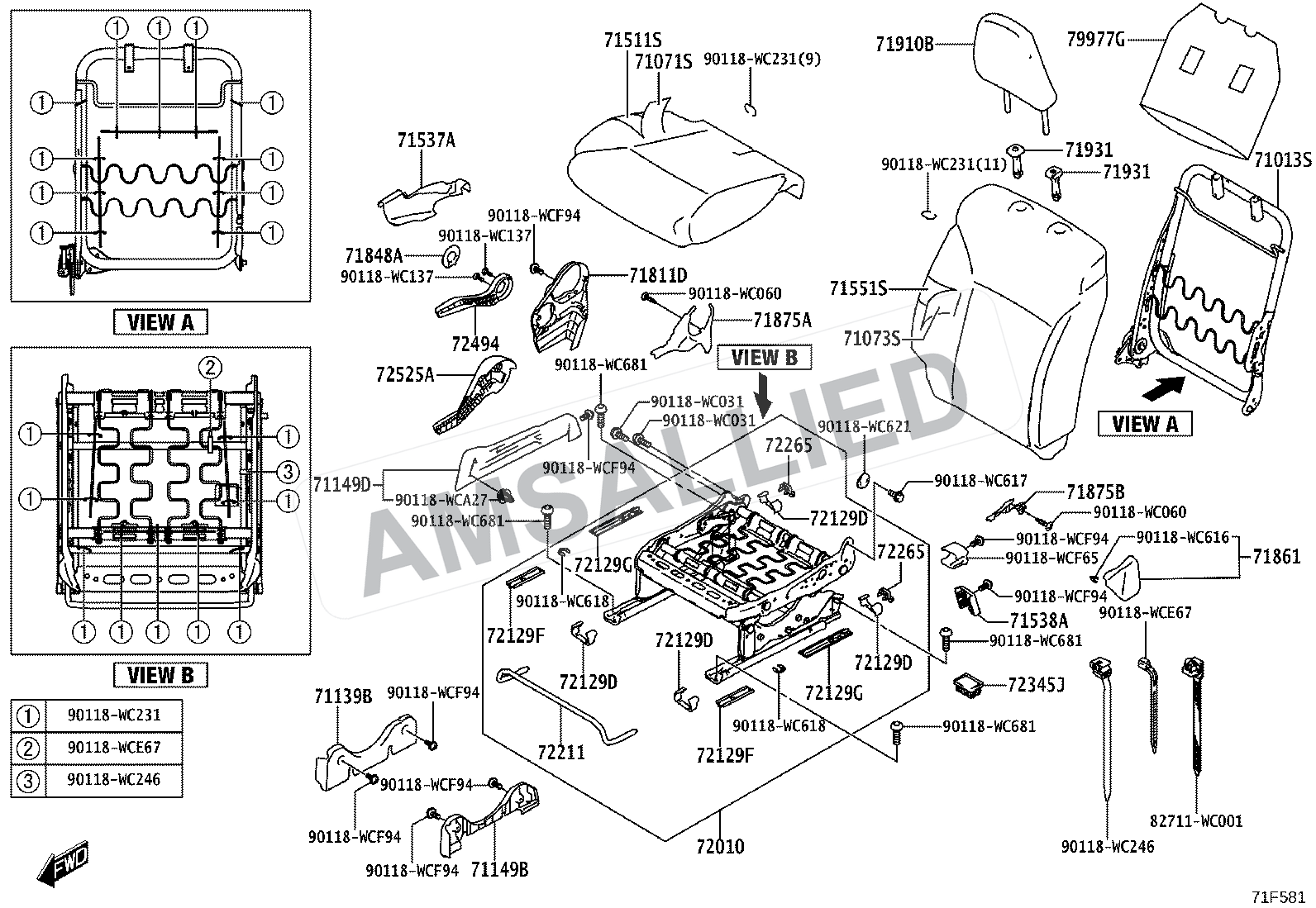

Toyota Rumion Front Seat & Seat Track exploded parts diagram, figure 7101
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

76 parts
71013-WC003

Frame Sub-assy, Front Seatback, Rh

PNC 71013S

71014-WC003

Frame Sub-assy, Front Seatback, Lh

PNC 71014S

71014-WC004

Frame Sub-assy, Front Seatback, Lh

PNC 71014S

71071-WC029

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71071-WC030

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71073-WC033

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC034

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71074-WC035

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC036

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC037

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC038

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71139-WC001

Cover, Front Seat Leg, Lh (for Rh Seat)

PNC 71149B

71149-WC001

Cover, Front Seat Leg, Lh (for Rh Seat)

PNC 71149B

71420-WC019

Cushion Assy, Front Seat, Lh (for Separate Type)

PNC 71420S

71420-WC020

Cushion Assy, Front Seat, Lh (for Separate Type)

PNC 71420S

71512-WC004

Pad, Front Seat Cushion, Rh(for Separate Type)

PNC 71511S

71551-WC001

Pad, Front Seatback, Rh(for Separate Type)

PNC 71551S

71552-WC001

Pad, Front Seatback, Lh(for Separate Type)

PNC 71552S

71552-WC003

Pad, Front Seatback, Lh(for Separate Type)

PNC 71552S

71861-WC006

Shield, Front Seat Cushion, Inner Rh

PNC 71861

71862-WC006

Shield, Front Seat Cushion, Inner Lh

PNC 71862

71875-WC010

Cover, Reclining Adjuster Inside, Rh

PNC 71875A

71875-WC011

Cover, Reclining Adjuster Inside, Rh

PNC 71875B

71875-WC013

Cover, Reclining Adjuster Inside, Rh

PNC 71875B

71876-WC005

Cover, Reclining Adjuster Inside, Lh

PNC 71876

71876-WC006

Cover, Reclining Adjuster Inside, Lh

PNC 71876A

72125-WC001

Cover, Seat Track Upper Rail, Rh

PNC 72265, 72266

72125-WC002

Protector, Seat Track Lower Rail, No.3

PNC 72129C, 72129G

72129-WC001

Protector, Seat Track Lower Rail, No.1

PNC 72129, 72129D

72129-WC002

Protector, Seat Track Lower Rail, No.2

PNC 72129A, 72129F

72211-WC003

Handle, Seat Track Adjusting

PNC 72211, 72211C

72498-WC005

Protector, Front Seat Cushion Edge, Lh(for Rh Seat)

PNC 71538A

72525-WC006

Handle, Reclining Adjuster Release, Rh

PNC 72525A

72526-WC005

Handle, Reclining Adjuster Release, Lh

PNC 72526
