Figure 6709 · Back Door Lock & Handle

19 genuine catalog part numbers · Production from 2023-08

Open interactive figure

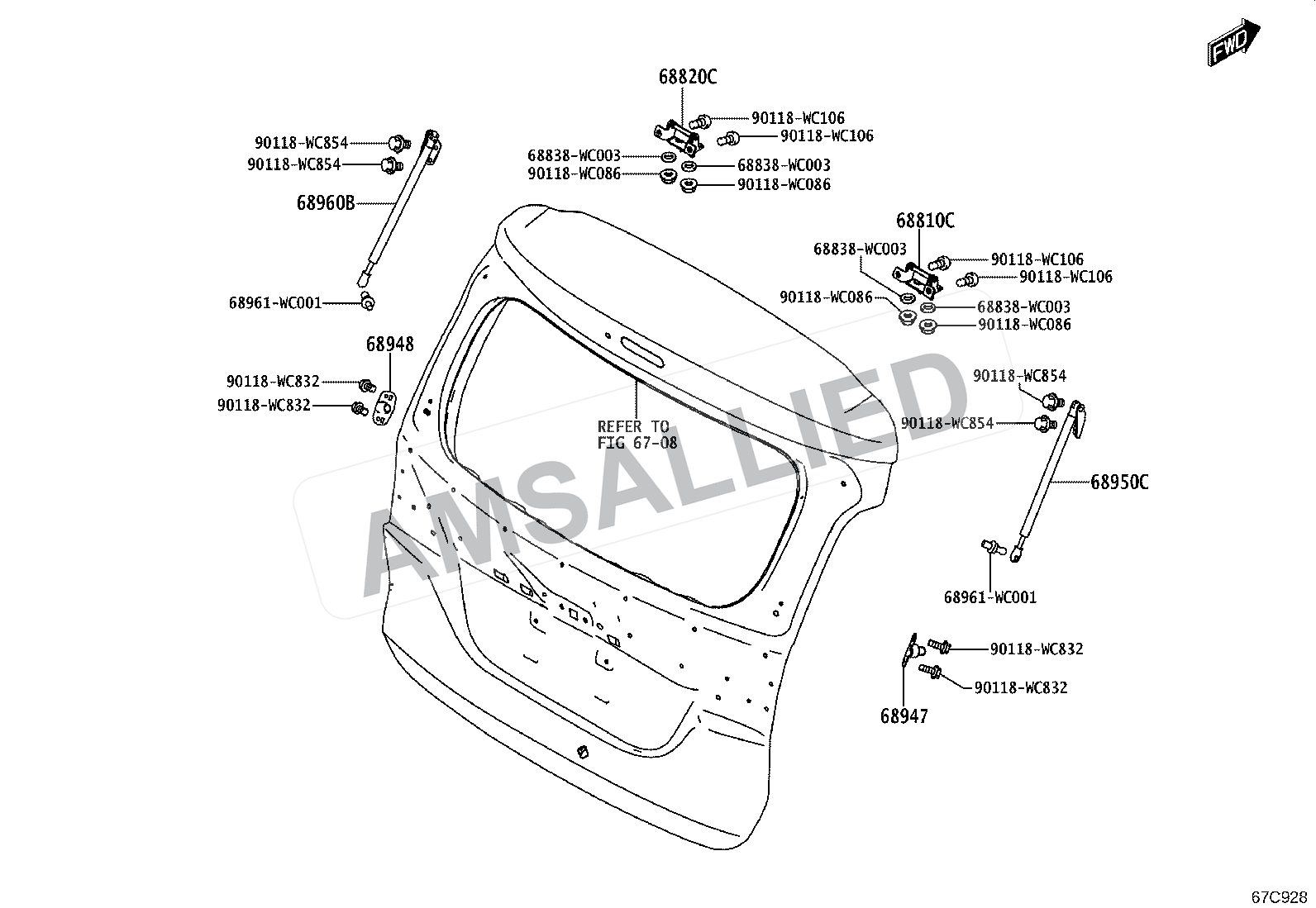

Toyota Rumion Back Door Lock & Handle exploded parts diagram, figure 6709 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

19 parts

68801-WC004

Hinge Assy, Back Door, Rh

PNC 68810C, 68820C

68950-WC003

Stay Assy, Back Door, Rh

PNC 68950C

68960-WC002

Stay Assy, Back Door, Lh

PNC 68960B

69285-WC001

Handle, Back Door

PNC 69293

69285-WC002

Handle, Back Door

PNC 69293

69430-WC004

Striker Assy, Back Door Lock

PNC 69430C

69792-WC001

Link, Back Door Lock Locking

PNC 69792

84804-WC006

Lock Assy, Back Door

PNC 69350

84804-WC007

Lock Assy, Back Door

PNC 69350

90118-WCF60

Bracket, Back Door Damper Stay, Lower Rh

PNC 68947, 68948

68838-WC003

Diagram Hardware / Fastener

PNC 68838WC003

90118-WC086

Diagram Hardware / Fastener

PNC 90118WC086

90118-WC854

Diagram Hardware / Fastener

PNC 90118WC854

90118-WC106

Diagram Hardware / Fastener

PNC 90118WC106

68961-WC001

Diagram Hardware / Fastener

PNC 68961WC001

90118-WC832

Diagram Hardware / Fastener

PNC 90118WC832

90118-WC077

Diagram Hardware / Fastener

PNC 90118WC077

90118-WCE46

Diagram Hardware / Fastener

PNC 90118WCE46

90118-WC146

Diagram Hardware / Fastener

PNC 90118WC146
