Body

Figure 6706 · Rear Door Lock & Handle

22 genuine catalog part numbers · Production from 2023-08

Open interactive figure

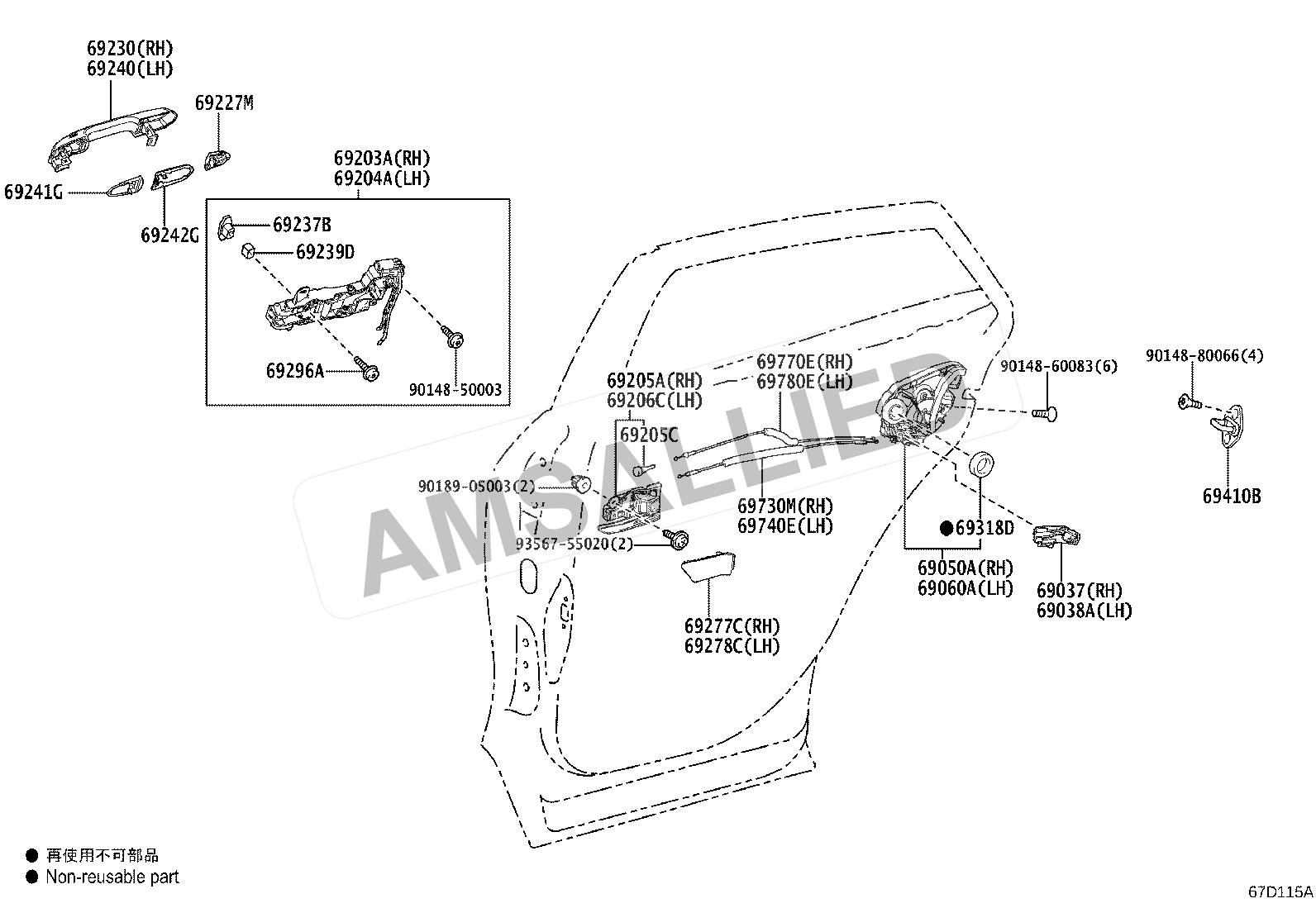

Toyota Rumion Rear Door Lock & Handle exploded parts diagram, figure 6706
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

22 parts
69205-WC007

Handle Sub-assy, Rear Door Inside, Rh

PNC 69205A

69205-WC008

Handle Sub-assy, Rear Door Inside, Rh

PNC 69205A

69206-WC007

Handle Sub-assy, Rear Door Inside, Lh

PNC 69206C

69206-WC008

Handle Sub-assy, Rear Door Inside, Lh

PNC 69206C

69283-WC004

Bezel, Rear Door Inside Handle, Rh

PNC 69277C

69284-WC002

Bezel, Rear Door Inside Handle, Lh

PNC 69278C

69410-WC001

Plate Assy, Rear Door Lock Striker

PNC 69410B
