Panel Sub-assy, Rear Door, Rh
PNC 67003
Body

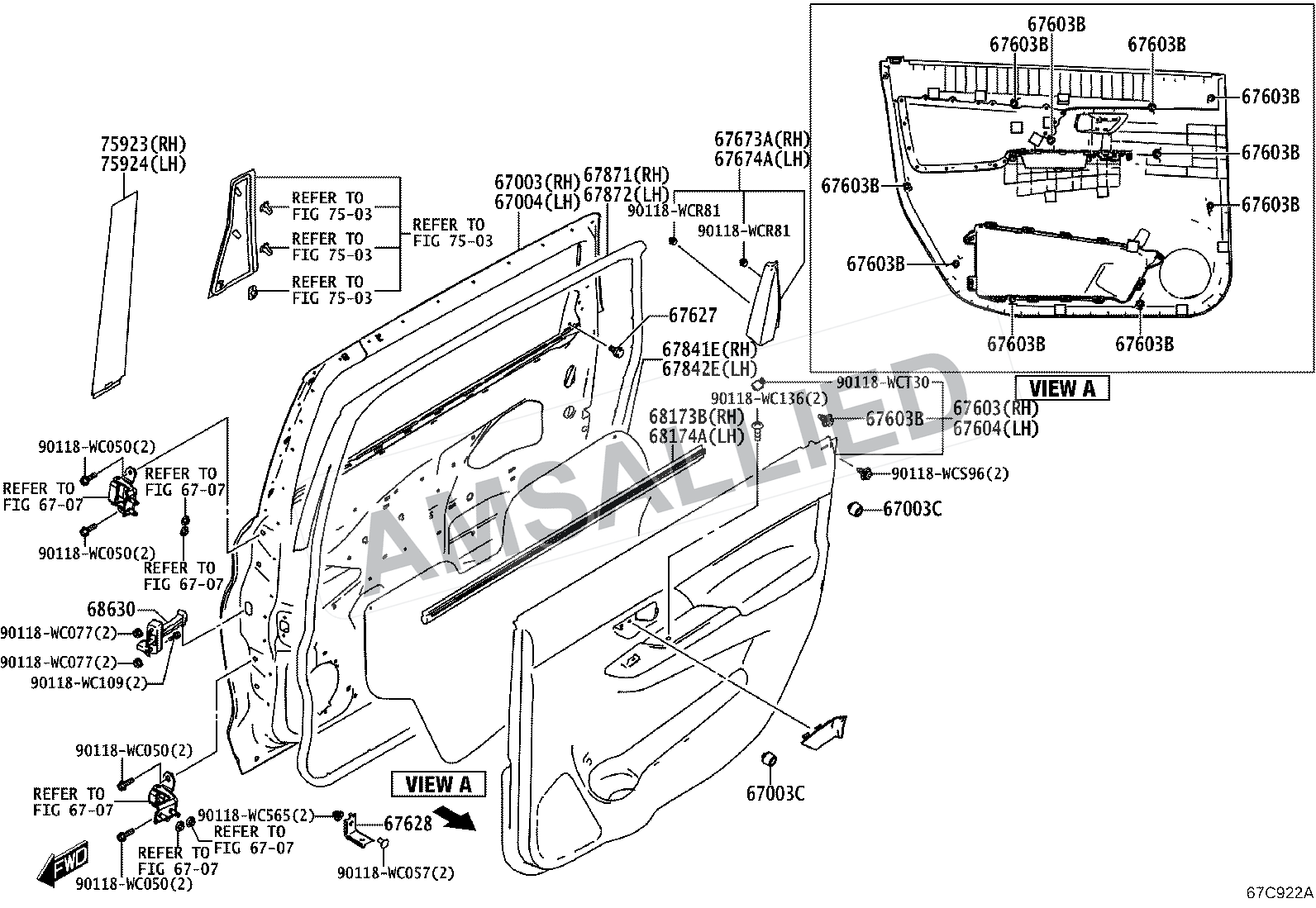

Figure 6705 · Rear Door Panel & Glass
41 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
41 partsPanel Sub-assy, Rear Door, Lh
PNC 67004
Guide Sub-assy, Rear Door Window, Rear Rh
PNC 67407D
Guide Sub-assy, Rear Door Window, Rear Lh
PNC 67408D
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Garnish, Rear Door Frame, Rh
PNC 67673A
Garnish, Rear Door Frame, Lh
PNC 67674A
Cover, Rear Door Service Hole, Rh
PNC 67841E, 67842E
Weatherstrip, Rear Door, Rh
PNC 67871
Weatherstrip, Rear Door, Lh
PNC 67872
Glass Sub-assy, Rear Door, Rh
PNC 68103
Glass Sub-assy, Rear Door, Lh
PNC 68104
Run, Rear Door Glass, Rh
PNC 68142C
Run, Rear Door Glass, Lh
PNC 68152C
Weatherstrip Assy, Rear Door Glass, Outer Rh
PNC 68180C
Weatherstrip, Rear Door Glass, Inner Rh
PNC 68173B
Weatherstrip Assy, Rear Door Glass, Outer Lh
PNC 68230C
Weatherstrip, Rear Door Glass, Inner Lh
PNC 68174A
Check Assy, Rear Door
PNC 68630
Tape, Black Out, No.2 Rh
PNC 75923
Tape, Black Out, No.2 Lh
PNC 75924
Clip(for Rear Door Trim Board)
PNC 67603B
Cushion, Rear Door Panel
PNC 67003C
Bracket, Rear Door Trim, Rh
PNC 67627, 67628
Diagram Hardware / Fastener
PNC 90118WC109
Diagram Hardware / Fastener
PNC 90118WC050
Diagram Hardware / Fastener
PNC 90118WC565
Diagram Hardware / Fastener
PNC 90118WC057
Diagram Hardware / Fastener
PNC 90118WC136
Diagram Hardware / Fastener
PNC 90118WCT30
Diagram Hardware / Fastener
PNC 90118WCS96
Diagram Hardware / Fastener
PNC 90118WCR81
Diagram Hardware / Fastener
PNC 9004A10260
Diagram Hardware / Fastener
PNC 9004A11429
Diagram Hardware / Fastener
PNC 67771B2010
Diagram Hardware / Fastener
PNC 9004A17177
Diagram Hardware / Fastener
PNC 9017906070
Diagram Hardware / Fastener
PNC 90118WC475
