Body

Figure 6704 · Front Door Window Regulator & Hinge

15 genuine catalog part numbers · Production from 2023-08

Open interactive figure

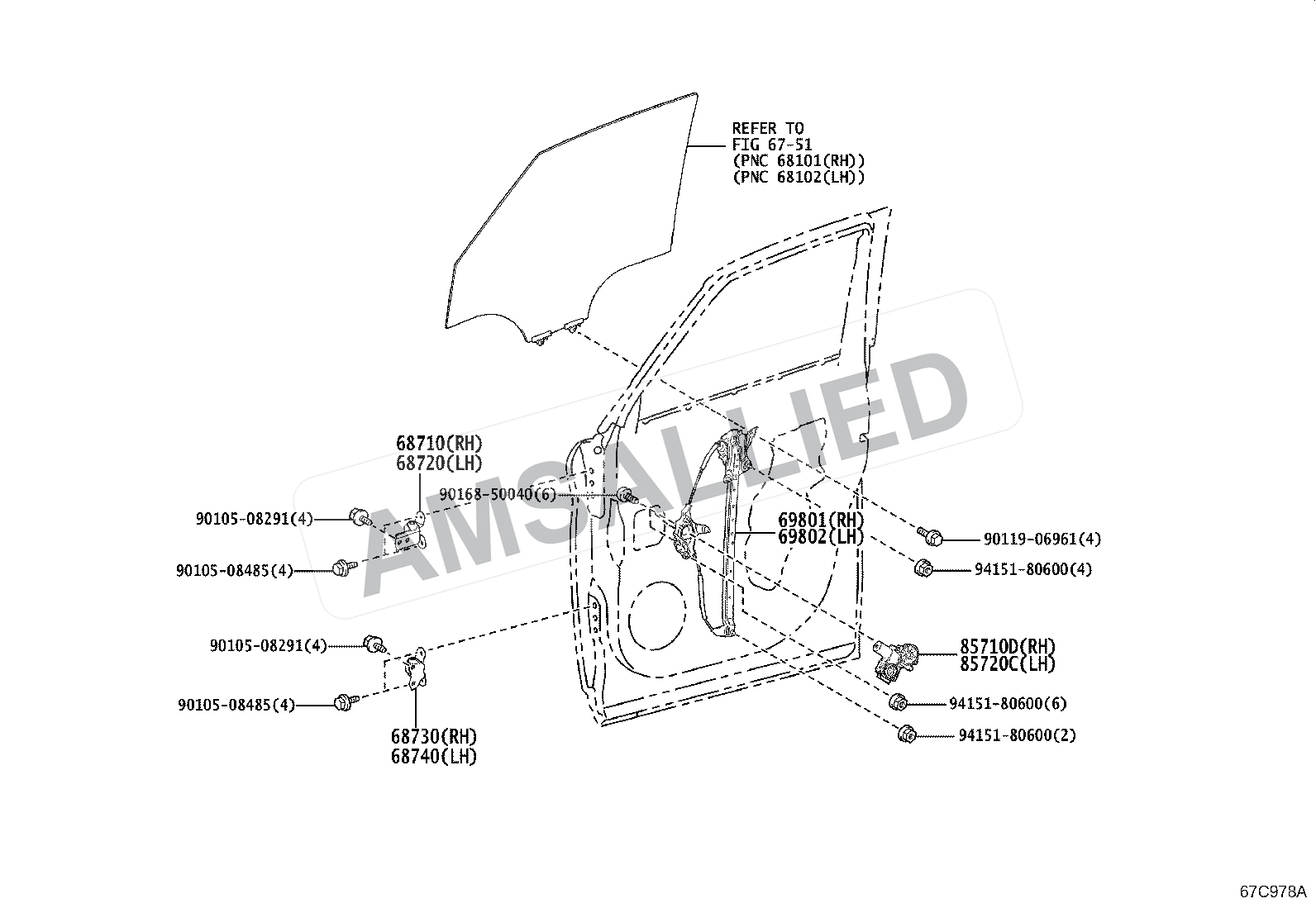

Toyota Rumion Front Door Window Regulator & Hinge exploded parts diagram, figure 6704
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

15 parts
69801-WC007

Regulator Sub-assy, Front Door Window, Rh

PNC 69801

69801-WC016

Regulator Sub-assy, Front Door Window, Rh

PNC 69801

69802-WC007

Regulator Sub-assy, Front Door Window, Lh

PNC 69802
