Body

Figure 6701 · Front Door Panel & Glass

44 genuine catalog part numbers · Production from 2023-08

Open interactive figure

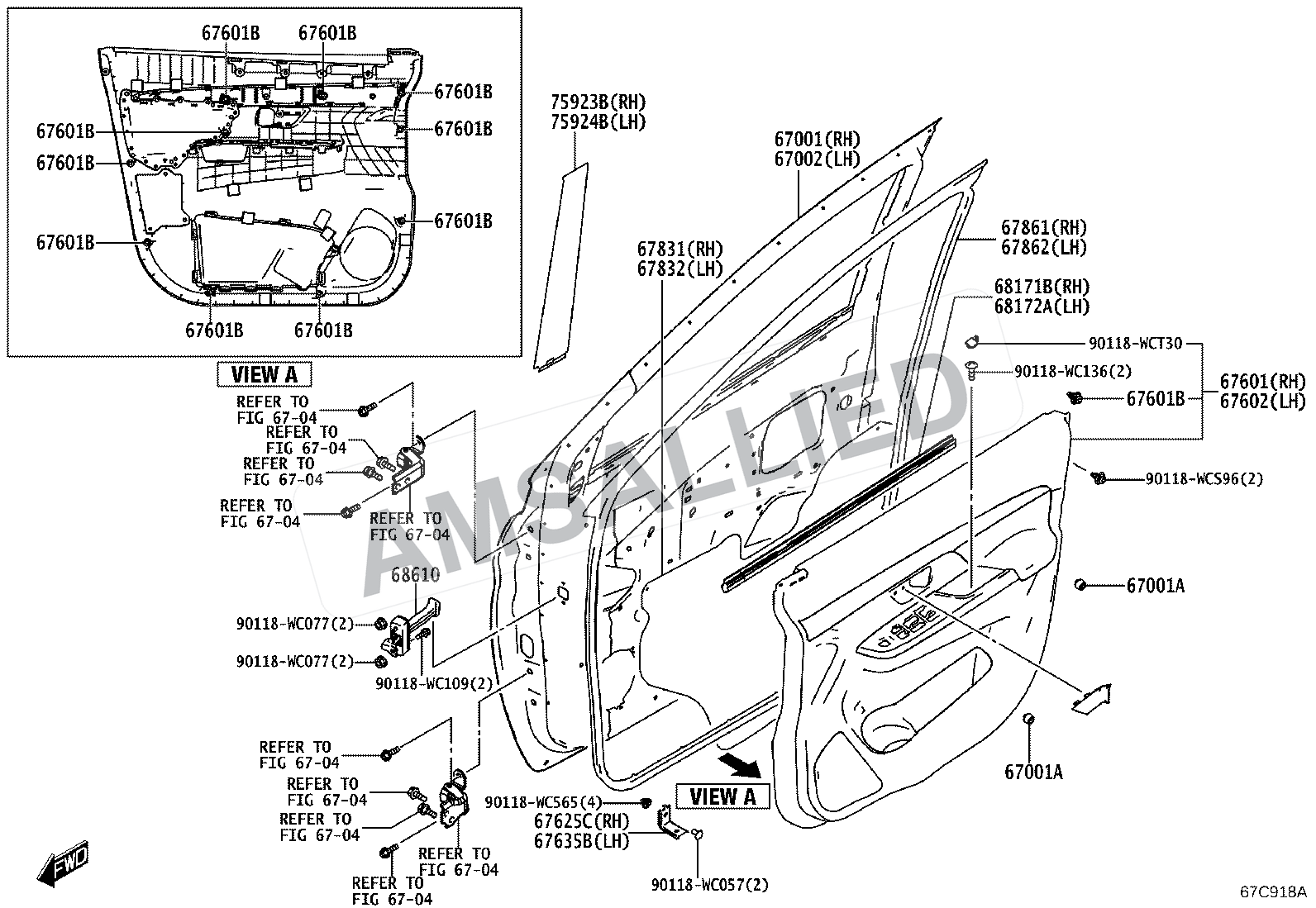

Toyota Rumion Front Door Panel & Glass exploded parts diagram, figure 6701
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

44 parts
67403-WC005

Frame Sub-assy, Front Door, Rear Lower Rh

PNC 67403F

67404-WC005

Frame Sub-assy, Front Door, Rear Lower Lh

PNC 67404F

67610-WC036

Board Sub-assy, Front Door Trim, Rh

PNC 67601

67610-WC037

Board Sub-assy, Front Door Trim, Rh

PNC 67601

67620-WC036

Board Sub-assy, Front Door Trim, Lh

PNC 67602

67620-WC037

Board Sub-assy, Front Door Trim, Lh

PNC 67602

67831-WC004

Cover, Front Door Service Hole, Rh

PNC 67831, 67832

68160-WC009

Weatherstrip Assy, Front Door Glass, Outer Rh

PNC 68160C

68160-WC010

Weatherstrip, Front Door Glass, Inner Rh

PNC 68171B

68210-WC009

Weatherstrip Assy, Front Door Glass, Outer Lh

PNC 68210C

68210-WC010

Weatherstrip, Front Door Glass, Inner Lh

PNC 68172A

87963-WC005

Cover, Outer Mirror Install Hole, Rh

PNC 87963

87963-WC006

Cover, Outer Mirror Install Hole, Rh

PNC 87963

87964-WC005

Cover, Outer Mirror Install Hole, Lh

PNC 87964

87964-WC006

Cover, Outer Mirror Install Hole, Lh

PNC 87964
