Figure 6104 · Roof Panel & Back Window Glass

11 genuine catalog part numbers · Production from 2023-08

Open interactive figure

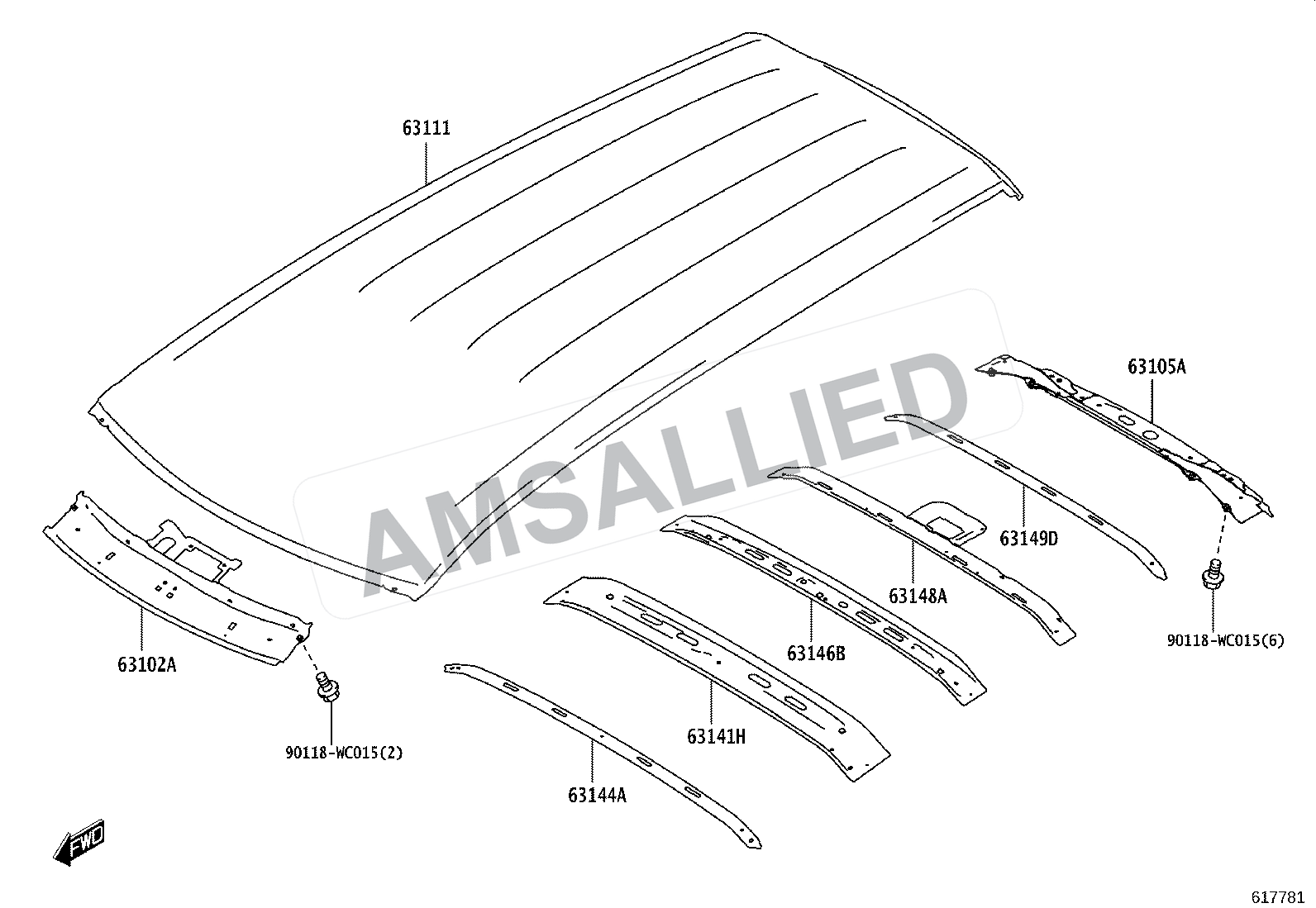

Toyota Rumion Roof Panel & Back Window Glass exploded parts diagram, figure 6104 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

11 parts

Panel Sub-assy, Windshield Header

PNC 63102A

Panel Sub-assy, Windshield Header

PNC 63102A

Reinforcement, Roof Panel, Center

PNC 63141H

Reinforcement, Roof Panel, Center

PNC 63141H

Panel, Roof

PNC 63111

Reinforcement, Roof Panel, No.4

PNC 63144A

Reinforcement, Roof Panel, No.7

PNC 63148A

Frame Sub-assy, Back Door Opening

PNC 63105A

Reinforcement, Roof Panel, No.8

PNC 63149D

Reinforcement, Windshield Header Panel, No.2

PNC 63146B

Diagram Hardware / Fastener

PNC 90118WC015
