Bracket, Cowl Side Panel To Fender Apron
PNC 61159F, 61159G
Body

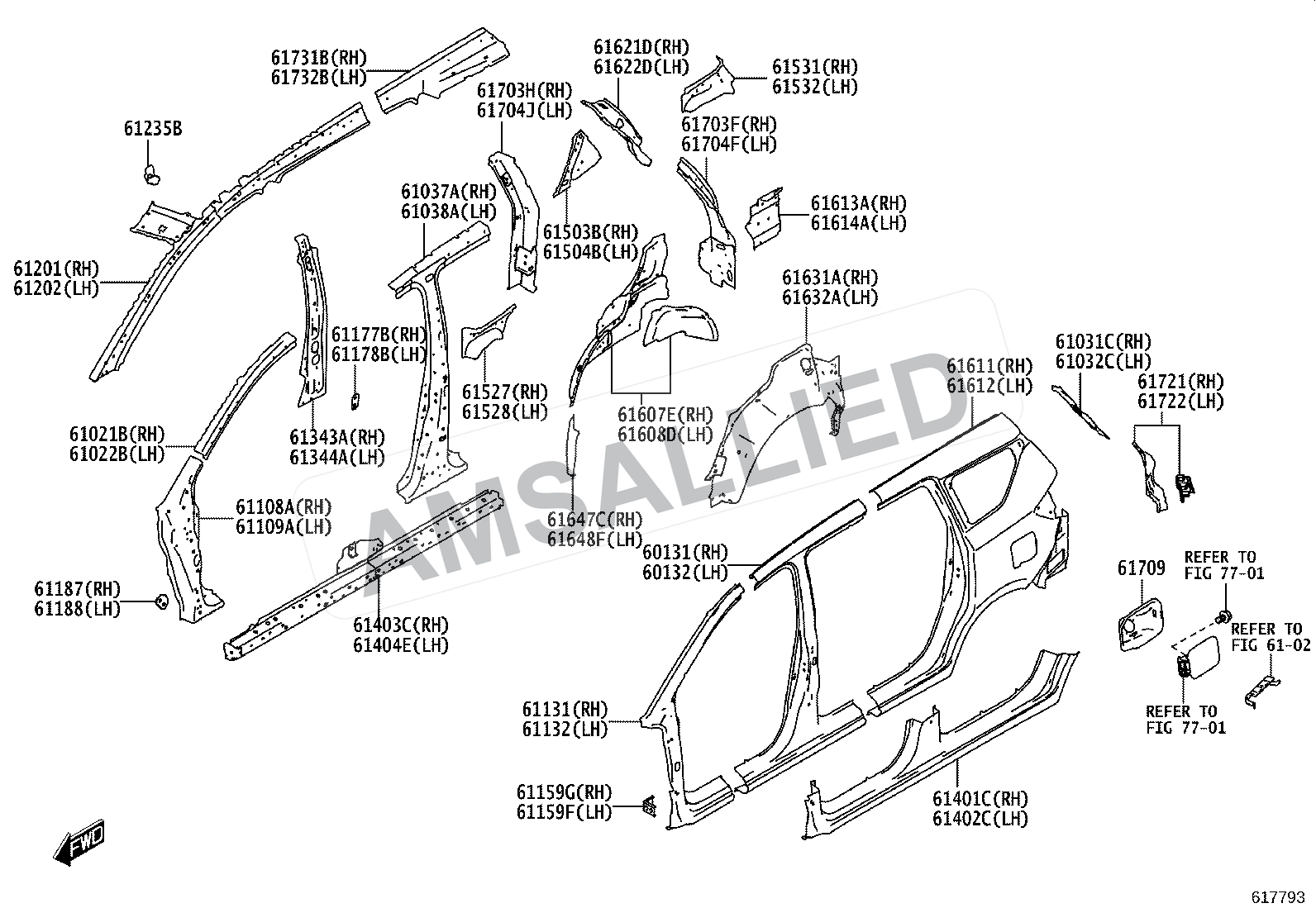

Figure 6101 · Side Member
54 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
54 partsReinforce Sub-assy, Front Body Pillar, Lower Rh
PNC 61108A
Reinforce Sub-assy, Front Body Pillar, Lower Lh
PNC 61109A
Pillar, Front Body, Upper Outer Rh
PNC 61131
Pillar Sub-assy, Center Body, No.2 Rh
PNC 60131
Panel, Quarter, Rh
PNC 61611
Panel Sub-assy, Rocker, Outer Rh
PNC 61401C
Pillar, Front Body, Upper Outer Lh
PNC 61132
Pillar Sub-assy, Center Body, No.2 Lh
PNC 60132
Panel, Quarter, Lh
PNC 61612
Panel Sub-assy, Rocker, Outer Lh
PNC 61402C
Bracket, Front Pillar Door Hinge Cover, Rh
PNC 61187, 61188
Rail Sub-assy, Roof Side, Rh
PNC 61201
Rail Sub-assy, Roof Side, Lh
PNC 61202
Panel, Roof Side, Inner Rh
PNC 61731B
Panel, Roof Side, Inner Lh
PNC 61732B
Pillar Sub-assy, Front Body, Upper Rh
PNC 61021B
Pillar Sub-assy, Front Body, Upper Lh
PNC 61022B
Bracket, Assist Grip
PNC 61235B
Pillar, Center Body, Inner Rh
PNC 61343A
Pillar, Center Body, Inner Lh
PNC 61344A
Reinforce Sub-assy, Rocker, Outer Rh
PNC 61403C
Reinforce Sub-assy, Rocker, Outer Lh
PNC 61404E
Reinforcement Sub-assy, Center Body Pillar, Rh
PNC 61037A
Reinforcement Sub-assy, Center Body Pillar, Lh
PNC 61038A
Bracket, Door Check Arm
PNC 61177B, 61178B
Panel, Quarter Wheel House, Inner Rh
PNC 61607E
Panel, Quarter Wheel House, Inner Lh
PNC 61608D
Extension, Quarter Panel Rear, Rh
PNC 61613A
Panel, Rear Body Outside Corner, Rh
PNC 61721
Trough, Back Door Opening, Rh
PNC 61621D
Extension Sub-assy, Quarter Panel, Rear Rh
PNC 61031C
Trough, Back Door Opening, Lh
PNC 61622D
Extension Sub-assy, Quarter Panel, Rear Lh
PNC 61032C
Panel, Quarter Wheel House, Outer Rh
PNC 61631A
Panel, Quarter Wheel House, Outer Lh
PNC 61632A
Reinforcement, Quarter Panel, Lower Lh
PNC 61648F
Reinforcement, Wheel House, Rh
PNC 61647C
Reinforcement Sub-assy, Roof Side, Inner Rh
PNC 61703H
Reinforcement Sub-assy, Roof Side, Inner Lh
PNC 61704J
Reinforcement Sub-assy, Quarter Lock Pillar, Rh
PNC 61503B
Reinforcement Sub-assy, Quarter Lock Pillar, Lh
PNC 61504B
Extension, Quarter Panel, Rear Lh
PNC 61614A
Panel, Back Corner, Inner Rh
PNC 61531
Panel, Back Corner, Inner Lh
PNC 61532
Panel, Rear Body Outside Corner, Lh
PNC 61722
Reinforcement, Quarter Lock Piller, Lower Rh
PNC 61527
Reinforcement, Quarter Lock Piller, Lower Lh
PNC 61528
Liner, Rear Wheel House, Rh
PNC 65637
Liner, Rear Wheel House, Lh
PNC 65638
Panel Sub-assy, Quarter, Inner Front Lh
PNC 61704F
Panel Sub-assy, Quarter, Inner Front Rh
PNC 61703F
Box Sub-assy, Fuel Inlet
PNC 61709
Box Sub-assy, Fuel Inlet
PNC 61709
