Figure 5806 · Console Box & Bracket

16 genuine catalog part numbers · Production from 2023-08

Open interactive figure

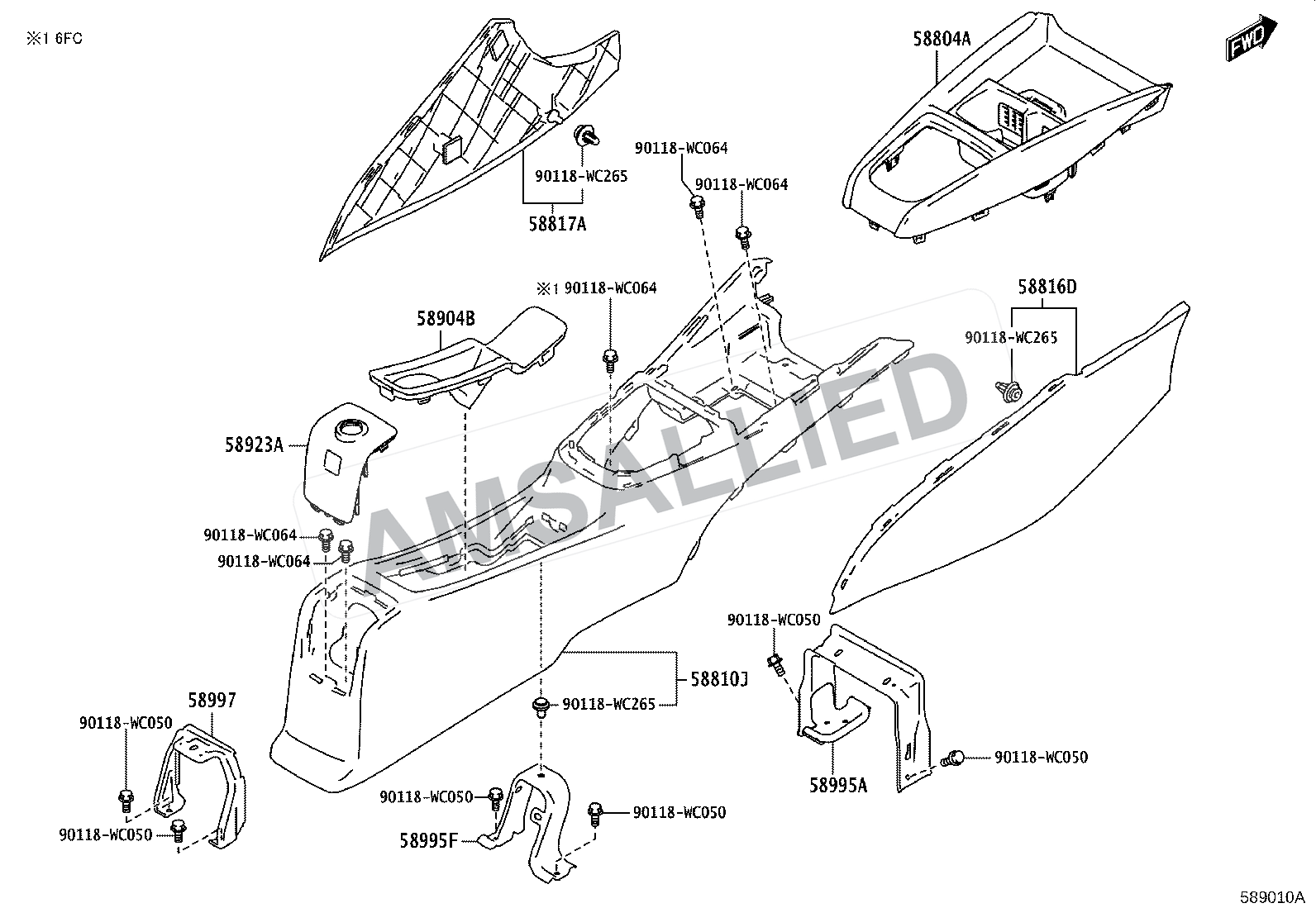

Toyota Rumion Console Box & Bracket exploded parts diagram, figure 5806 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

16 parts

58804-WC004

Panel Sub-assy, Console, Upper

PNC 58804A

58810-WC013

Box Assy, Console

PNC 58810J

58810-WC015

Box Assy, Console

PNC 58810J

58816-WC014

Insert, Console Box, Front No.1

PNC 58816D

58817-WC007

Insert, Console Box, Front No.2

PNC 58817A

58818-WC002

Cover Sub-assy, Parking Brake Hole

PNC 58904B

58904-WC001

Cover Sub-assy, Parking Brake Hole

PNC 58904B

58917-WC006

Panel, Console Rear End

PNC 58923A

58917-WC007

Panel, Console Rear End

PNC 58923A

58995-WC006

Bracket, Console Box Mounting, No.1

PNC 58995A

58995-WC007

Bracket, Console Box Mounting, No.3

PNC 58997

58995-WC008

Bracket, Console Box Mounting, No.3

PNC 58997

58997-WC004

Bracket, Console Box Mounting, No.2

PNC 58995F

90118-WC064

Diagram Hardware / Fastener

PNC 90118WC064

90118-WC265

Diagram Hardware / Fastener

PNC 90118WC265

90118-WC050

Diagram Hardware / Fastener

PNC 90118WC050
