Member Sub-assy, Front Floor Cross, Rh
PNC 57051A
Body

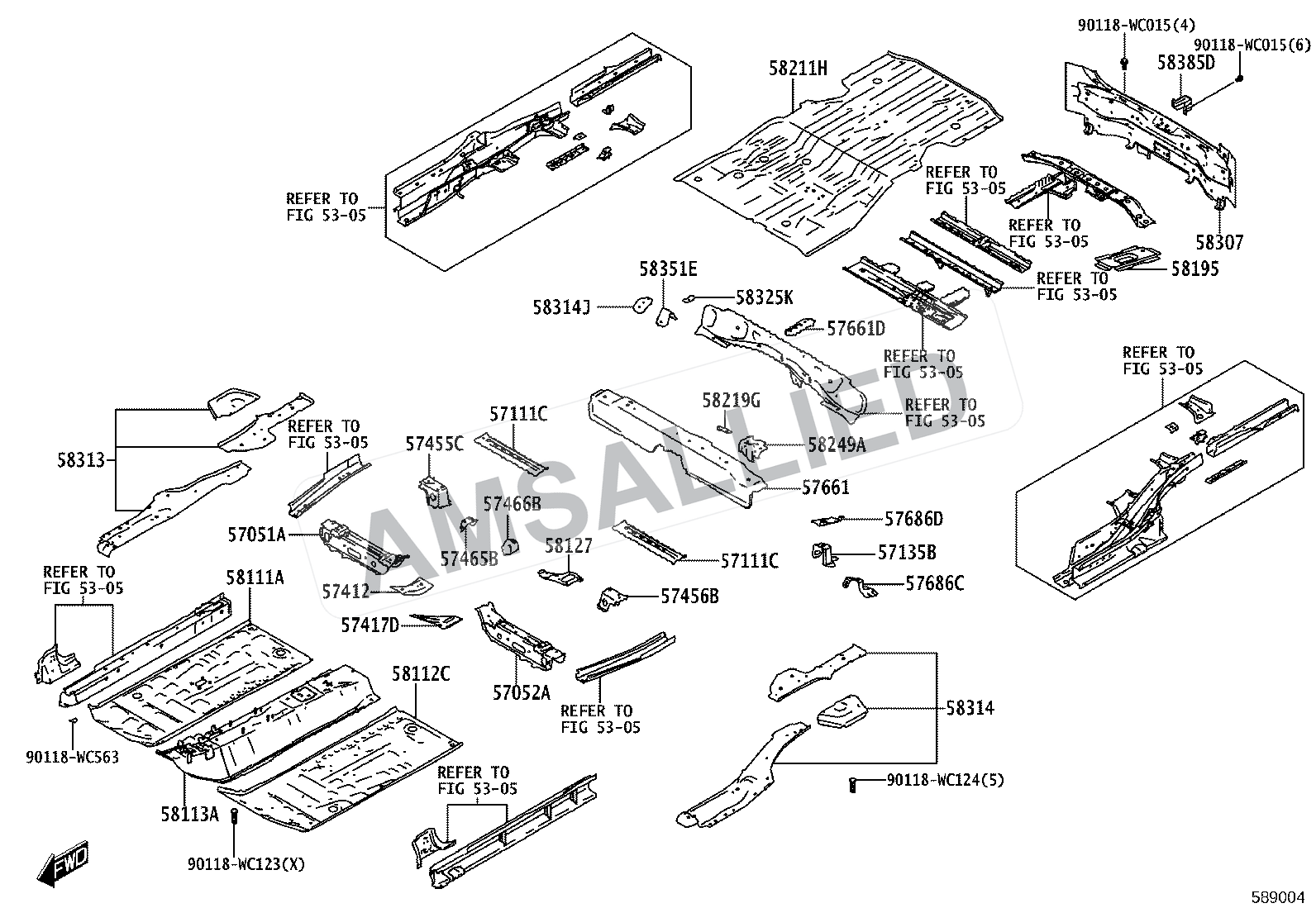

Figure 5801 · Floor Pan & Lower Back Panel
39 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
39 partsMember Sub-assy, Front Floor Cross, Rh
PNC 57051A
Member Sub-assy, Front Floor Cross, Lh
PNC 57052A
Bracket, Front Floor Side, Rh
PNC 57135B
Plate, Floor Side Rail, Lh
PNC 57412
Reinforcement, Floor Side, Inner Rh
PNC 57417D
Crossmember, Floor, No.1
PNC 57111C
Bracket, Front Seat Mounting, Outside Rh
PNC 57455C
Bracket, Front Seat Mounting, Outside Lh
PNC 57456B
Bracket, Front Seat, Inner
PNC 57465B
Bracket, Front Seat, Inside Lh
PNC 57466B
Panel, Rear Floor Side, Front Rh
PNC 57661
Brace, Rear Floor Panel
PNC 58325K
Member, Rear Floor Cross, Front
PNC 57661D
Bracket, Fuel Tank Mounting, No.3
PNC 57686C
Bracket, Rear Floor Mounting, No.1 Lh
PNC 57686D
Pan, Front Floor, Rh
PNC 58111A
Pan, Front Floor, Rh
PNC 58111A
Pan, Front Floor, Lh
PNC 58112C
Pan, Front Floor, Lh
PNC 58112C
Pan, Front Floor, Lh
PNC 58112C
Panel, Front Floor, Center
PNC 58113A
Patch, Front Floor Panel
PNC 58127
Support, Extinguisher
PNC 58195
Pan, Center Floor
PNC 58211H
Reinforcement, Rear Seat Mounting
PNC 58249A
Panel Sub-assy, Body Lower Back
PNC 58307
Panel, Rear Floor Side, Rh
PNC 58313
Panel, Rear Floor Side, Rh
PNC 58313
Panel, Rear Floor Side, Lh
PNC 58314J
Panel, Rear Floor Side, Lh
PNC 58314
Panel, Rear Floor Side, Lh
PNC 58314
Bracket, Spare Wheel Clamp
PNC 58351E
Bracket, Rear Bumper Cover
PNC 58385D
Patch, Seat Floor
PNC 58219G
Diagram Hardware / Fastener
PNC 90118WC563
Diagram Hardware / Fastener
PNC 90118WC123
Diagram Hardware / Fastener
PNC 90118WC124
Diagram Hardware / Fastener
PNC 90118WC015
