Body

Figure 5305 · Floor Side Member

19 genuine catalog part numbers · Production from 2023-08

Open interactive figure

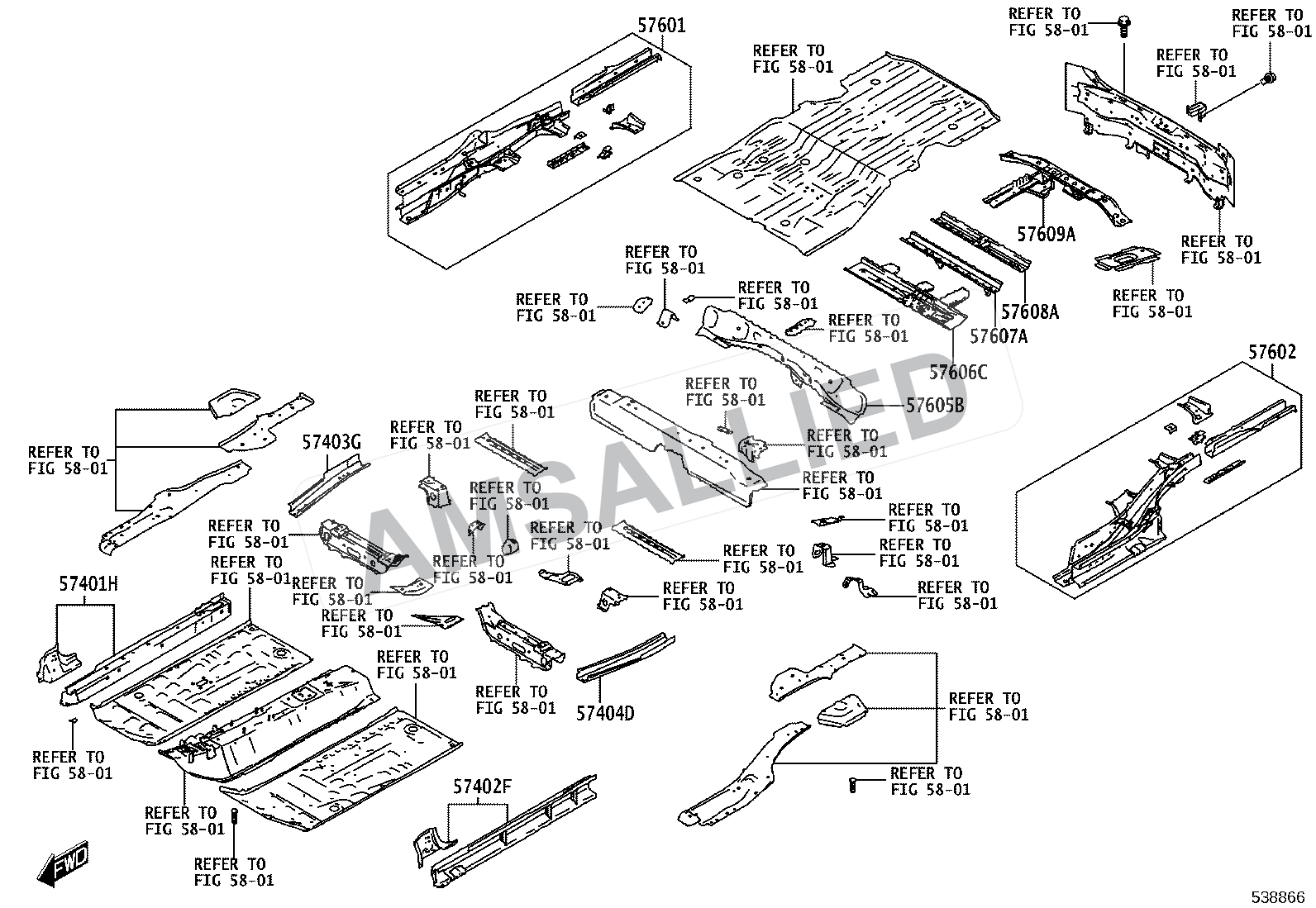

Toyota Rumion Floor Side Member exploded parts diagram, figure 5305 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

19 parts

57053-WC001

Reinforcement, Front Crossmember, No.1 Rh

PNC 57163C

57054-WC001

Reinforcement, Front Crossmember, No.1 Lh

PNC 57164B

57101-WC010

Member Sub-assy, Front Side, Inner Rh

PNC 57101E

57102-WC010

Member Sub-assy, Front Side, Inner Lh

PNC 57102C

57401-WC002

Member Sub-assy, Floor Side, Inner Rh

PNC 57401H

57402-WC002

Member Sub-assy, Floor Side, Inner Lh

PNC 57402F

57419-WC004

Member Sub-assy, Floor Side, Inner Rear Rh

PNC 57403G

57429-WC002

Member Sub-assy, Floor Side, Inner Rear Lh

PNC 57404D

57601-WC016

Member Sub-assy, Rear Floor Side, Rh

PNC 57601

57601-WC017

Member Sub-assy, Rear Floor Side, Rh

PNC 57601

57602-WC015

Member Sub-assy, Rear Floor Side, Lh

PNC 57602

57602-WC016

Member Sub-assy, Rear Floor Side, Lh

PNC 57602

57605-WC006

Member Sub-assy, Rear Floor Cross, No.1

PNC 57605B

57606-WC017

Member Sub-assy, Rear Floor Cross, No.2

PNC 57606C

57607-WC002

Member Sub-assy, Rear Floor Cross, No.3

PNC 57607A

57608-WC003

Member Sub-assy, Rear Floor Cross, No.4

PNC 57608A

57609-WC001

Member Sub-assy, Rear Floor Cross, No.5

PNC 57609A

58117-WC004

Member Sub-assy, Floor Side, Inner Rh

PNC 57401H

58118-WC004

Member Sub-assy, Floor Side, Inner Lh

PNC 57402F
