Plate, Radiator Upper Air Guide
PNC 16681A
Body

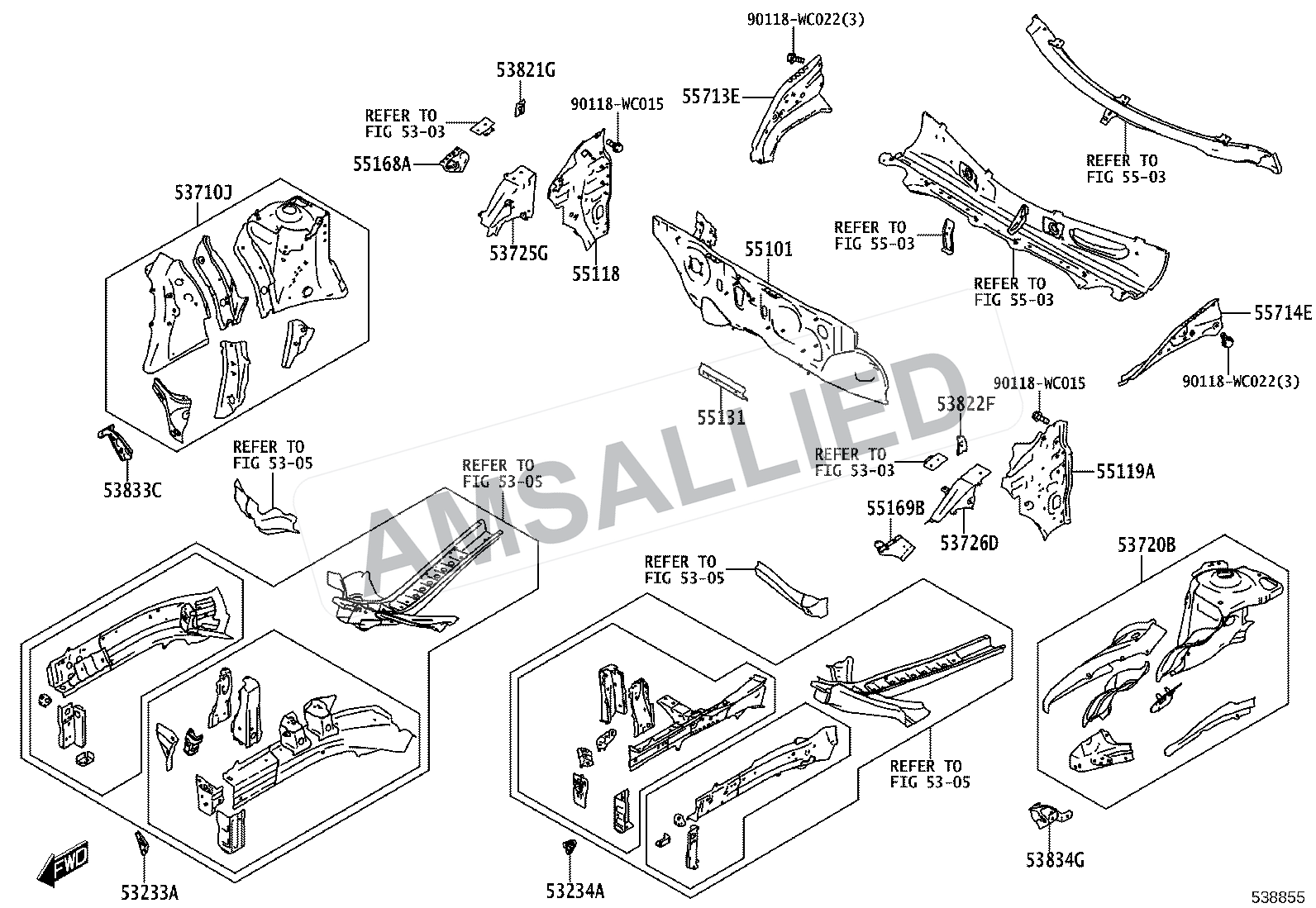

Figure 5304 · Front Fender Apron & Dash Panel
42 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
42 partsPlate, Radiator Lower Air Guide
PNC 16683A
Member, Front Panel, Upper
PNC 55744C
Member Sub-assy, Front Cross
PNC 57104A
Support Sub-assy, Radiator, Upper
PNC 53205
Bracket, Headlamp, No.1 Rh
PNC 53233A
Bracket, Headlamp, No.1 Lh
PNC 53234A
Bracket, Front End Panel Mounting, Rh
PNC 53257, 53258
Apron Assy, Front Fender, Rh
PNC 53710J
Apron Assy, Front Fender, Rh
PNC 53710J
Apron Assy, Front Fender, Lh
PNC 53720B
Apron, Front Fender No.2 Side, Rh
PNC 53725G
Apron, Front Fender No.2 Side, Lh
PNC 53726D
Plate, Front Fender Apron Mounting
PNC 53735
Bracket, Front Fender, Rear Rh
PNC 53821G
Bracket, Front Fender, Rear Lh
PNC 53822F
Reinforcement, Front Fender, Lower Rh
PNC 53833C
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Extension, Dash Panel, Rh
PNC 55118
Extension, Dash Panel, Lh
PNC 55119A
Reinforcement, Dash Panel
PNC 55131
Bracket, Front Fender Mounting, Rh
PNC 55168A
Bracket, Front Fender Mounting, Lh
PNC 55169B
Insulator Assy, Dash Panel
PNC 55210
Insulator Assy, Dash Panel
PNC 55210
Silencer, Front Panel
PNC 55211E
Insulator, Dash Panel Heat, No.1
PNC 55223B
Insulator, Dash Panel Heat, No.1
PNC 55223B
Silencer, Front Panel Side, No.1 Rh
PNC 55241
Silencer, Front Panel Side, No.1 Lh
PNC 55242
Panel, Cowl Top Side, Rh
PNC 55713E
Panel, Cowl Top Side, Lh
PNC 55714E
Reinforcement, Front Fender, Lower Lh
PNC 53834G
Cushion, Radiator Support
PNC 53202D
Diagram Hardware / Fastener
PNC 90118WC015
Diagram Hardware / Fastener
PNC 90118WC022
Diagram Hardware / Fastener
PNC 90118WC260
Diagram Hardware / Fastener
PNC 90118WC834
Diagram Hardware / Fastener
PNC 90118WC265
Diagram Hardware / Fastener
PNC 90118WC149
