Figure 5303 · Hood Lock & Hinge

12 genuine catalog part numbers · Production from 2023-08

Open interactive figure

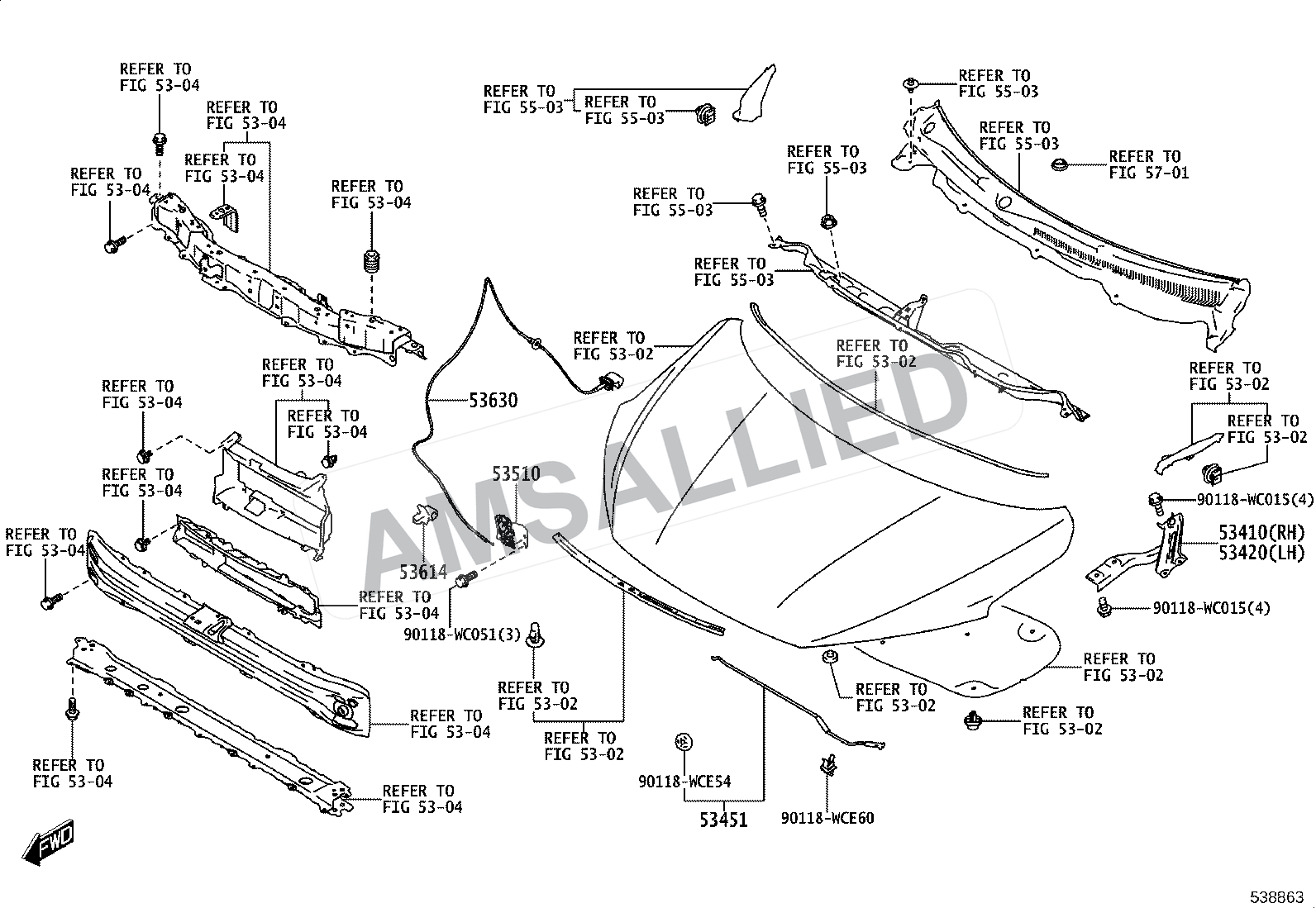

Toyota Rumion Hood Lock & Hinge exploded parts diagram, figure 5303 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

12 parts

Hinge Assy, Hood, Rh

PNC 53410

Base, Hood Hinge, Rh

PNC 53417

Base, Hood Hinge, Lh

PNC 53418

Hinge Assy, Hood, Lh

PNC 53420

Rod, Hood Support

PNC 53451

Lock Assy, Hood

PNC 53510

Clamp, Hood Lock Control Cable

PNC 53614

Cable Assy, Hood Lock Control

PNC 53630

Diagram Hardware / Fastener

PNC 90118WC015

Diagram Hardware / Fastener

PNC 90118WCE54

Diagram Hardware / Fastener

PNC 90118WCE60

Diagram Hardware / Fastener

PNC 90118WC051
