Body

Figure 5302 · Hood & Front Fender

23 genuine catalog part numbers · Production from 2023-08

Open interactive figure

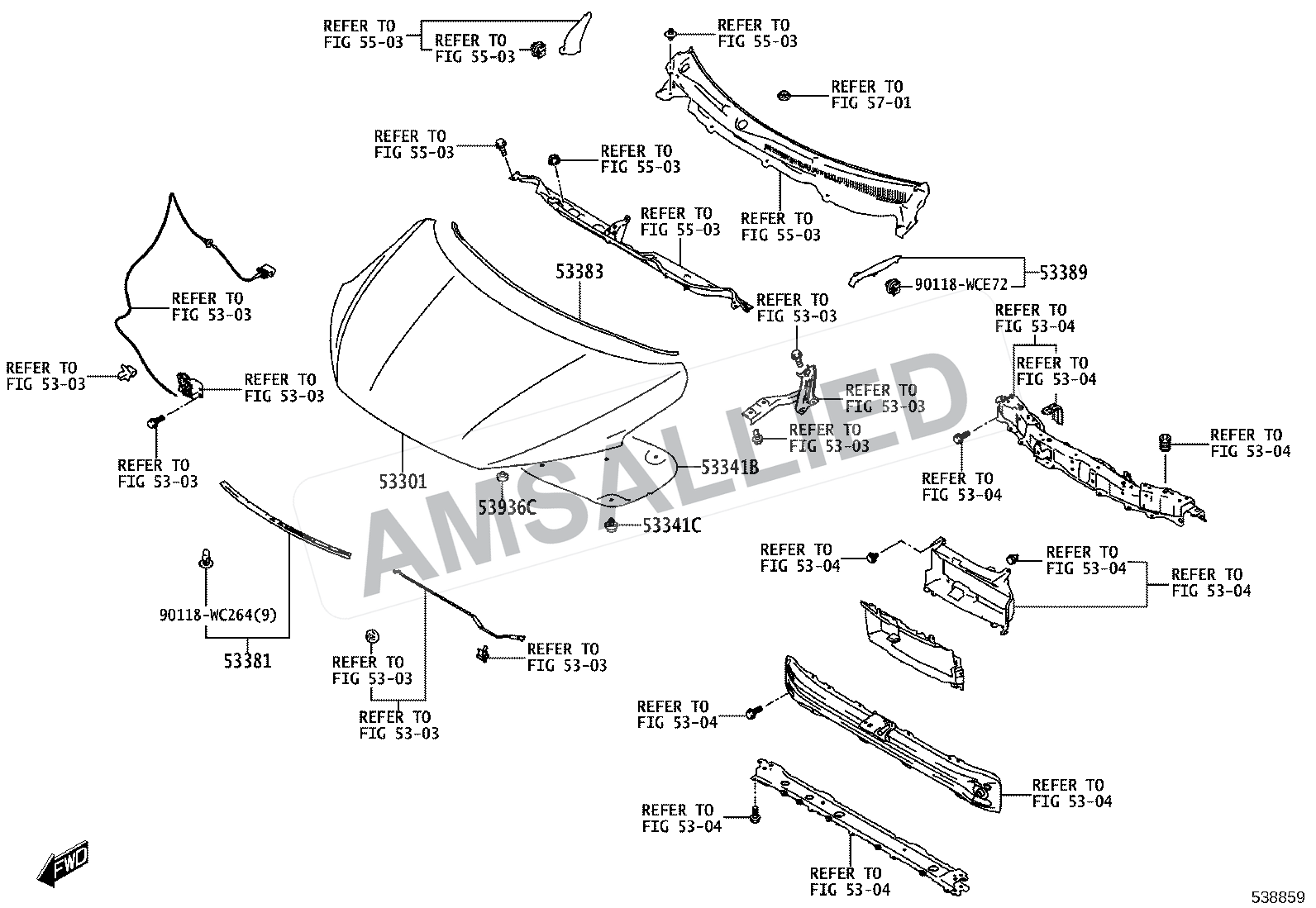

Toyota Rumion Hood & Front Fender exploded parts diagram, figure 5302 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

23 parts

52826-WC002

Protector, Front Side Panel, No.2 Lh

PNC 53824B

53301-WC005

Hood Sub-assy

PNC 53301

53341-WC004

Insulator, Hood

PNC 53341B

53383-WC005

Seal, Hood To Cowl Top

PNC 53383

53389-WC003

Seal, Hood To Cowl Top Side

PNC 53389

53395-WC001

Seal, Hood To Radiator Support

PNC 53381

53811-WC007

Fender Sub-assy, Front Rh

PNC 53801

53811-WC008

Fender Sub-assy, Front Rh

PNC 53801

53812-WC007

Fender Sub-assy, Front Lh

PNC 53802

53812-WC008

Fender Sub-assy, Front Lh

PNC 53802

53828-WC005

Protector, Front Fender Side Panel, Lh

PNC 53828K

53875-WC009

Liner, Front Fender, Rh

PNC 53875A

53876-WC009

Liner, Front Fender, Lh

PNC 53876A

90118-WC222

Cushion

PNC 53936C

90118-WCA24

Clip(for Hood Insulator)

PNC 53341C

90118-WCF29

Protector, Front Fender Side Panel, Rh

PNC 53827L

90118-WCF31

Protector, Front Side Panel, No.2 Rh

PNC 53823E

90118-WC264

Diagram Hardware / Fastener

PNC 90118WC264

90118-WCE72

Diagram Hardware / Fastener

PNC 90118WCE72

90118-WC015

Diagram Hardware / Fastener

PNC 90118WC015

90118-WC259

Diagram Hardware / Fastener

PNC 90118WC259

90118-WC260

Diagram Hardware / Fastener

PNC 90118WC260

90118-WCE49

Diagram Hardware / Fastener

PNC 90118WCE49
