Figure 5301 · Radiator Grille

6 genuine catalog part numbers · Production from 2023-08

Open interactive figure

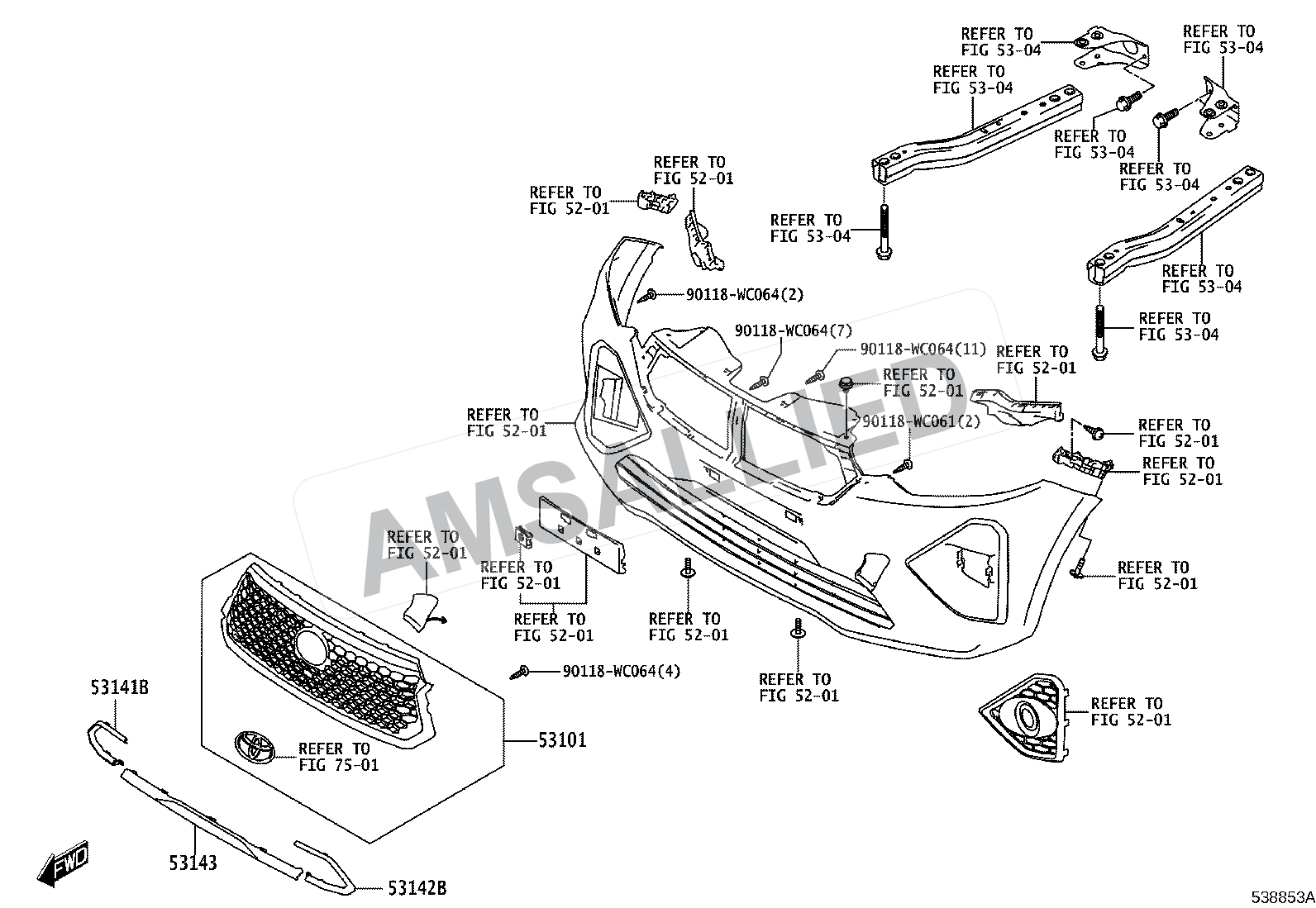

Toyota Rumion Radiator Grille exploded parts diagram, figure 5301 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

6 parts

Grille Sub-assy, Radiator

PNC 53101

Garnish, Radiator Grille, No.3

PNC 53143

Garnish, Radiator Grille, No.1

PNC 53141B

Radiator Grille Garnish, No.2

PNC 53142B

Diagram Hardware / Fastener

PNC 90118WC061

Diagram Hardware / Fastener

PNC 90118WC064
