Figure 5202 · Rear Bumper & Bumper Stay

10 genuine catalog part numbers · Production from 2023-08

Open interactive figure

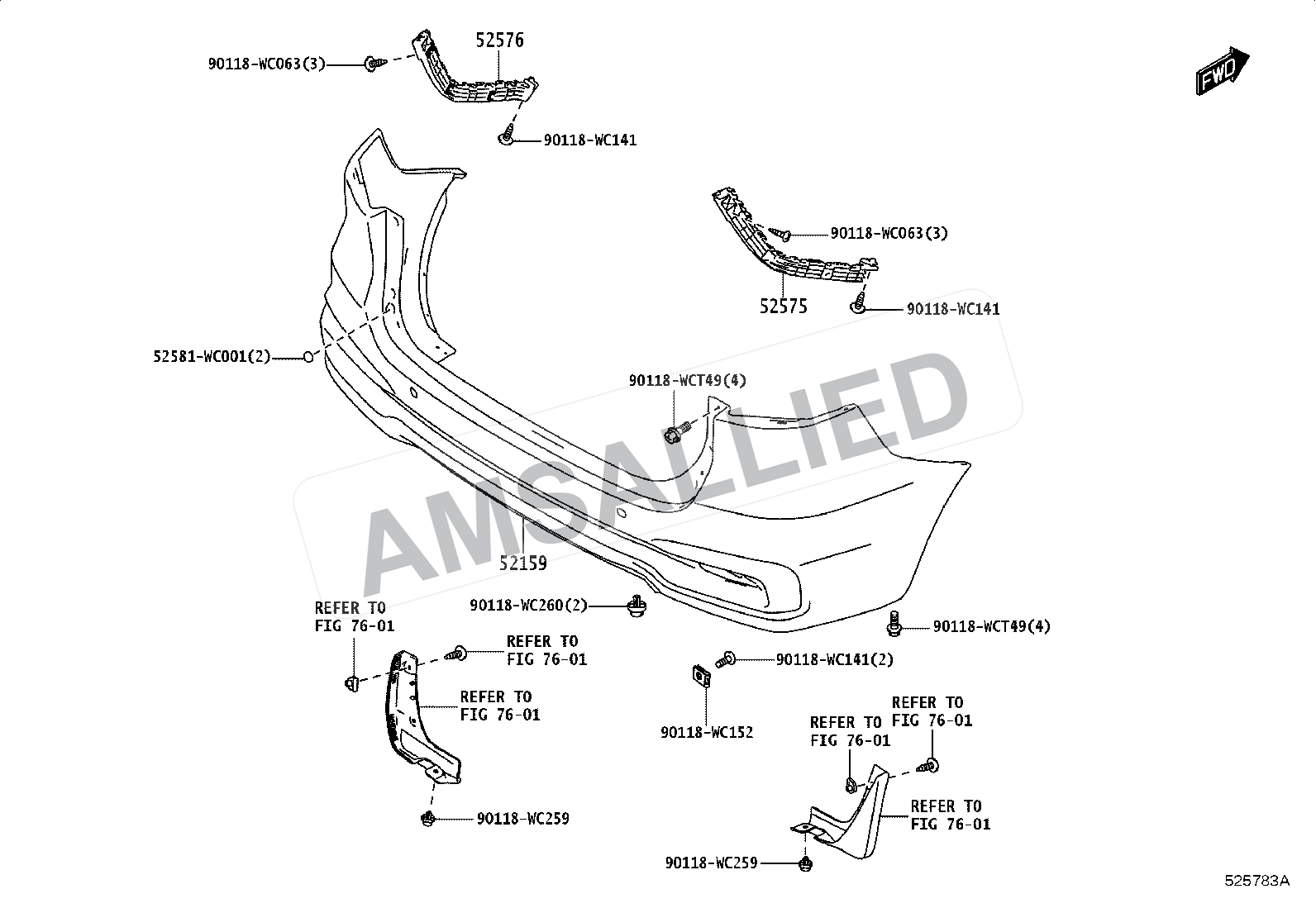

Toyota Rumion Rear Bumper & Bumper Stay exploded parts diagram, figure 5202 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

10 parts

Cover, Rear Bumper

PNC 52159

Retainer, Rear Bumper Side, Rh

PNC 52575

Retainer, Rear Bumper Side, Lh

PNC 52576

Diagram Hardware / Fastener

PNC 90118WC152

Diagram Hardware / Fastener

PNC 90118WC260

Diagram Hardware / Fastener

PNC 90118WC141

Diagram Hardware / Fastener

PNC 90118WC063

Diagram Hardware / Fastener

PNC 90118WCT49

Diagram Hardware / Fastener

PNC 90118WC259

Diagram Hardware / Fastener

PNC 52581WC001
