Body

Figure 5201 · Front Bumper & Bumper Stay

17 genuine catalog part numbers · Production from 2023-08

Open interactive figure

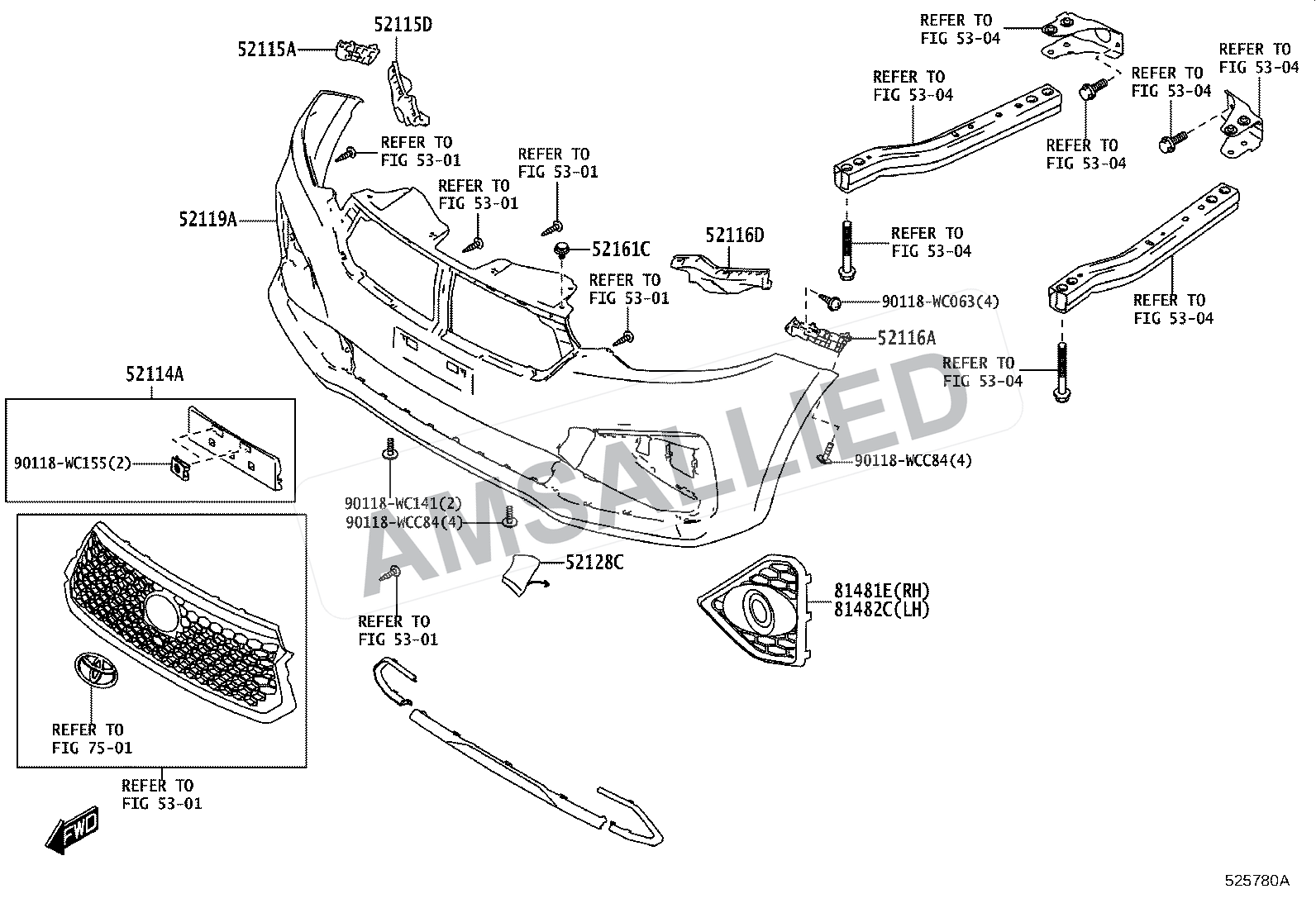

Toyota Rumion Front Bumper & Bumper Stay exploded parts diagram, figure 5201
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

17 parts
52114-WC002

Bracket, Front Bumper Extension Mounting

PNC 52114A

52535-WC006

Support, Front Bumper Side, No.2 Rh

PNC 52115D

52536-WC006

Support, Front Bumper Side, No.2 Lh

PNC 52116D

52601-WC004

Absorber Sub-assy, Front Bumper Energy

PNC 52601
