Figure 5104 · Spare Wheel Carrier

8 genuine catalog part numbers · Production from 2023-08

Open interactive figure

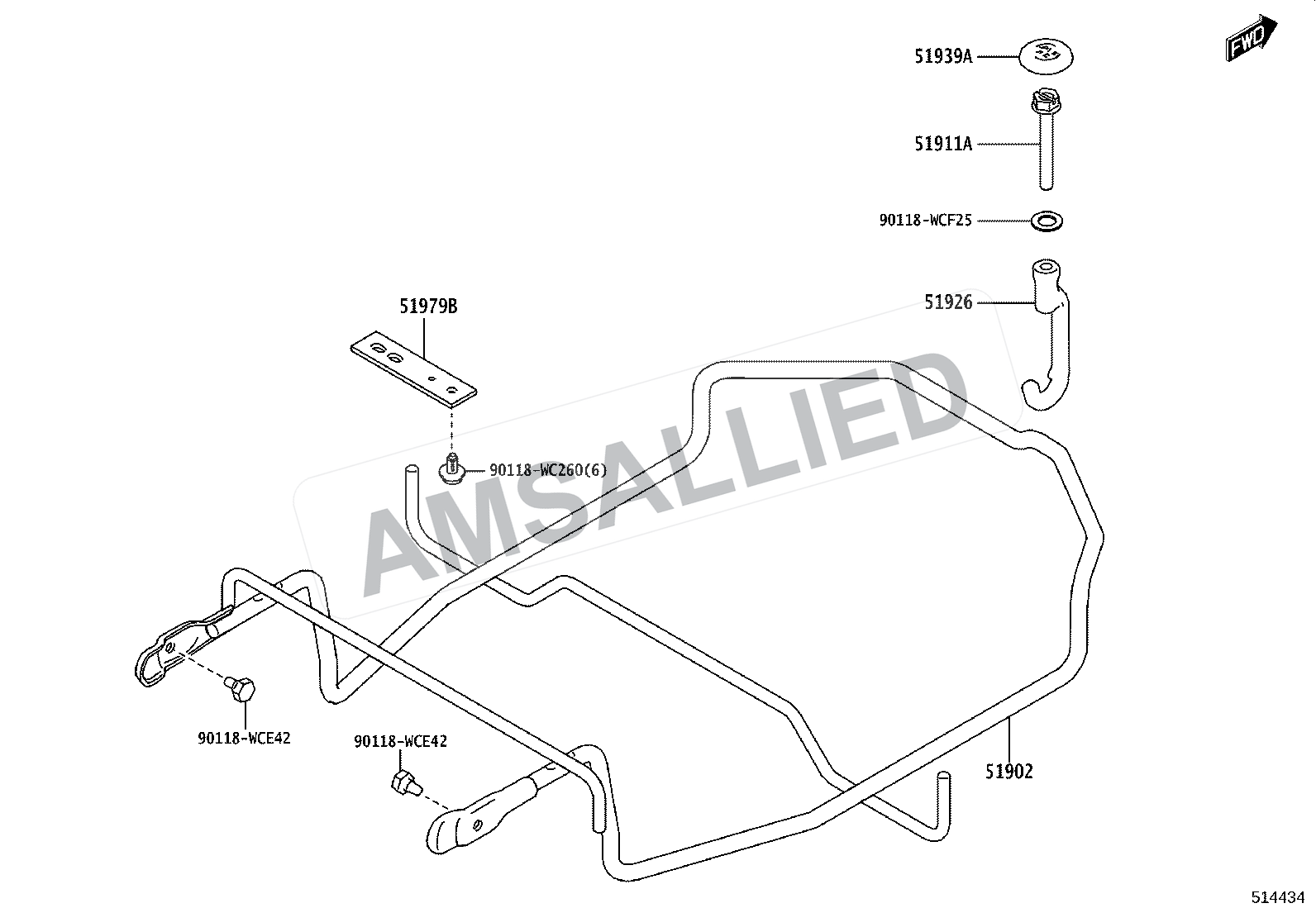

Toyota Rumion Spare Wheel Carrier exploded parts diagram, figure 5104 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

8 parts

Carrier Sub-assy, Spare Wheel

PNC 51902

Bolt, Spare Wheel

PNC 51911A

Hook, Spare Wheel Carrier Lock

PNC 51926

Cap, Spare Wheel Carrier Handle

PNC 51939A

Cushion, Spare Wheel Carrier Protector

PNC 51979B

Diagram Hardware / Fastener

PNC 90118WC260

Diagram Hardware / Fastener

PNC 90118WCE42

Diagram Hardware / Fastener

PNC 90118WCF25
