Figure 5102 · Suspension Crossmember & Under Cover

10 genuine catalog part numbers · Production from 2023-08

Open interactive figure

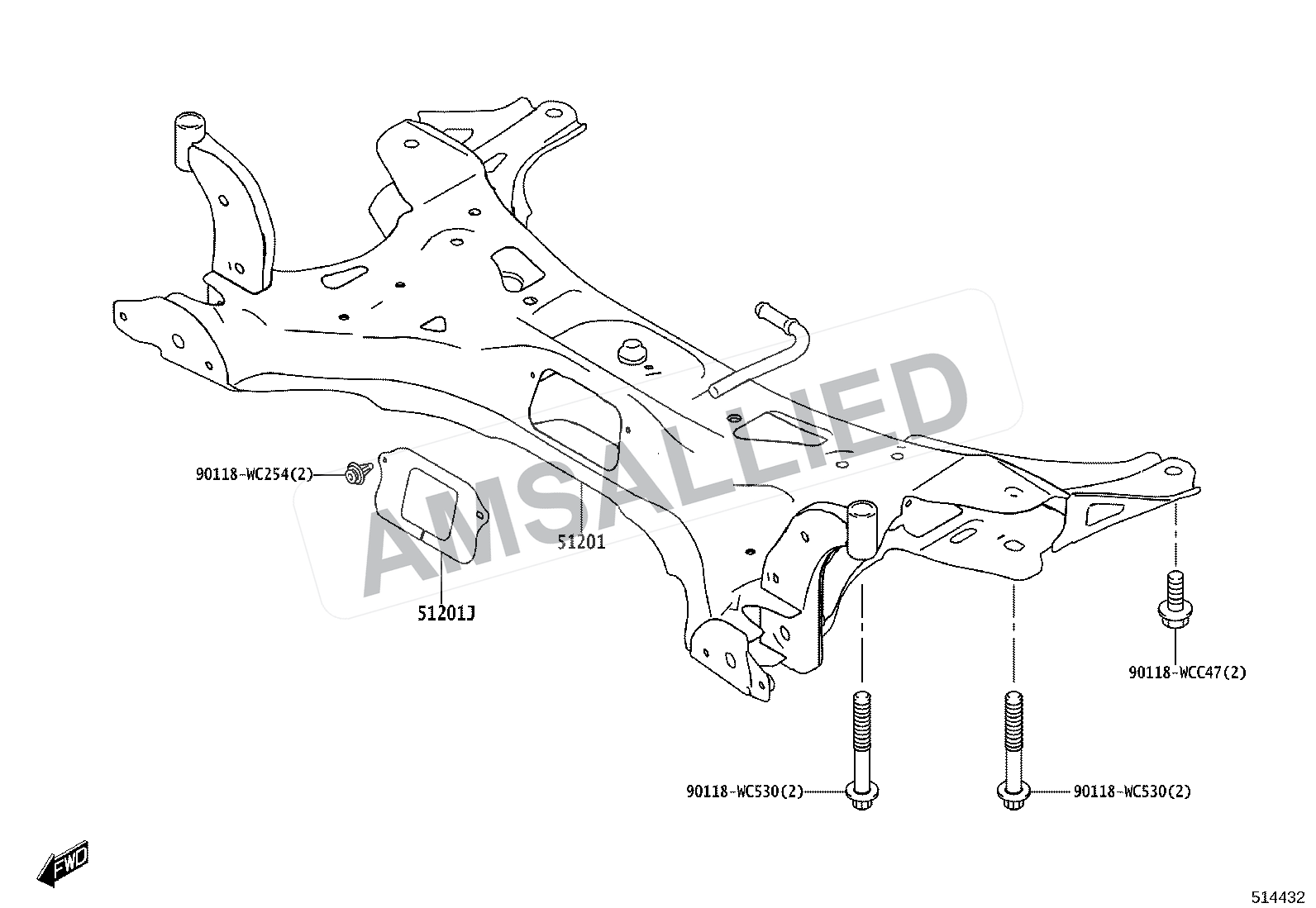

Toyota Rumion Suspension Crossmember & Under Cover exploded parts diagram, figure 5102 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

10 parts

Crossmember Sub-assy, Front Suspension

PNC 51201

Cover, Engine Under, Rh

PNC 51441C

Cover, Engine Under, Lh

PNC 51442C

Cover, Front Suspension Crossmember Hole

PNC 51201J

Diagram Hardware / Fastener

PNC 90118WC530

Diagram Hardware / Fastener

PNC 90118WC254

Diagram Hardware / Fastener

PNC 90118WCC47

Diagram Hardware / Fastener

PNC 9017906104

Diagram Hardware / Fastener

PNC 9015960477

Diagram Hardware / Fastener

PNC 9004105546
