Figure 4804 · Rear Spring & Shock Absorber

10 genuine catalog part numbers · Production from 2023-08

Open interactive figure

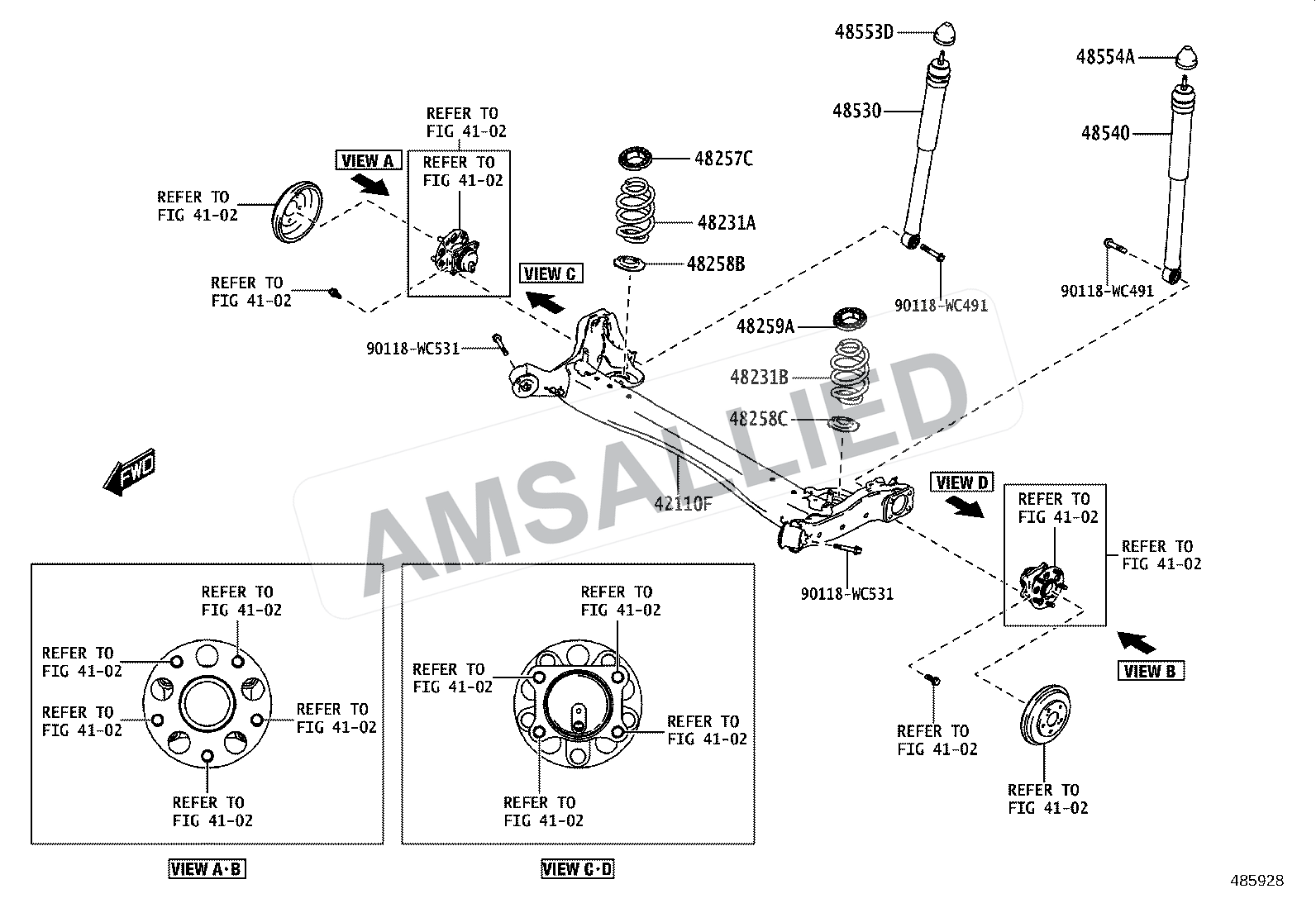

Toyota Rumion Rear Spring & Shock Absorber exploded parts diagram, figure 4804
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

10 parts
48257-WC004

Insulator, Rear Coil Spring, Upper Rh

PNC 48257C, 48259A

48258-WC004

Insulator, Rear Coil Spring, Lower Rh

PNC 48258B, 48258C

48530-WC026

Absorber Assy, Shock, Rear Rh

PNC 48530, 48540

48530-WC028

Absorber Assy, Shock, Rear Rh

PNC 48530, 48540

48553-WC001

Cap, Rear Shock Absorber, Rh

PNC 48553D, 48554A
