Figure 4802 · Front Axle Arm & Steering Knuckle

10 genuine catalog part numbers · Production from 2023-08

Open interactive figure

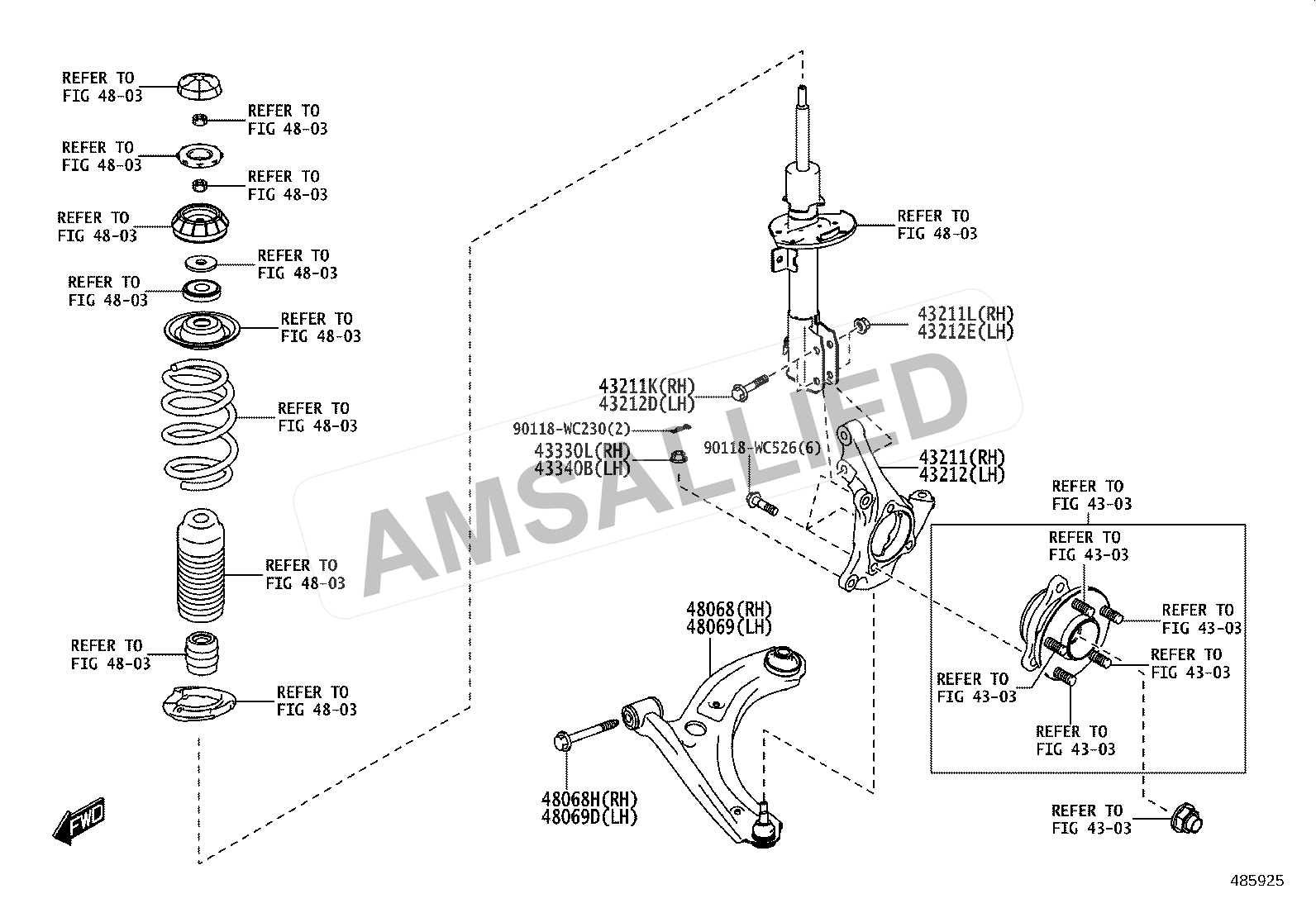

Toyota Rumion Front Axle Arm & Steering Knuckle exploded parts diagram, figure 4802 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

10 parts

Knuckle, Steering, Rh

PNC 43211

Knuckle, Steering, Lh

PNC 43212

Arm Sub-assy, Front Suspension, Lower No.1 Rh

PNC 48068

Arm Sub-assy, Front Suspension, Lower No.1 Lh

PNC 48069

Nut, Castle (for Front Lower Ball Joint Rh)

PNC 43330L, 43340B

Nut (for Steering Knuckle Rh)

PNC 43211L, 43212E

Bolt(for Front Suspension Lower Arm No.1 Rh)

PNC 48068H, 48069D

Bolt (for Steering Knuckle Rh)

PNC 43211K, 43212D

Diagram Hardware / Fastener

PNC 90118WC526

Diagram Hardware / Fastener

PNC 90118WC230
