Actuator Assy, Brake
PNC 44510
Powertrain / Chassis

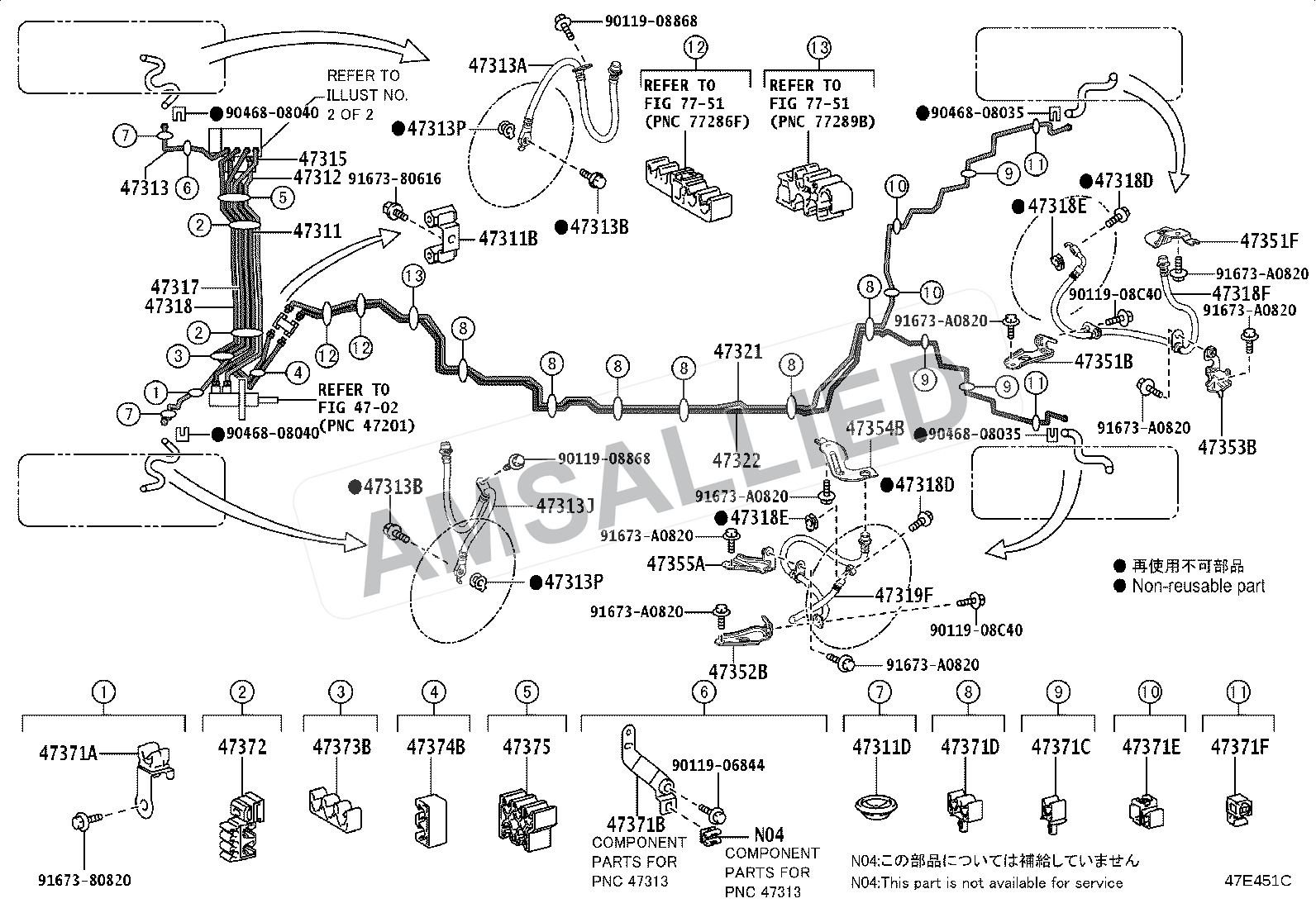

Figure 4708 · Brake Tube & Clamp
37 genuine catalog part numbers · Production from 2023-08
Part numbers in this diagram
37 partsActuator Assy, Brake
PNC 44510
Actuator Assy, Brake
PNC 44510
Damper, Brake Actuator
PNC 44599A
Bracket Assy, Brake Actuator
PNC 44590
Tube, Front Brake, No.1
PNC 47311
Tube, Front Brake, No.2
PNC 47312
Tube, Front Brake, No.3
PNC 47313
Tube, Front Brake, No.5
PNC 47315
Tube, Front Brake, No.6
PNC 47316
Tube, Front Brake, No.7
PNC 47317
Tube, Rear Brake, No.1
PNC 47321
Tube, Rear Brake, No.2
PNC 47322
Tube, Rear Brake, No.3
PNC 47323
Tube, Rear Brake, No.4
PNC 47324
Hose, Flexible(for Rear Lh)
PNC 47319F
Clamp, Brake Tube, No.2
PNC 47372
Clamp, Brake Tube, No.3
PNC 47373B
Clamp, Brake Tube, No.4
PNC 47374B, 47375
Clamp, Brake Tube, No.7
PNC 47371C, 47371D, 47371E
Clamp, Brake Tube, No.1
PNC 47371A
Clamp, Brake Tube, No.6
PNC 47371B
Hose, Flexible, No.1(for Front)
PNC 47313A
Diagram Hardware / Fastener
PNC 9167380820
Diagram Hardware / Fastener
PNC 91673A0820
Diagram Hardware / Fastener
PNC 9011908C40
Diagram Hardware / Fastener
PNC 9046808040
Diagram Hardware / Fastener
PNC 9046808035
Diagram Hardware / Fastener
PNC 9011908868
Diagram Hardware / Fastener
PNC 9167380616
Diagram Hardware / Fastener
PNC 9011906844
Diagram Hardware / Fastener
PNC 90118WCU48
Diagram Hardware / Fastener
PNC 90118WC052
Diagram Hardware / Fastener
PNC 90118WC228
Diagram Hardware / Fastener
PNC 90118WC824
Diagram Hardware / Fastener
PNC 90118WC545
Diagram Hardware / Fastener
PNC 47389WC001
