Figure 4706 · Rear Drum Brake Wheel Cylinder & Backing Plate

20 genuine catalog part numbers · Production from 2023-08

Open interactive figure

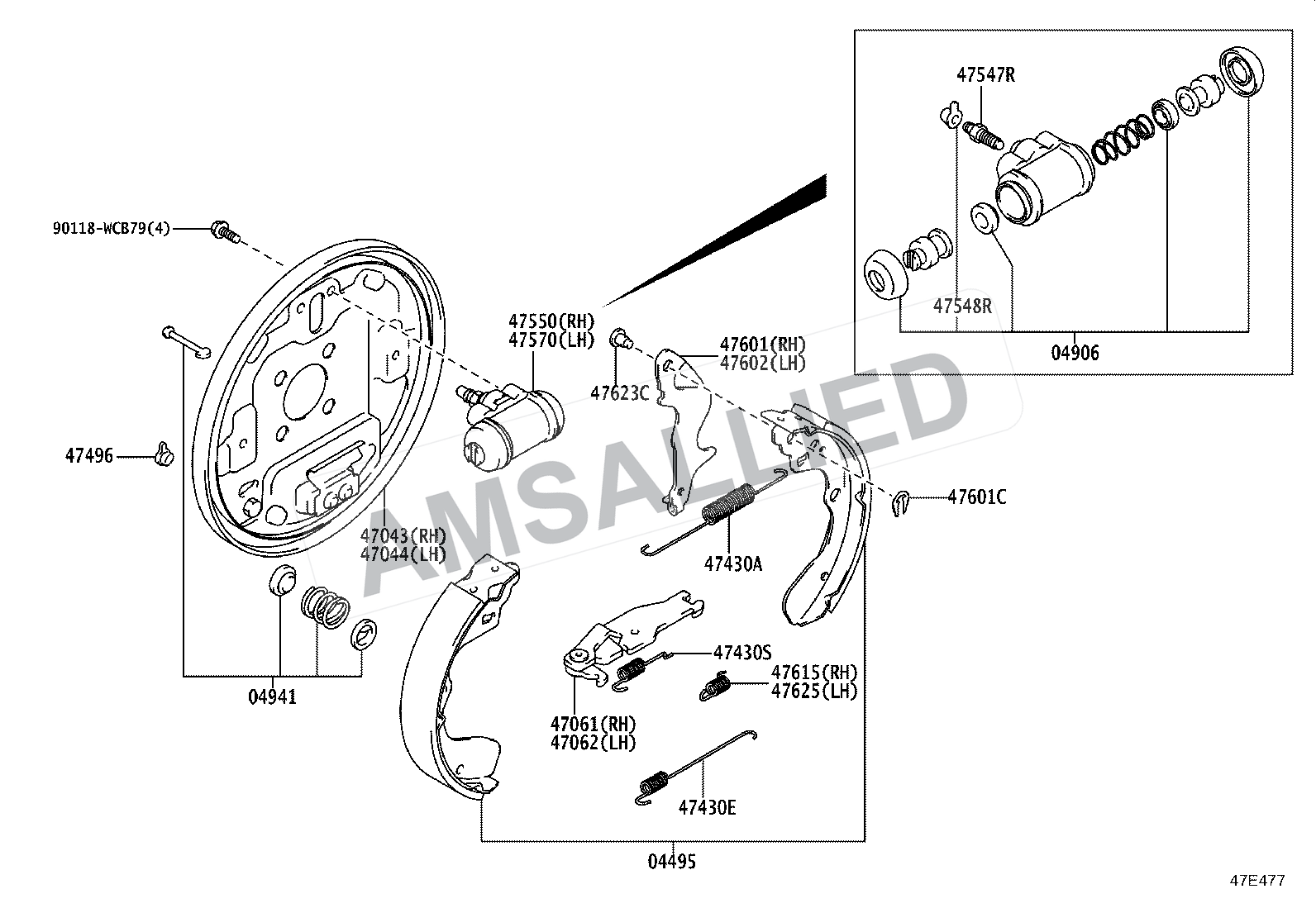

Toyota Rumion Rear Drum Brake Wheel Cylinder & Backing Plate exploded parts diagram, figure 4706
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

20 parts
04941-WC003

Spring Kit, Rear Brake Shoe Hold Down

PNC 04941

31478-WC003

Cap, Bleeder Plug(for Drum Brake, Rear)

PNC 47548R

47043-WC007

Plate Sub-assy, Brake Backing, Rear Rh

PNC 47043

47044-WC007

Plate Sub-assy, Brake Backing, Rear Lh

PNC 47044

47547-WC005

Plug, Bleeder(for Drum Brake, Rear)

PNC 47547R

47550-WC005

Cylinder Assy, Rear Wheel Brake(for Rh, Front Or Upper)

PNC 47550, 47570

47643-WC003

Lever Sub-assy, Parking Brake Shoe, Rh(for Rear Brake)

PNC 47601

47644-WC003

Lever Sub-assy, Parking Brake Shoe, Lh (for Rear Brake)

PNC 47602

90118-WCB38

Spring, Tension(for Rear Brake Shoe Return)

PNC 47430A

90118-WCB39

Spring, Tension(for Rear Brake Shoe Return)

PNC 47430E

90118-WCB41

Spring, Tension(for Parking Brake Shoe Strut)

PNC 47430S

90118-WCB42

Spring, Rear Brake Strut Anti-rattle, Rh

PNC 47615, 47625
