Figure 4705 · Front Disc Brake Caliper & Dust Cover

14 genuine catalog part numbers · Production from 2023-08

Open interactive figure

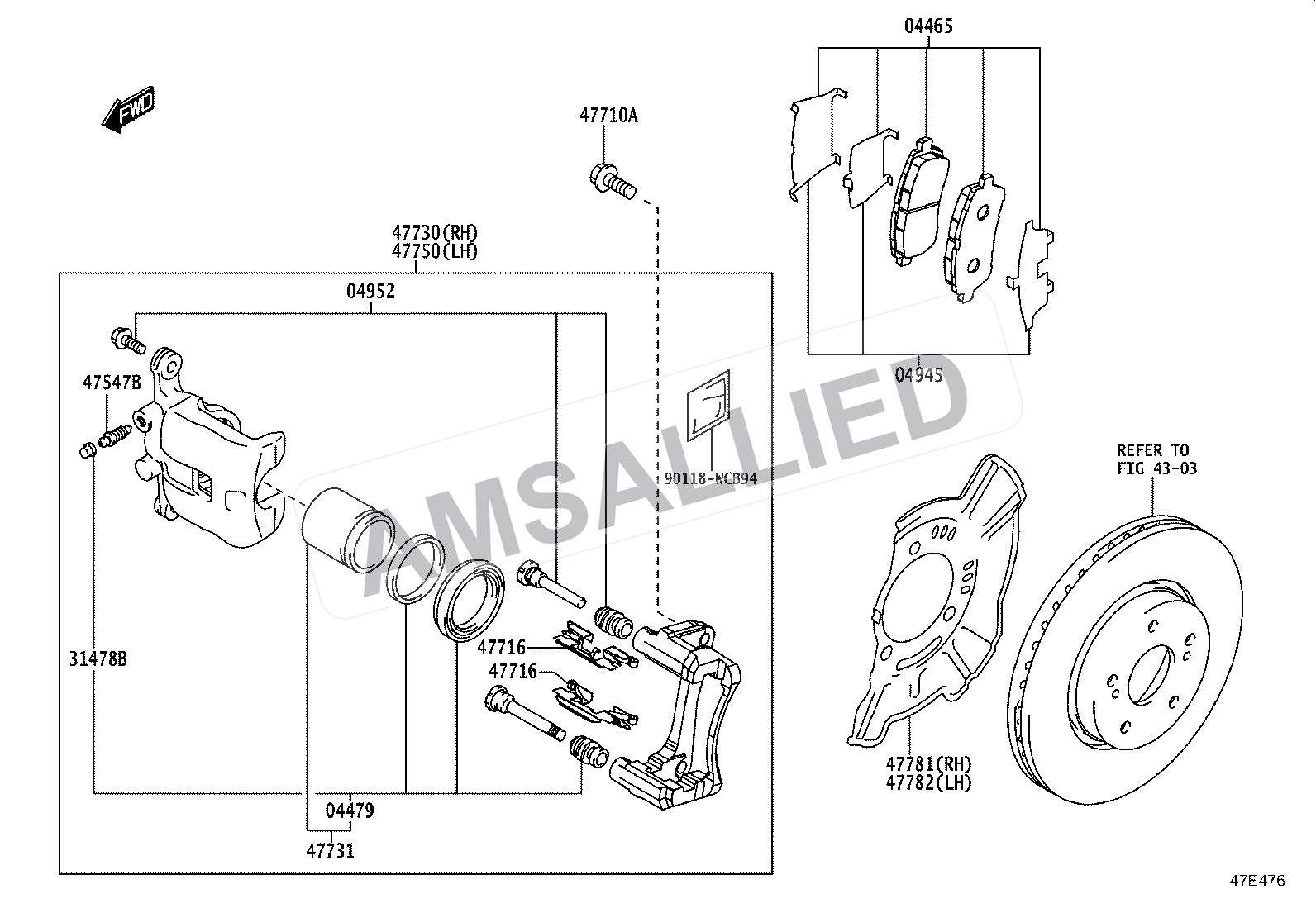

Toyota Rumion Front Disc Brake Caliper & Dust Cover exploded parts diagram, figure 4705 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

14 parts

Pad Kit, Disc Brake, Front

PNC 04465

Cylinder Kit, Disc Brake, Front

PNC 04479

Shim Kit, Anti Squeal, Front

PNC 04945

Pin Kit, Front Disc Brake Cylinder Slide

PNC 04952

Cap, Bleeder Plug(for Front Disc Brake)

PNC 31478B

Plug, Bleeder(for Front Disc Brake)

PNC 47547B

Plate, Pad Support, No.1(for Front Disc Brake)

PNC 47716

Cylinder Assy, Front Disc Brake, Rh

PNC 47730

Piston, Front Disc Brake

PNC 47731

Cylinder Assy, Disc Brake, Lh

PNC 47750

Cover, Disc Brake Dust, Front Rh

PNC 47781

Cover, Disc Brake Dust, Front Lh

PNC 47782

Bolt, Hexagon(for Front Disc Brake Caliper)

PNC 47710A

Diagram Hardware / Fastener

PNC 90118WCB94
