Figure 4702 · Brake Master Cylinder

11 genuine catalog part numbers · Production from 2023-08

Open interactive figure

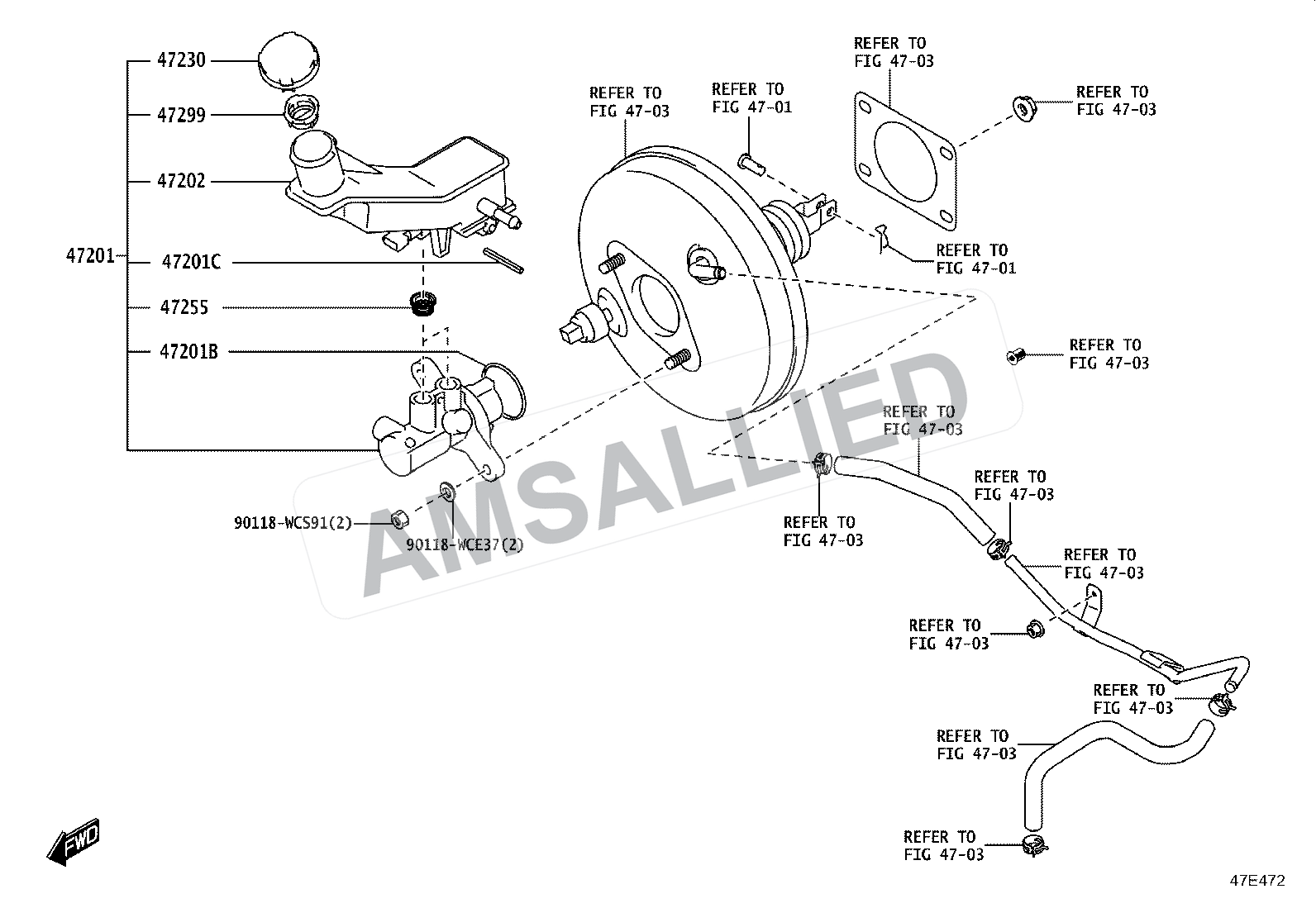

Toyota Rumion Brake Master Cylinder exploded parts diagram, figure 4702
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

11 parts
47220-WC002

Reservoir Sub-assy, Brake Master Cylinder

PNC 47202

47220-WC014

Reservoir Sub-assy, Brake Master Cylinder

PNC 47202

47230-WC001

Cap Assy, Brake Master Cylinder Reservoir Filler

PNC 47230

47299-WC001

Strainer, Brake Master Cylinder Reservoir

PNC 47299

90118-WC543

Ring, O(for Brake Master Cylinder)

PNC 47201B
