Figure 4601 · Parking Brake & Cable

9 genuine catalog part numbers · Production from 2023-08

Open interactive figure

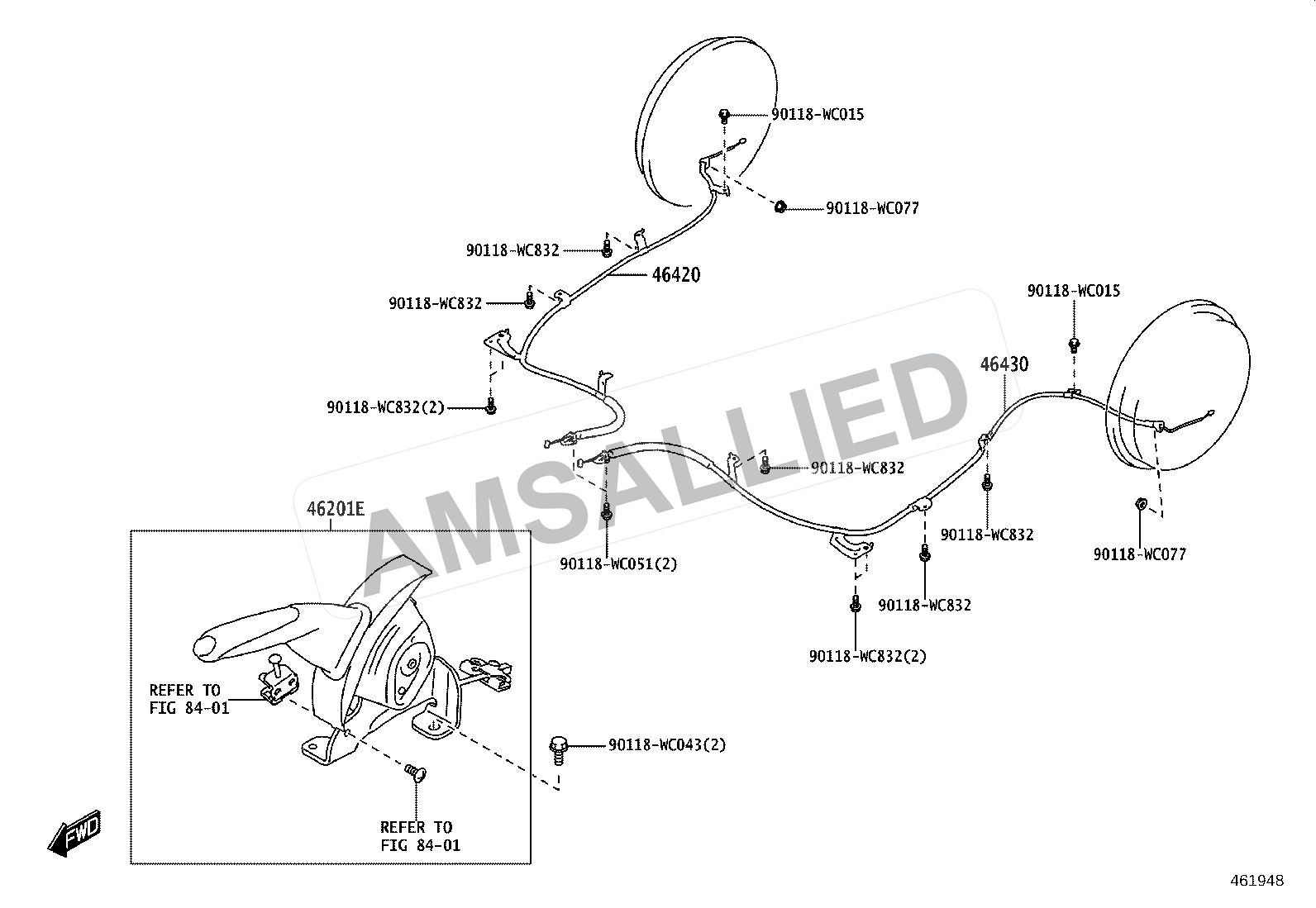

Toyota Rumion Parking Brake & Cable exploded parts diagram, figure 4601 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

9 parts

Lever Sub-assy, Parking Brake

PNC 46201E

Lever Sub-assy, Parking Brake

PNC 46201E

Cable Assy, Parking Brake, No.2

PNC 46420

Cable Assy, Parking Brake, No.3

PNC 46430

Diagram Hardware / Fastener

PNC 90118WC043

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WC832

Diagram Hardware / Fastener

PNC 90118WC051

Diagram Hardware / Fastener

PNC 90118WC015
