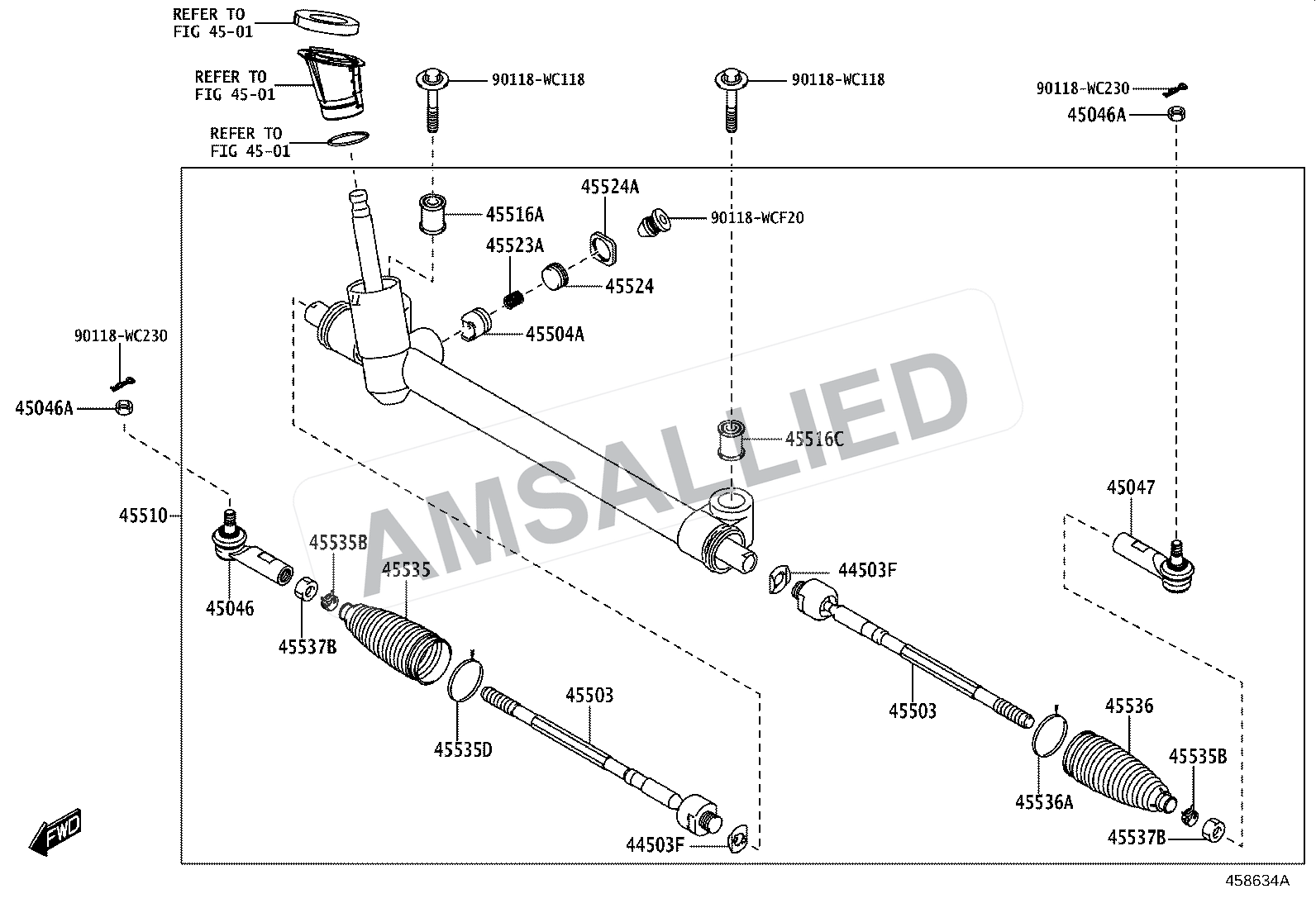

Figure 4505 · Front Steering Gear & Link

45046-WC002

End Sub-assy, Tie Rod, Rh

PNC 45046, 45047

45503-WC007

End Sub-assy, Steering Rack

PNC 45503

45504-WC003

Guide Sub-assy, Rack

PNC 45504A

45510-WC010

Gear Assy, Steering

PNC 45510

45516-WC003

Bush, Steering Rack Housing, No.1

PNC 45516A

45516-WC004

Bush, Steering Rack Housing, No.2

PNC 45516C

45524-WC005

Cap, Steering Rack Guide Spring

PNC 45524

45535-WC004

Boot, Steering Rack, No.1

PNC 45535, 45536

90118-WC148

Nut, Castle(for Tie Rod End)

PNC 45046A

90118-WCB23

Nut, Rack End Lock

PNC 45537B

90118-WCB24

Washer, Claw(for Power Steering Rack End)

PNC 44503F

90118-WCB25

Clip(for Steering Rack Boot)

PNC 45535B

90118-WCC11

Clamp(for Steering Rack Boot No.1)

PNC 45535D, 45536A

90118-WCF18

Spring(for Steering Gear Rack Guide)

PNC 45523A

90118-WCF19

Nut(for Steering Rack Guide Spring Cap)

PNC 45524A

90118-WCF20

Diagram Hardware / Fastener

PNC 90118WCF20

90118-WC230

Diagram Hardware / Fastener

PNC 90118WC230

90118-WC118

Diagram Hardware / Fastener

PNC 90118WC118
