Powertrain / Chassis

Figure 4501 · Steering Column & Shaft

26 genuine catalog part numbers · Production from 2023-08

Open interactive figure

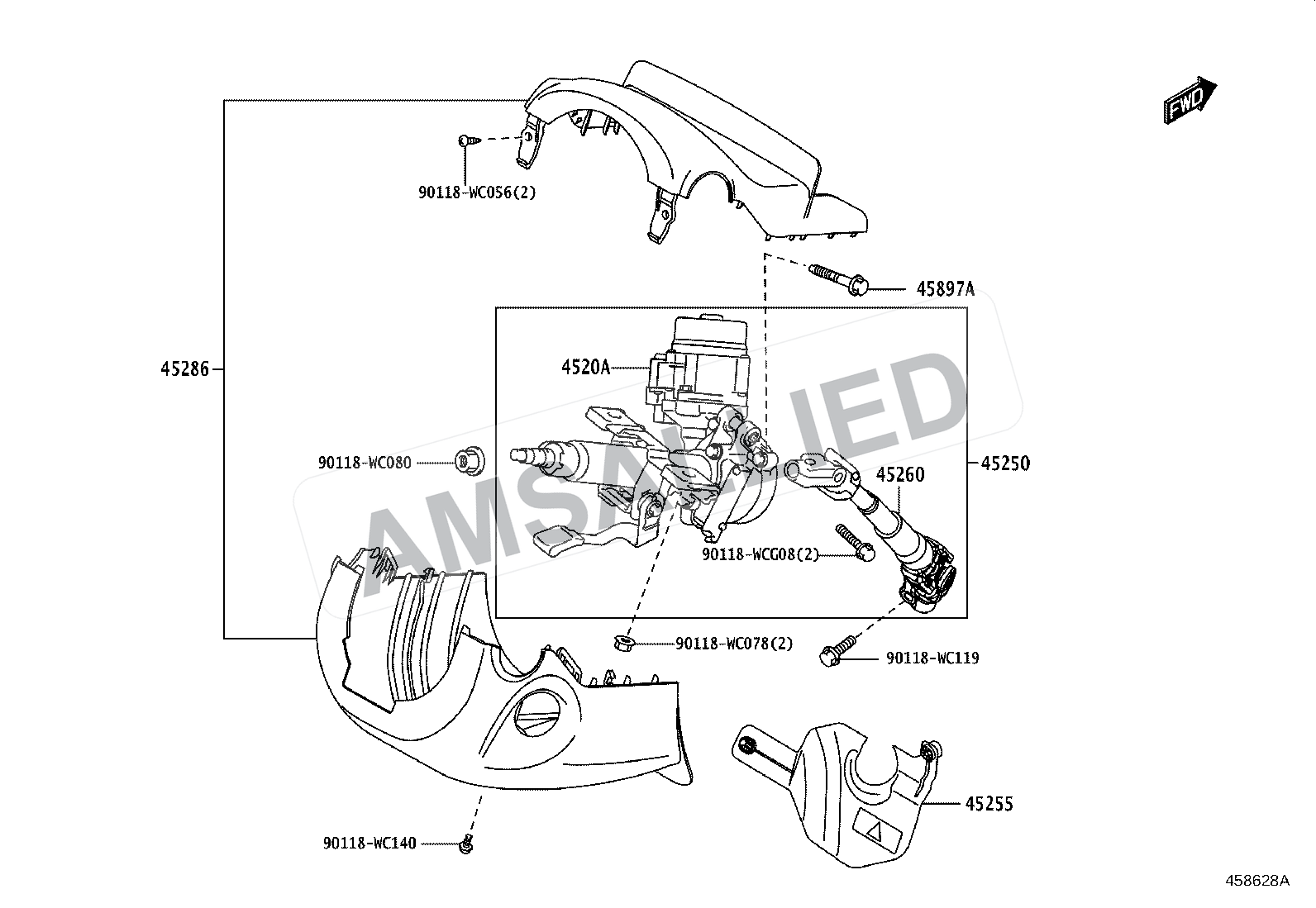

Toyota Rumion Steering Column & Shaft exploded parts diagram, figure 4501
AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

26 parts
45020-WC004

Actuator Or Upper Bracket Assy, Steering Lock

PNC 45020B

4520A-WC010

Column Sub-assy, Electric Power Steering

PNC 4520A

4520A-WC011

Column Sub-assy, Electric Power Steering

PNC 4520A

45260-WC008

Shaft Assy, Steering Intermediate, No.2

PNC 45260

45268-WC006

Cover Sub-assy, Steering Column Hole, No.1

PNC 45025D

90118-WCA11

Ring, O(for Steering Column Hole Cover)

PNC 45025A
