Powertrain / Chassis

Figure 4302 · Front Drive Shaft

33 genuine catalog part numbers · Production from 2023-08

Open interactive figure

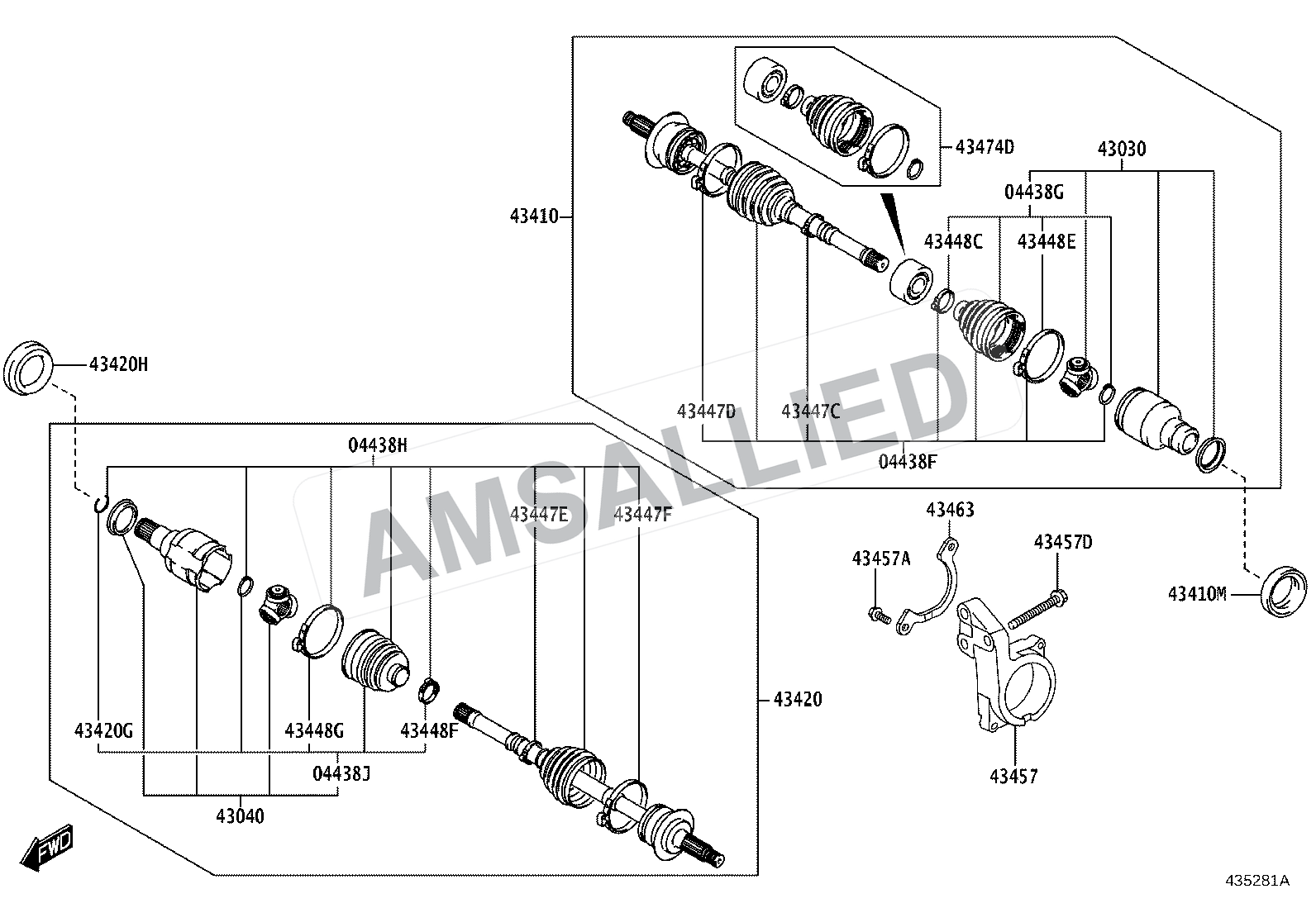

Toyota Rumion Front Drive Shaft exploded parts diagram, figure 4302 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

33 parts

04427-WC031

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04427-WC032

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04427-WC033

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC034

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04437-WC009

Boot Kit, Front Drive Shaft Inboard Joint, Lh

PNC 04438J

04437-WC011

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G

04437-WC023

Boot Kit, Front Drive Shaft Inboard Joint, Lh

PNC 04438J

04437-WC024

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G

42345-WC007

Clamp, No.2 (for Front Axle Outboard Joint Boot Rh)

PNC 43447D, 43447F

42345-WC008

Clamp, No.2 (for Front Axle Outboard Joint Boot Rh)

PNC 43447D, 43447F

42345-WC009

Clamp (for Front Axle Outboard Joint Boot Rh)

PNC 43447C, 43447E, 43448C, 43448F

42345-WC010

Clamp (for Front Axle Inboard Joint Boot Rh)

PNC 43448C, 43448F

42345-WC018

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

42345-WC044

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

43030-WC012

Joint Assy, Front Drive Inboard, Rh

PNC 43030

43030-WC013

Joint Assy, Front Drive Inboard, Rh

PNC 43030

43040-WC009

Joint Assy, Front Drive Inboard, Lh

PNC 43040

43040-WC020

Joint Assy, Front Drive Inboard, Lh

PNC 43040

43410-WC023

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC024

Shaft Assy, Front Drive, Rh

PNC 43410

43420-WC022

Shaft Assy, Front Drive, Lh

PNC 43420

43420-WC023

Shaft Assy, Front Drive, Lh

PNC 43420

43457-WC001

Bracket, Drive Shaft Bearing

PNC 43457

43457-WC002

Bracket, Drive Shaft Bearing

PNC 43457

43463-WC001

Retainer, Drive Shaft Bearing

PNC 43463

43474-WC006

Damper, Front Drive Shaft, Rh

PNC 43474D

43474-WC016

Damper, Front Drive Shaft, Rh

PNC 43474D

90118-WC033

Bolt (for Drive Shaft Bearing Bracket Setting No.1)

PNC 43457A, 43457D

90118-WCB19

Ring, Hole Snap (for Front Drive Shaft Lh)

PNC 43420G

90118-WCK75

Oil Seal, Front Drive Shaft, Rh

PNC 43410M

90118-WCK76

Oil Seal, Front Drive Shaft, Lh

PNC 43420H

90118-WCT25

Bolt (for Drive Shaft Bearing Bracket Setting No.1)

PNC 43457A, 43457D

90118-WCT28

Ring, Hole Snap (for Front Drive Shaft Lh)

PNC 43420G
