Figure 3514 · Oil Cooler & Tube (atm)

10 genuine catalog part numbers · Production from 2023-08

Open interactive figure

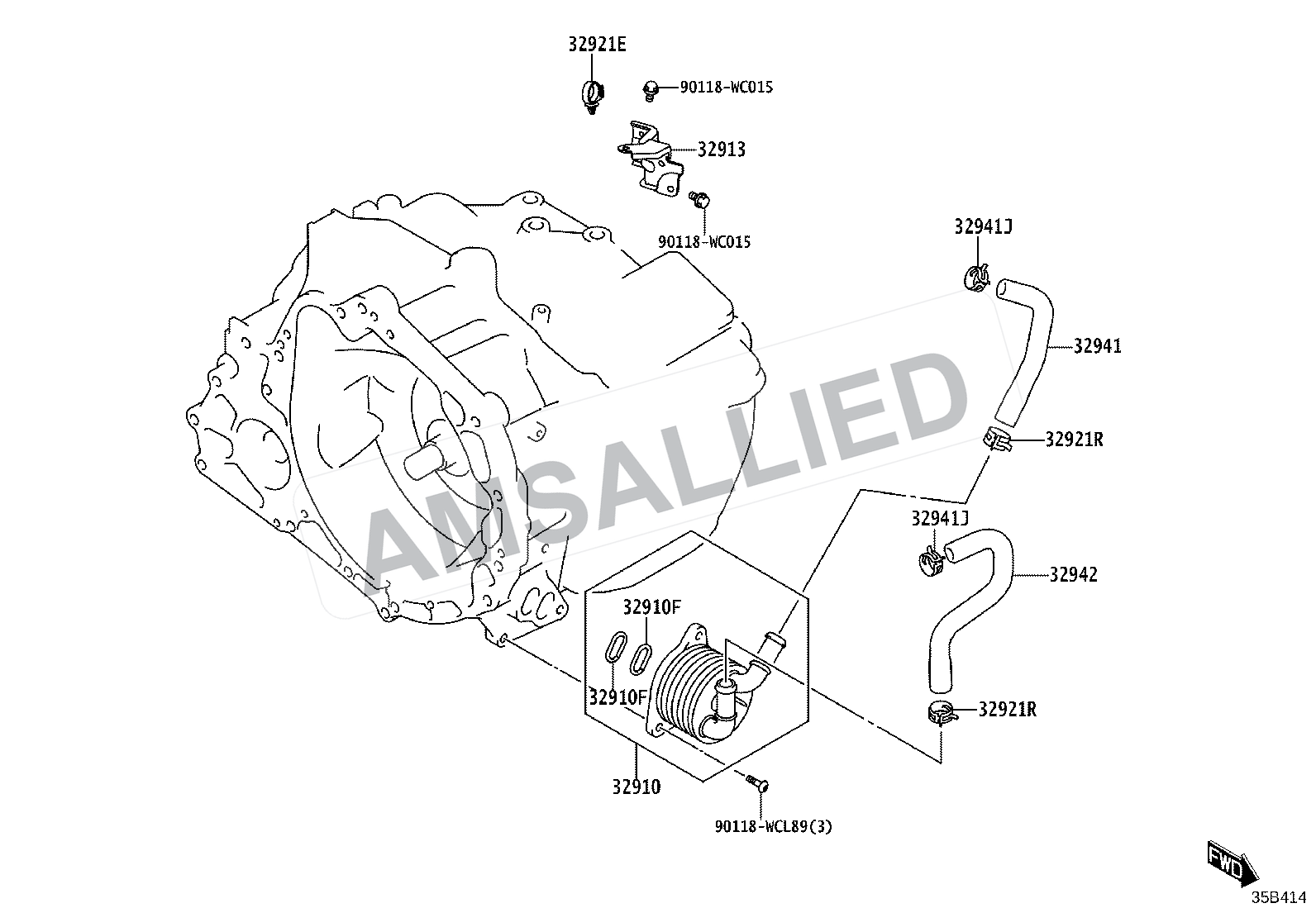

Toyota Rumion Oil Cooler & Tube (atm) exploded parts diagram, figure 3514 — AMS Allied watermarked Toyota Rumion reference diagram.

Part numbers in this diagram

10 parts

Cooler Assy, Oil

PNC 32910

Bracket, Oil Cooler

PNC 32913

Clamp, Hose(for Oil Cooler)

PNC 32921E

Hose, Oil Cooler Inlet, No.1

PNC 32941

Hose, Oil Cooler Outlet, No.1

PNC 32942

Clip, No.1(for Oil Cooler Hose)

PNC 32941J

Clip, No.2(for Oil Cooler Hose)

PNC 32921R

Ring, O(for Oil Cooler)

PNC 32910F

Diagram Hardware / Fastener

PNC 90118WCL89

Diagram Hardware / Fastener

PNC 90118WC015
